Control 4 SR-250 Setup Manual

Use and Features

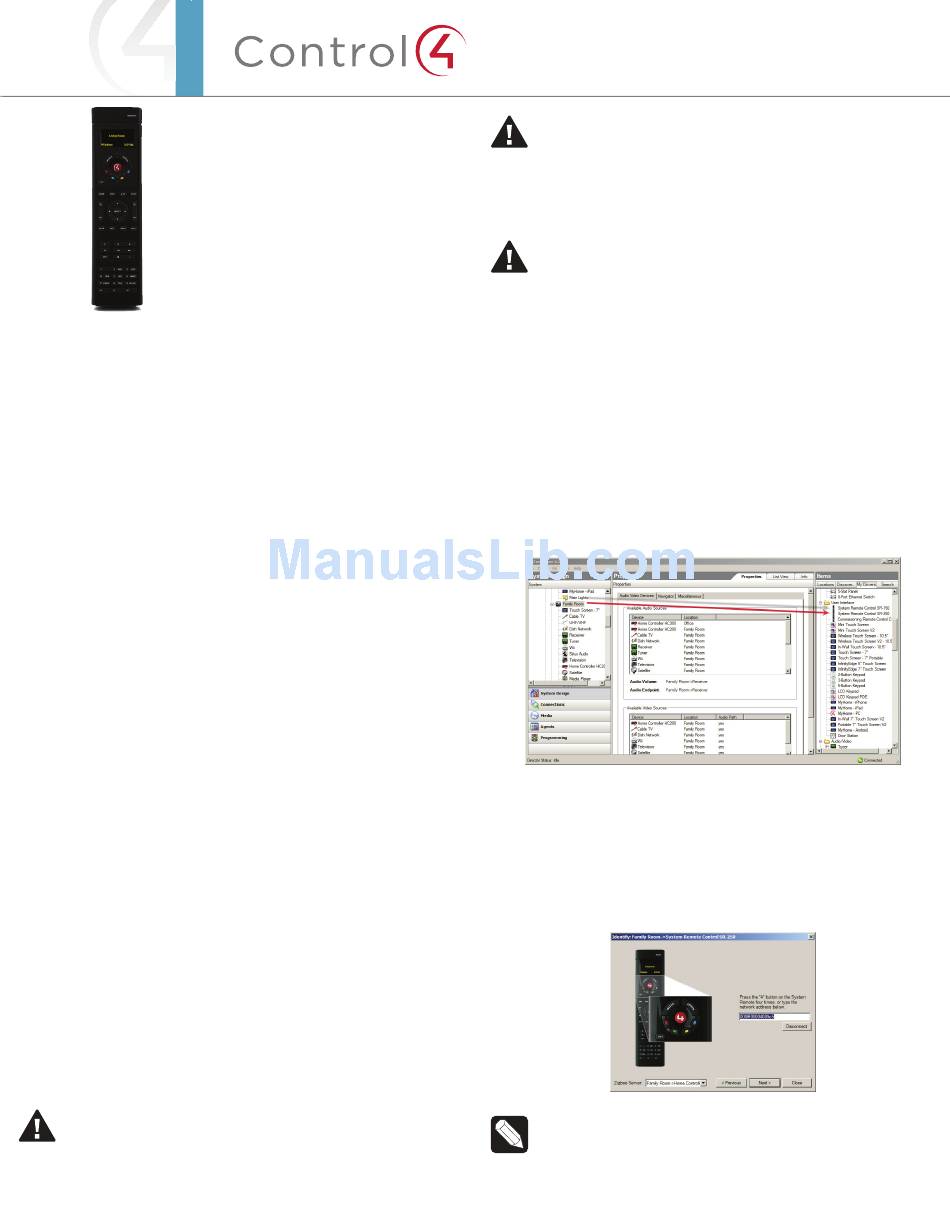

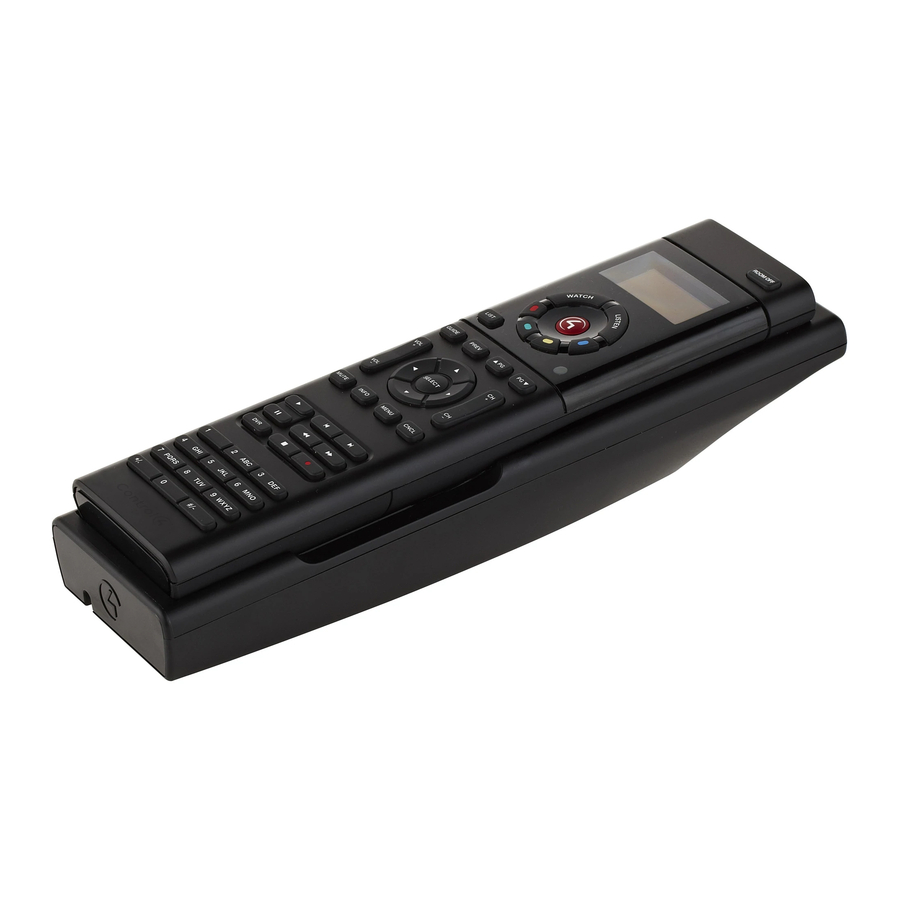

Control4 System Remote Control SR-250 (Model C4-SR250B-Z-B) is intended for
use in a Control4® system with OS 2.0 and later. It is included with the purchase
of select Control4 Controllers, but may also be purchased separately. This System
Remote Control can be used to:
• Navigate system menus and access media databases on a television or
monitor
• Navigate system menus and access media databases in its own display
window
• Control system devices
This System Remote Control goes beyond a typical "universal" remote that simply
learns IR codes from TVs, VCRs, CD players, and DVD players. This device features:
•
Bi-directional communication with system components
•
ZigBee wireless mesh networking
•
Full access to system components
•
Back-lighting on keys and display for ease of use in dark rooms
•
Ambient light sensor for efficient control of backlighting
•
Quick-access buttons to select recently used audio and video devices
•
Programmable buttons
•
Paging functionality
•
Standard control features for: Digital Satellite Systems (DSS), cable boxes, TV
tuners, Digital Video Recorders (DVR), DVD changers/players, CD changers/
players, MP3 players, VCRs, or TVs.
•
Powered by four (4) AA batteries (included)
Install and Maintain the Batteries
Install the Batteries
Install the four (4) AA batteries (included) into the back of the SR-250. Insert them
according to the diagram provided in the battery compartment (with the + and -
terminals aligned correctly).
Battery Use and Care Tips
• Keep the battery contacts and compartment clean.
• Remove the batteries from the product if it is not going to be used for
several months.
• Extreme temperatures reduce battery performance. Avoid putting the SR-250
in very warm places.
Battery Replacement Safety Rules
WARNING! To prevent a battery short, leakage or rupture:
• Use typical AA Alkaline batteries only.
• Do not mix battery types, such as Alkaline and rechargeable
NiMH batteries.
• Do not attempt to recharge a battery unless the battery is specifically
marked "rechargeable."
• Never dispose of batteries in a fire.
System Remote
Control SR-250
Setup Guide
™
ATTENTION!
Pour empêcher court-circuiter, fuite ou rupture de batterie:
Utilisez les accumulateurs alcalins typiques d'AA seulement.
• Ne mélangez pas les types de batterie, tels que les batteries alkalines
et rechargeables de NiMH.
• N'essayez pas de recharger une batterie à moins que la batterie soit
spécifiquement marqué « rechargeable ».
• Ne vous débarassez jamais des batteries dans un feu.
VORSICHT! Das Batteriekurzschluß, -durchsickern oder -abbruch
verhindern:
• Benutzen Sie AA alkalische Batterien nur im Schalter.
• Mischen Sie nicht Batteriearten, wie alkalische und nachladbare NiMH
Batterien.
• Versuchen Sie nicht, eine Batterie neuzuladen, es sei denn die Batterie
ist spezifisch gekennzeichnetes „nachladbares."
• Entledigen Sie nie sich Batterien in einem Feuer.
Configure the Remote Control
1 Start Composer Pro and connect to a Director.
2 In the System Design view (selected by default), select the room where the
System Remote Control will reside.
3 In the My Drivers tab, locate the System Remote Control SR-250 in the User
Interface section (Figure 1).
Figure 1. Select the SR-250 driver
4 Double-click the SR-250 to add the device to the project tree.
5 Identify the SR-250:
• In the Connections view, click the Network tab.
• Select the System Remote Control SR-250 in the center pane.
• Click Identify (or right-click and choose Identify).
• When prompted to do so, press the red 4 button four (4) times to identify the
device to the Control4 system (Figure 2).
Figure 2. Identify the SR-250
NOTE:
To complete the identification process, the SR-250 must be on
the same ZigBee channel as the controller, and the controller must have
Zserver enabled. If you need to change the ZigBee channel on the SR-250,
see Step 7.
• When the MAC address appears in the window, click Close.
