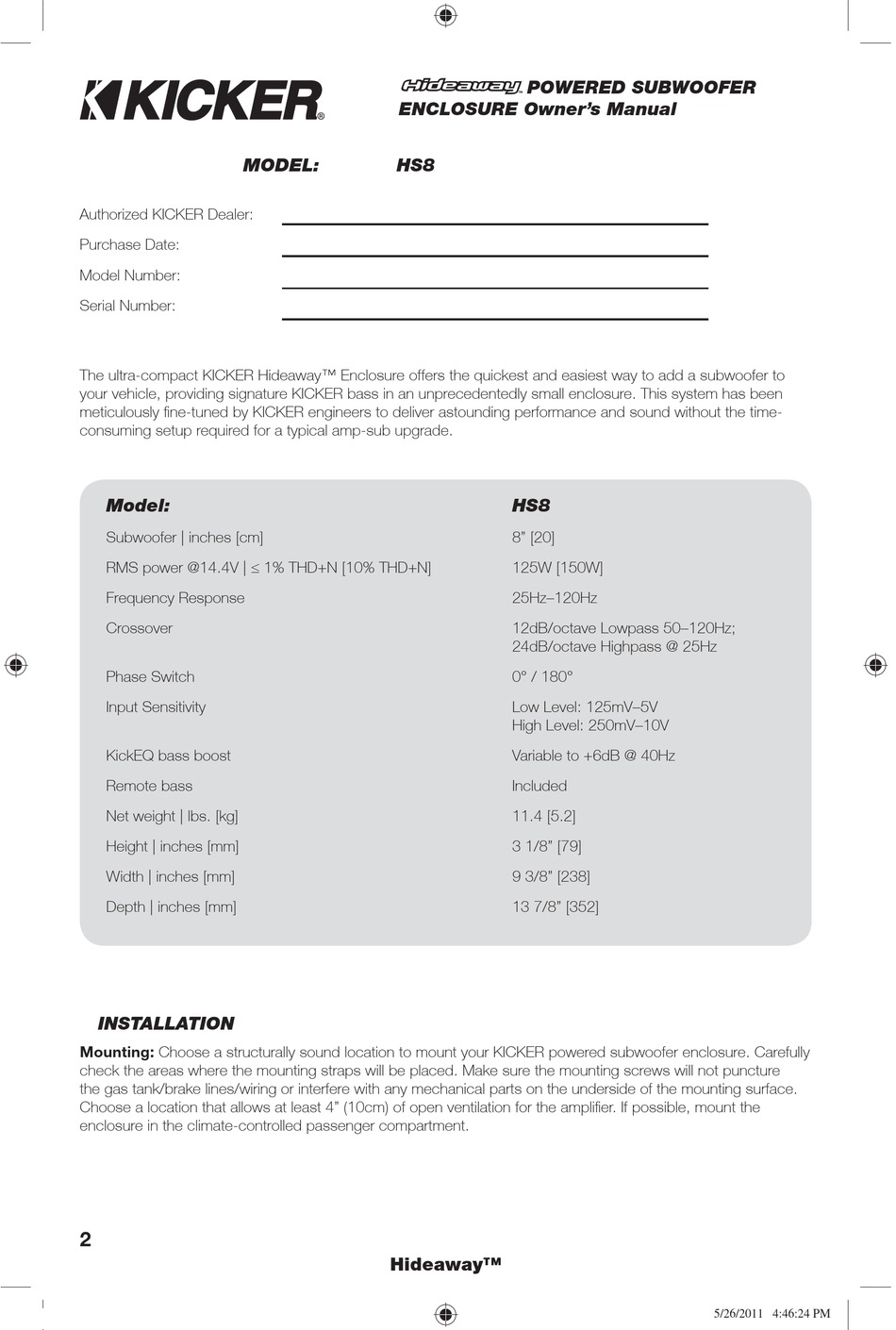

Specifications; Installation; Powered Subwoofer - Kicker Hideaway HS8 Owner's Manual

Authorized KICKER Dealer:
Purchase Date:
Model Number:
Serial Number:
The ultra-compact KICKER Hideaway™ Enclosure offers the quickest and easiest way to add a subwoofer to
your vehicle, providing signature KICKER bass in an unprecedentedly small enclosure. This system has been
meticulously fi ne-tuned by KICKER engineers to deliver astounding performance and sound without the time-
consuming setup required for a typical amp-sub upgrade.
Model:
Subwoofer | inches [cm]
RMS power @14.4V |  1% THD+N [10% THD+N]
Frequency Response
Crossover
Phase Switch
Input Sensitivity
KickEQ bass boost
Remote bass
Net weight | lbs. [kg]
Height | inches [mm]
Width | inches [mm]
Depth | inches [mm]

INSTALLATION

Mounting: Choose a structurally sound location to mount your KICKER powered subwoofer enclosure. Carefully
check the areas where the mounting straps will be placed. Make sure the mounting screws will not puncture
the gas tank/brake lines/wiring or interfere with any mechanical parts on the underside of the mounting surface.
Choose a location that allows at least 4" (10cm) of open ventilation for the amplifi er. If possible, mount the
enclosure in the climate-controlled passenger compartment.
2
2011 Hideaway Rev M.indd 2 2011 Hideaway Rev M.indd 2
ENCLOSURE Owner's Manual
MODEL: HS8
Hideaway™

POWERED SUBWOOFER

HS8
8" [20]
125W [150W]
25Hz–120Hz
12dB/octave Lowpass 50–120Hz;
24dB/octave Highpass @ 25Hz
0° / 180°
Low Level: 125mV–5V
High Level: 250mV–10V
Variable to +6dB @ 40Hz
Included
11.4 [5.2]
3 1/8" [79]
9 3/8" [238]
13 7/8" [352]
