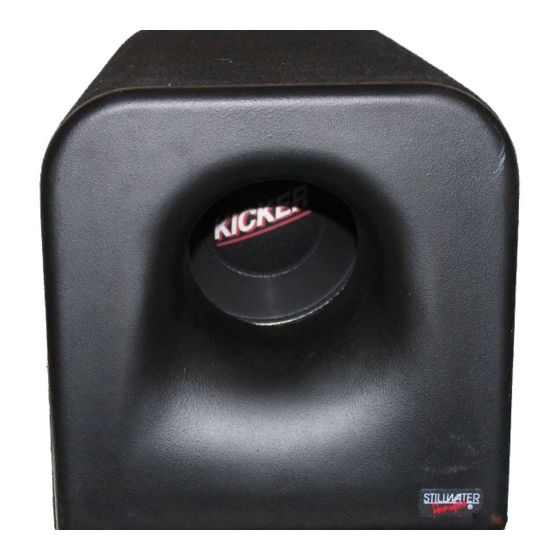

Substation Enclosure System
Congratulations! You have just purchased the latest in single-reflex bandpass
enclosures to carry the famous KICKER name. Your KICKER speakers were designed
and engineered by the same team which created many other international
award winning KICKER components like the Solo-Baric , Comp VR, and
Resolution drivers. They contain a number of cutting-edge features to give you
outstanding performance and dependability. Thanks for buying KICKER. Enjoy!
General Installation Information
The position of your KICKER Substation will affect the quality and amount of the
bass it reproduces. Experimentation will allow you to choose what sounds best in your
vehicle.
The ideal situation is to mount the Substation with the ported end about four inch-
es from the rear corner of your trunk or hatchback area. This will add the "boundary
loading effect", which boosts bass output at the lower frequencies. See diagram 1.
After determining the best location for your Substation by trial fitting and listening,
find the best placement for the mounting brackets. Each bracket must be positioned
so that the rounded end protrudes from the cabinet by about 3/4 inch. These brack-
ets and screws will be used to attach the cabinet firmly to the vehicle. See diagram 2.
If the enclosed brackets are not applicable to your installation, some other means
must be utilized to secure the cabinet to the vehicle.
For optimum sound quality, the KSR100 should be used with some form of low pass
crossover. The best crossover is an electronic crossover used before a dedicated sub-
woofer amplifier. If it is necessary to use passive crossovers, a 6mH coil wired in series
with the Substation will help reduce unwanted out of band frequencies. When wiring
the substation to your amplifier, connect the positive output to the red input terminal
and connect the negative output to the black terminal. The KSR100 Substation pro-
vides a 4 Ohm load to the amplifier.
Hatchback or Sedan Trunk mounting
At Least 4 "
A
At Least 4 "
B
Mounting Options
Model
KSR100
∗Assumes typical music program with minimal amplifier clipping. .
KSR100
Diagram 1
At Least 4 "
Back
A
At Least 4 "
B
Front
Specifications
Frequency
Response
39-130Hz
Smaller Screws
Attaches To Enclosure
Maximum
Amplifier Power
200 Watts RMS
Diagram 2
Larger Screw
Attaches To Vehicle
Impedance
4Ω
