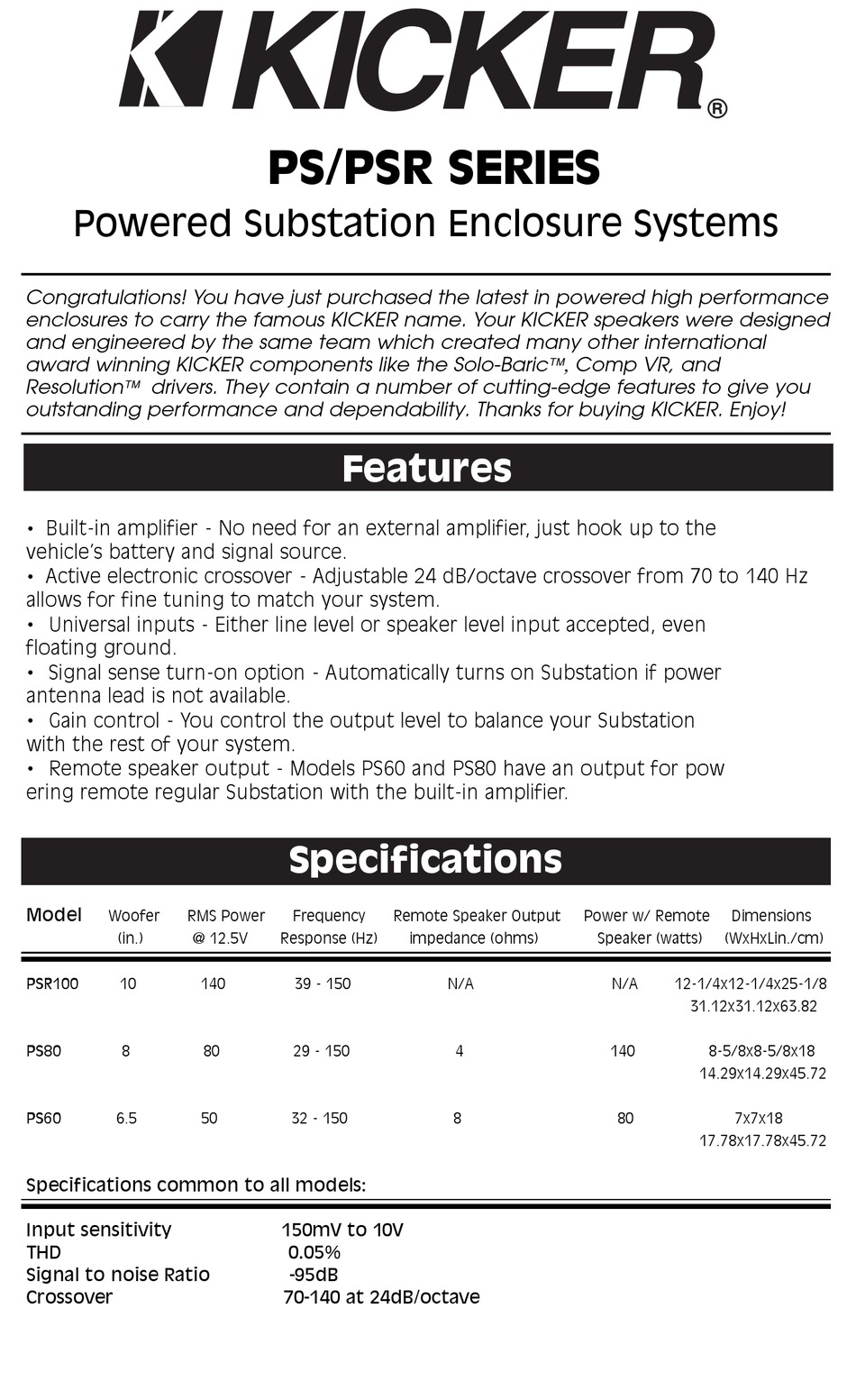

Kicker PS Manual

Powered Substation Enclosure Systems
Congratulations! You have just purchased the latest in powered high performance
enclosures to carry the famous KICKER name. Your KICKER speakers were designed
and engineered by the same team which created many other international
award winning KICKER components like the Solo-Baric , Comp VR, and
Resolution  drivers. They contain a number of cutting-edge features to give you
outstanding performance and dependability. Thanks for buying KICKER. Enjoy!
Built-in amplifier - No need for an external amplifier, just hook up to the
vehicle's battery and signal source.
Active electronic crossover - Adjustable 24 dB/octave crossover from 70 to 140 Hz
allows for fine tuning to match your system.
Universal inputs - Either line level or speaker level input accepted, even
floating ground.
Signal sense turn-on option - Automatically turns on Substation if power
antenna lead is not available.
Gain control - You control the output level to balance your Substation
with the rest of your system.
Remote speaker output - Models PS60 and PS80 have an output for pow
ering remote regular Substation with the built-in amplifier.
Model
Woofer
(in.)
PSR100
10
PS80
8
PS60
6.5
Specifications common to all models:
Input sensitivity
THD
Signal to noise Ratio
Crossover
PS/PSR SERIES
Features
Specifications
RMS Power Frequency
@ 12.5V Response (Hz)
140 39 - 150
80 29 - 150
50 32 - 150
150mV to 10V
0.05%
-95dB
70-140 at 24dB/octave
Remote Speaker Output
impedance (ohms)
N/A
4
8
Power w/ Remote Dimensions
Speaker (watts) (WxHxLin./cm)
N/A 12-1/4x12-1/4x25-1/8
31.12x31.12x63.82
140 8-5/8x8-5/8x18
14.29x14.29x45.72
80 7x7x18
17.78x17.78x45.72
