Kenmore 22-13292 Specifications

Ultra wash dishwasher with smartwash technology.
Hide thumbs

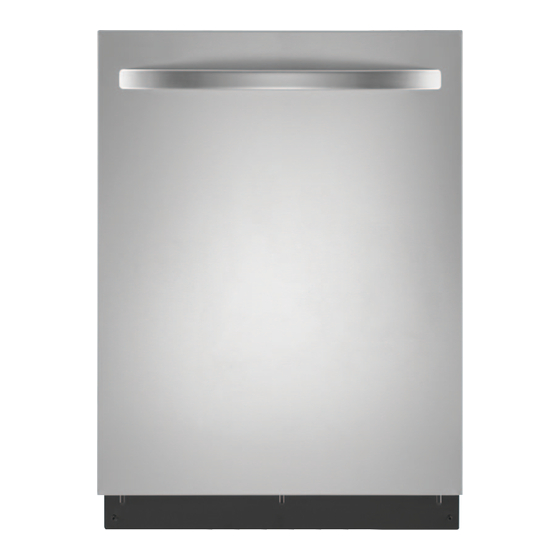

Kenmore Ultra Wash
Dishwasher with SmartWash
®
White 22-13292
Stainless 22-13293
Black 22-13299
• Hidden control styling
• Tall Tub design with stainless steel interior
• Ultra Wash
performance with optical soil sensor and automatic
®
temperature control (ATC)
• SmartWash
cycle
• QuietGuard
Deluxe sound insulation (51 dBA)
• Sani Rinse option virtually eliminates bacteria (NSF
• 4 hour delay start option
• Nylon racks
*
NSF / ANSI 184 Residential Dishwashers. Certified residential
dishwashers are not intended for licensed food establishments.
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner's manual or visit www.managemylife.com.
Technology
Certified.)
*
®
22-13292/3/9
SELECTION
White
Stainless
Black
STYLING
Controls
Tub Design
Towerless Design
Smooth Touch Electronic Controls
Start Button Memory
WASH SYSTEM
Ultra Wash
Performance
®
Filtration System
CYCLES / OPTIONS
SmartWash
/ SmartWash
HE
Hi-Temp Wash Option
Pots and Pans
Normal Wash
China / Gentle Wash
Fast Wash / 1 Hour Wash
Quick Rinse
Hi-Temp Rinse
Delay Start
Sanitize Rinse Option / Steam Sanitize
Heated Dry / Air Dry
Cancel and Drain
INTERIOR FEATURES
Stainless Steel Interior
Adjustable Upper Rack
Rack Material
Silverware Basket (Lower Rack)
No-Flip Clips
GENERAL FEATURES
Sound Insulation
QuietGuard
True-Hold
Door System
Detergent Dispenser
Rinse Aid Dispenser with Indicator
Drying System
Side Mountable
Amperage Rating (120V / 60Hz)
Circuit Breaker Size**
ENERGY STAR
Qualified
®
††
CEE Rating
Est. Yearly Energy Consumption
Est. Yearly Operating Cost
Elec. / Gas Water Heater
Item Weight (Approx. Lbs.)
Shipping Weight (Approx. Lbs.)
WARRANTY
1-Year Limited Warranty –
Entire Appliance
If used for other than private family purposes, warranty applies for only 90 days.
ATC = Automatic Temperature Control
**20 amps required if disposer is on the same circuit.
† Based on four wash loads a week and a 2007 U.S. Government national average cost of
$.1065 per kWh for electric and $1.218 per therm for natural gas. Your actual operating
cost will vary depending on your local utility rates and your use of the product.
†† The CEE Tier system is based on the Consortium for Energy Efficiency qualified product
listings.
Page 1 of 2
KENMORE
22-13292
22-13293
22-13299
Hidden Electronic
Tall Tub
UltraSpace
with Lockout
Optical Soil Sensor + ATC
6 / 5
4 Hour
NSF
Certified
®
Premium Adjusters
Nylon
with 2 Covers
2
Deluxe (51 dBA)
Active Vent
Kit Included
9.6
15
Tier 2
253 kWh / yr.
$27 / $22
80
92
Parts & Labor
22-1329X.PDF
Effective 10/10/11
