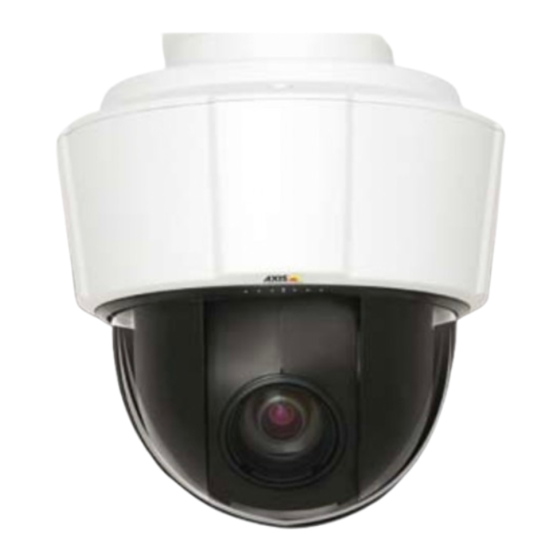

Axis P5534 User Manual

Ptz dome network camera
Hide thumbs Also See for P5534:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
USER MANUAL
AXIS P5534 PTZ Dome Network Camera

Advertisement

Table of Contents
loading

Related Manuals for Axis P5534

Summary of Contents for Axis P5534

  • Page 1 USER MANUAL AXIS P5534 PTZ Dome Network Camera...
  • Page 2 About this document This manual is intended for administrators and users of the AXIS P5534 Depending on the characteristics of the electrical environment, using Network Camera, and is applicable to firmware 5.40 and later. It shielded cables (STP) may be appropriate, in which case the following...

  • Page 3: Table Of Contents

    AXIS Media Control (AMC) ........
  • Page 4 AXIS P5534 PTZ Dome Network Camera Table of Contents Symptoms, possible causes and remedial actions ..... . Technical Specifications ........

  • Page 5: Hardware Overview

    > System Options > Storage > SD Card and click Unmount. Control button - The control button is used for: • Connecting to an AXIS Video Hosting System service. See page 40. To connect, press and hold the button for about 1 second until the Status LED flashes green.

  • Page 6: Led Indicators

    • Input/Output (I/O) devices • AC/DC power supply When connecting external equipment, a multi-connector cable (available from Axis) is required in order to maintain the product’s IP rating, see Multi-Connector Cable (sold separately), on page 47. LED indicators Color Indication...

  • Page 7: Accessing The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For more information on how to discover and assign an IP address, refer to the Installation Guide.

  • Page 8: Access From The Internet

    Set the root password To gain access to the Axis product, you must set the password for the default administrator user root. This is done in the Configure Root Password dialog, which appears when the product is accessed for the first time.
  • Page 9 Gatekeeper. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC), on page 12 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.

  • Page 10: Ptz Controls

    AXIS P5534 PTZ Dome Network Camera Accessing the product AMC Audio controls AMC audio buttons control the speakers and microphone connected to the client computer. The buttons are only visible when audio is enabled. Speaker button — Click to turn the speakers on or off.
  • Page 11 AXIS P5534 PTZ Dome Network Camera Accessing the product Pan and Tilt bars – Use the arrows to pan and tilt the camera view, or click on a position on the bar to steer the camera view to that position.

  • Page 12: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 13: Alternative Methods Of Accessing The Video Stream

    AXIS P5534 PTZ Dome Network Camera Media streams The AMC Control Panel can be used to configure various video and audio settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...

  • Page 14: Accessing Audio Streams

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime adds latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 15: Setting Up The Product

    Setting up the product Setting up the product The Axis product can be configured by users with administrator or operator rights. Click Setup in the top right-hand corner of the Live View page. Administrators have unrestricted access to all settings.

  • Page 16: Video And Audio

    AXIS P5534 PTZ Dome Network Camera Video and Audio Video and Audio The video and audio settings can be used to optimize video and audio quality. You can configure the following: • Video stream settings. See page 16. • Stream profiles. See page 17.

  • Page 17: Stream Profiles

    To select the default stream profile go to Live View Config > Stream Profile and choose the profile from the drop-down list. For more information see the online help on this page. Camera Settings The Video & Audio > Camera Settings page provides access to advanced image settings for the Axis product.

  • Page 18: Image Appearance

    White balance White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Page 19: Overlay

    An overlay image can be used to provide extra information, or to mask a part of the video image. To use your own image, such as a logo, first upload the image to the Axis product. Go to Video & Audio > Overlay Image, click Browse to locate the file and then click Upload.

  • Page 20: Audio Input

    (see AXIS Media Control on page 12). Simplex - speaker only - Audio is transmitted from the client to the Axis product and played by the speaker connected to the product. To send audio, the Talk and Microphone buttons in the AMC toolbar must both be enabled. Click either button to stop audio transmission.

  • Page 21: Audio Output

    Configure the audio output settings under Video & Audio > Audio Settings. Note A multi-connector cable (available from Axis; Multi-Connector Cable (sold separately)) is required when connecting external audio equipment to the Axis product. Output gain - Control the volume (dB Full Scale) of the line audio output. If the sound is too low, choose a higher dB. If the sound is too high, choose a lower dB.

  • Page 22: Live View Config

    AXIS P5534 PTZ Dome Network Camera Live View Config Live View Config You can customize the Live View page and alter it to suit your requirements. It is possible to define the following features of the Live View page. •...
  • Page 23 Output Buttons An output on the Axis product can be controlled directly from the Live View page, by enabling the display of output buttons. To display the output buttons in the Live View page, select the type of control to use for the port from the drop-down list under Live View Config >...
  • Page 24 AXIS P5534 PTZ Dome Network Camera Live View Config Note A multi-connector cable (available from Axis) is required when connecting external I/O devices to the Axis product. See Multi-Connector Cable (sold separately), on page 47...

  • Page 25: Ptz (Pan Tilt Zoom)

    AXIS P5534 PTZ Dome Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) Preset Positions A preset position is a predefined view that can be used to quickly steer the camera to a specific location. Preset positions can be accessed in several ways: •...

  • Page 26: Guard Tour

    Axis product. Each OSDI zone is set up with coordinates and a descriptive name. OSDI zones are set up under PTZ > OSDI Zones. The Axis product uses the coordinates of the center of the view to set the lower left and upper right zone areas.

  • Page 27: Control Queue

    60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events, on page 31). The event will immediately be placed first in the queue except when an administrator is in control.

  • Page 28: Detectors

    AXIS P5534 PTZ Dome Network Camera Detectors Detectors Motion Detection Motion detection is used to generate an alarm whenever movement occurs (or stops) in the view. Up to 10 Include and Exclude windows can be configured: Include windows — target specific areas within the whole video image •...

  • Page 29: Audio Detection

    Audio detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Page 30: Applications

    Internet, Automatic Installation appears in the web page. If the product is not connected to the Internet, go to www.axis.com/applications to acquire a License key. You will need a license code and the product’s serial number (found on the label and under System Options >...

  • Page 31: Events

    Events The Axis product can be configured to perform actions when different events occur, for example, start a recording when motion is detected. The set of conditions that defines how and when the action is triggered is called an Action Rule.

  • Page 32: Convert Event Types To Action Rules

    Convert Event Types to Action Rules If the Axis product is upgraded to firmware version 5.40 or later, it is recommended to convert Event Types to Action Rules. The legacy user Event Types in the camera will continue to work but will not be visible in the user interface of the camera. The Event Types need to be converted to Action rules to become visible in the user interface.

  • Page 33: Recipients

    AXIS P5534 PTZ Dome Network Camera Events 8. Select Network Share from the Storage drop-down list. To add additional criteria, select the Additional conditions option and add additional triggers. To prevent an action from being triggered repeatedly, a Wait at least time can be set. Enter the time in hours, minutes and seconds, during which the trigger should be ignored before the action rule can be activated again.

  • Page 34: Recurrences

    AXIS P5534 PTZ Dome Network Camera Events Recurrences Recurrences are used to trigger Action Rules repeatedly, for example every 5 minutes or every hour. To set up a recurrence: 1. Go to Events > Recurrences and click Add. 2. Enter a descriptive name and recurrence pattern.

  • Page 35: Recording List

    Continuous recording The Axis product can be configured to continuously save video to a storage device. See Storage, on page 43 for more information about storage devices. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings see .
  • Page 36 AXIS P5534 PTZ Dome Network Camera Recordings Note If a new stream profile is selected while a recording is ongoing, the recording will be stopped and saved in the recording list and a new recording with the new stream profile will start. All previous continuous recordings will remain in the recording...

  • Page 37: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.

  • Page 38: Date & Time

    Check the box to enable the IEEE 802.1X protocol. Audio Support Select Enable audio support to allow clients to retrieve audio streams from the Axis product. For information on how to configure audio settings, see Audio Settings, on page 19.

  • Page 39: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 40 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 41 This function can be disabled under System Options > Network > TCP/IP > Advanced. HTTP The HTTP port used by the Axis product can be changed under System Options > Network > TCP/IP > Advanced. In addition to the default setting, which is 80, any port in the range 1024–65535 can be used.
  • Page 42 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be send to a destination outside the local network (for example the Internet).

  • Page 43: Storage

    To use SNMP v3, HTTPS must be enabled, see HTTPS, on page 37. To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to factory default settings, on page 46. UPnP The Axis product includes support for UPnP .

  • Page 44: Ports & Devices

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 45: Support

    Click Default to reset all settings, including the IP address, to the factory default values. This button should be used with caution. The Axis product can also be reset to factory default using the control button, see Reset to factory default settings, on page 46.

  • Page 46: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example web pages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 47: Multi-Connector Cable (Sold Separately)

    Multi-Connector Cable (sold separately) Multi-Connector Cable (sold separately) When connecting external equipment to the Axis product, a multi-connector cable (available from Axis) is required in order to maintain the product’s IP rating. The multi-connector cable can be purchased from your Axis reseller.
  • Page 48 AXIS P5534 PTZ Dome Network Camera Multi-Connector Cable (sold separately) Connection diagram: 3.3 V max 250 mA I/O configured as input I/O configured as output DC power input AC power input I/O connector...

  • Page 49: Troubleshooting

    Always read the upgrade instructions and release notes available with each new release, before upgrading the firmware. To upgrade, follow these instructions: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2.

  • Page 50: Symptoms, Possible Causes And Remedial Actions

    Identify the product using its model or serial number. Move the Axis product to an isolated network, or to one with no DHCP or BOOTP server. Set the IP address again, using AXIS IP Utility or ARP/Ping (see the Installation Guide). Open the Setup pages and disabled DHCP in the TCP/IP settings.

  • Page 51: Performance Considerations

    The product is accessible locally but not externally Router configuration To configure your router to allow incoming data traffic to the Axis product, enable the NAT-traversal feature which will attempt to automatically configure the router to allow access to the Axis product, see NAT traversal (port mapping) for IPv4, on page 41.
  • Page 52 Also, make sure that AXIS Media Control is installed on your computer. only) Installation of additional Configure the Axis product to use a Java applet for updating video images in Internet Explorer. Go to Setup > Live View Config and select Java applet under Default viewer. ActiveX component...
  • Page 53 AXIS P5534 PTZ Dome Network Camera Troubleshooting No audio Incorrect setup Check the sound card in the computer. Ensure that mute is not selected and that the volume settings are correct. Check that Enable audio support is selected under Setup > System Options > Security > Audio...
  • Page 54 Technical Specifications Item Specifications Function/group Model Camera AXIS P5534 50 Hz, AXIS 5534 60 Hz Image sensor Progressive scan CCD 1/3” Lens f=4.7 – 84.6 mm, F1.6 – 2.8, autofocus, automatic day/night Horizontal angle of view: 55.2° - 3.2° Minimum Color: 0.74 lux at 30 IRE F1.6...
  • Page 55 Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W 20-24 V AC, max. 23.6 VA 24-34 V DC, max. 17 W AXIS T8123 High PoE Midspan 1-port: 100-240 V AC, max. 37 W Connectors RJ-45 for 10BASE-T/100BASE-TX PoE Multi-connector (cable not included) for: power in, 4 configurable alarm inputs and outputs, mic in (max 74 mVpp), line mono...

  • Page 56: Performance Considerations

    Camera: 1.9 kg (4.2 lb.) Camera with drop-ceiling mount: 2.3 kg (5.1 lb.) Included AXIS T8123 High PoE Midspan 1-port, mounting kit for hard and drop ceilings, clear accessories and smoked dome cover, Installation Guide, CD with User Manual, recording software,...
  • Page 57 User Manual Ver. M1.12 AXIS P5534 PTZ Dome Network Camera Date: December 2011 Part No. 45175 © Axis Communications AB, 2011...
