Heath Zenith SL-5676 Installation Instructions Manual

Model SL-5676
READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National Electrical Code (Canadian Electrical Code in Canada) through
conduit or another acceptable means. Contact a qualifi ed electrician if there is any question as to the suitability of
the system.

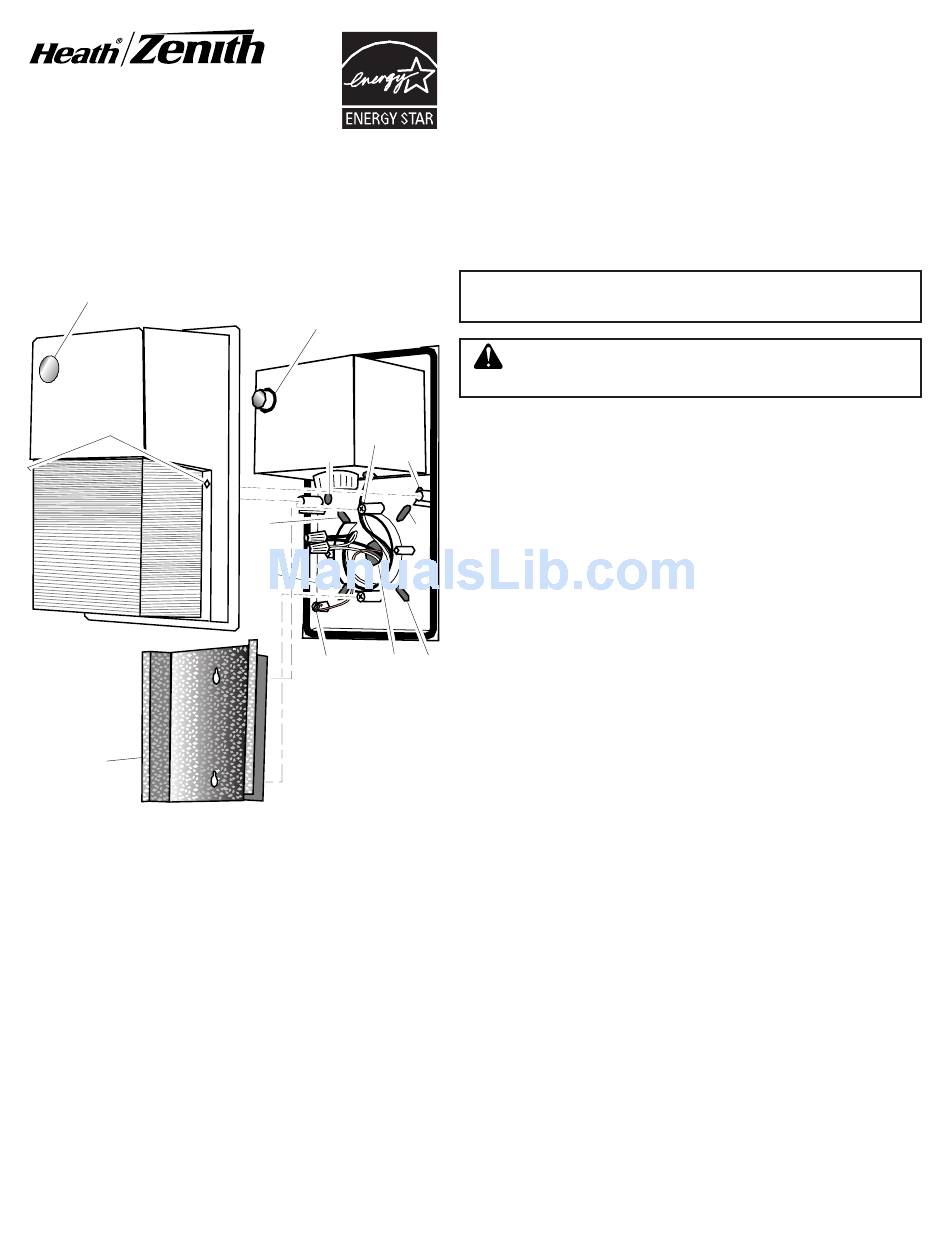

Photocontrol
Window
(A)
Refl ector
© 2007 HeathCo LLC
598-1222-02
Installation Instructions
Photocontrol
(B)
(C)
(C)
(E)
(F)
(F)
Ground (D)
(E)
Screw
High Pressure Sodium
Dusk-To-Dawn Security Light
Lamp in Fixture Contains Mercury. Dispose According
to Local, State, or Federal Laws.
WARNING: Turn power off at the fuse or circuit
breaker.
1. Select a location on a fl at wall with structurally sound wood. The
wood should be at least 3/4 inch thick to safely secure the fi xture.
2. Loosen the two screws (A) securing the front housing until the
screws turn easily. Remove the front housing.
3. Loosen screw (B) two turns. Slide the refl ector up until the keyholes
clear the screw heads and remove the refl ector.
If Mounting Directly to Wall
4. Knock out slugs at (C) and (D).
5. Attach cable clamp or fl exible conduit to hole (D). Thread the service
wires thru this hole.
6. Mount the fi xture with two 1/4 inch lag screws that will penetrate
the wood surface at least 3/4 inch.
Or, if Mounting to a 3-1/2" or 4" Electrical Box
4. Determine which pair of slots line up with the mounting holes on
your box, (E) or (F). Knock out the slugs that line up. Knock out
slug (D).
5. Thread the service wires thru hole (D).
6. Mount the fi xture to the box with screws of the proper size for your
box.
Wiring and Final Assembly
7. Connect the fi xture wires to the service wires (black to black and
white to white). Secure with wire nuts provided.
8. Secure the service ground wire under the head of the green ground
screw.
9. Make sure the wire nuts and wires are inside the circular wiring
compartment. Reinstall the refl ector and tighten screw (B).
10. Install ONLY a 70 watt H.P.S. type S62 lamp (provided).
11. Reinstall the front cover.
To test operation during daylight, cover the photocontrol window with
black tape. Turn on the power. The photocontrol has a time delay (up
to 2 minutes) before it will respond to light changes. The light will take
up to ten minutes to reach full brightness. Uncover the photocontrol and
your unit will operate automatically—on at dusk, off at dawn.
598-1222-02
