Chapter 2: Camera Configuration

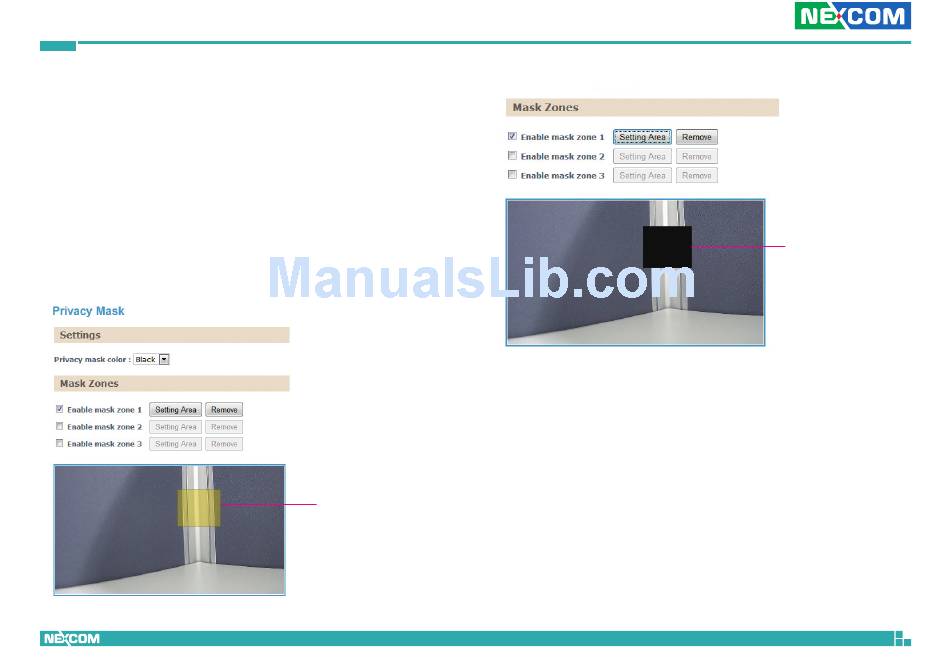

Mask Zones

You can configure up to 3 privacy masks, the instructions below illustrate
how to setup 3 privacy masks.
1. Select the color of the mask in the drop down list.
2. To create the first mask, check the Enable mask zone 1, and on the
live video screen below, select the area to mask by holding down the
mouse button and drag to make a rectangular square, release the
button once the desired area is covered.
3. Press the Setting Area button in Enable mask zone 1 to set this area
as mask.
4. You will see the selected area turn black or white, depending on which
color was chosen (This example uses black as the mask color).
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
5. To create the second and third mask, check the Enable mask zone 2
To delete a mask, check the zone number you like to remove, and press the
Remove button.
Rectangular
square
19
and Enable mask zone 3 options, then repeat steps 2 to 3 outlined
earlier.
Mask area
