Chapter 1: Product Introduction

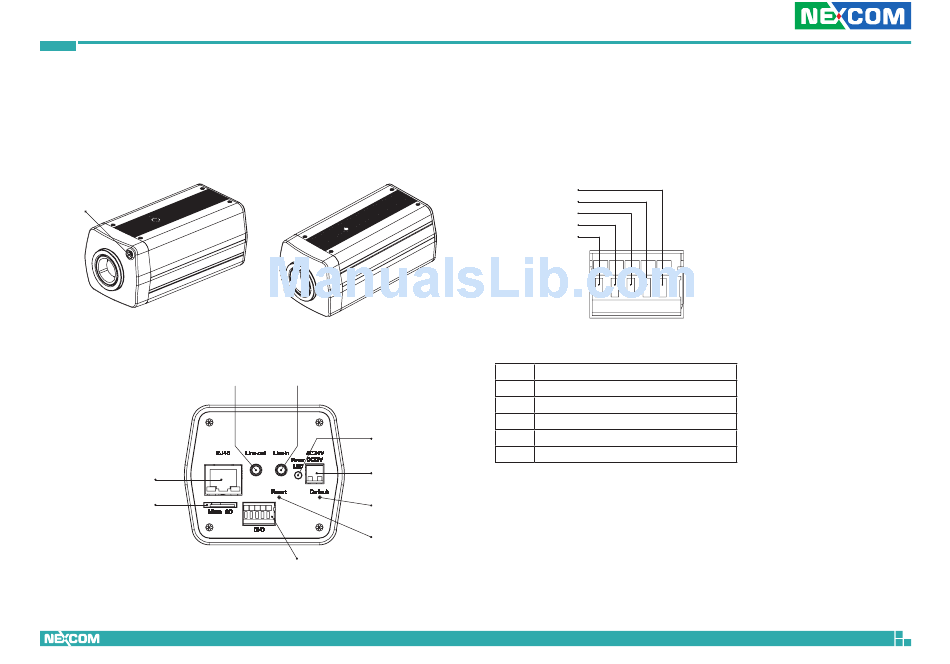

Physical Descriptions

Light sensor
Network connector (PoE)
Micro SD
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Line-out Line-in
Power LED
DC 12V/AC 24V
Default
Reset
DI/O

DI/O Pinout Assignment

Alarm-In +
Alarm-In -
Alarm-Out_Nc
Alarm-Out_Com
Alarm-Out_No
5 4 3 2
Pin Description
1 Alarm-In +
2 Alarm-In -
3 Alarm-Out_Nc
4 Alarm-Out_Com
5 Alarm_Out_No
3
1
