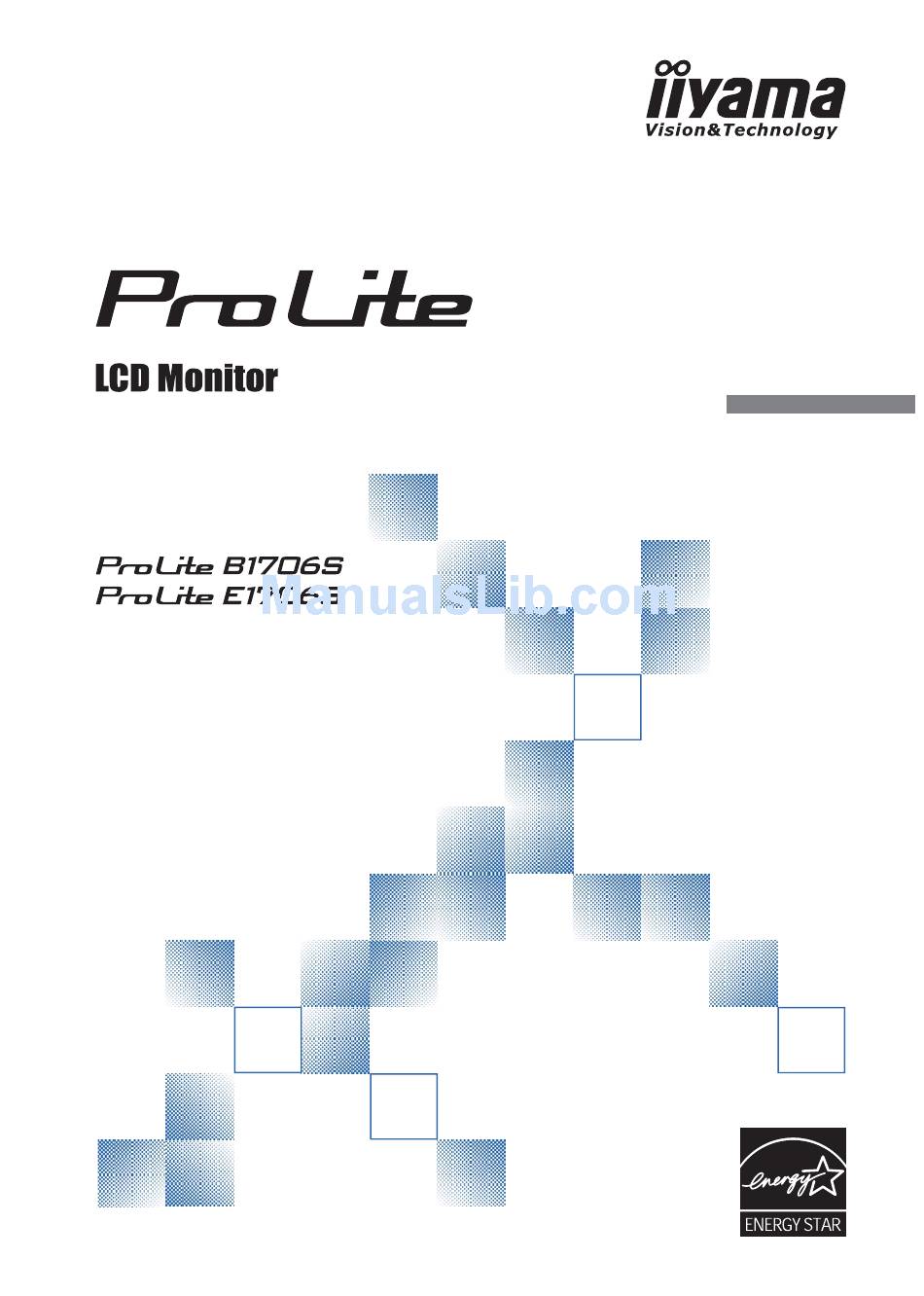

USER MANUAL

ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite B1706S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama ProLite B1706S

Summary of Contents for Iiyama ProLite B1706S

  • Page 1: User Manual

    USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
  • Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.

  • Page 4: Ce Marking Declaration Of Conformity

     We reserve the right to change specifi cations without notice.  All trademarks used in this user manual are the property of their respective owners. ® ®  As an ENERGY STAR Partner, iiyama has determined that this product meets the ENERGY STAR guidelines for energy effi ciency.

  • Page 5: Table Of Contents

    DIMENSIONS : ProLite B1706S..........28 DIMENSIONS : ProLite E1706S..........28 COMPLIANT TIMING ..............29 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.

  • Page 6: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 8: Special Notes On Lcd Monitors

    Power Switch for hours.  Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.

  • Page 9: Before You Operate The Monitor

    CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 10: Fitting And Removal Of Base : Prolite B1706S

    FITTING AND REMOVAL OF BASE : ProLite B1706S The monitor is supplied complete with a stand-base. If you prefer to wall mount the monitor, please follow the instructions below to remove the stand-base. Be sure to include the stand with the monitor if it is necessary to return the unit.

  • Page 11: Fitting And Removal Of Base : Prolite E1706S

    FITTING AND REMOVAL OF BASE : ProLite E1706S  Install the stand on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...

  • Page 12: Controls And Connectors : Prolite B1706S

    CONTROLS AND CONNECTORS : ProLite B1706S <Back> <Front> A Power Switch ( B Menu / Select Button (MENU) C + / Volume Button ( + ) D - / ECO Button ( - ) E Auto Button (AUTO) F Power Indicator...

  • Page 13: Controls And Connectors : Prolite E1706S

    CONTROLS AND CONNECTORS : ProLite E1706S <Back> <Front> A Power Switch ( B Menu / Select Button (MENU) C + / Volume Button ( + ) D - / ECO Button ( - ) E Auto Button (AUTO) F Power Indicator NOTE Blue: Normal operation...

  • Page 14: Connecting Your Monitor : Prolite B1706S

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 15: Connecting Your Monitor : Prolite E1706S

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 16: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 29: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite E1706S  For optimal viewing it is recommended to look at the full face of the monitor. ...

  • Page 17: Adjusting The Height And The Viewing Angle : Prolite B1706S

    ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B1706S  For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference.

  • Page 18: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 29. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 20 for SCREEN ADJUSTMENTS.

  • Page 19: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness Picture Mode Standard Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright Normal Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. Mode3 Brightness of back-light is reduced more than Mode2.
  • Page 20 Image Setup Image Setup Clock Only Analog Input Phase H.Position V.Position Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H. Position Too right Too low V.
  • Page 21 Color Temp. Color Temp. Gamma Mode1 Color Temp. Warm User-R User-G User-B Adjustment Item Problem / Option Button to Press Mode1 Normal Gamma Mode2 Dark Mode3 High contrast User-R Too weak User User-G Too strong User-B Color Temp. Cool Bluish white Normal Yellowish white Warm...
  • Page 22 OSD Setup OSD Setup H.Position V.Position Timeout Language English Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time Timeout between 5 and 60 seconds.
  • Page 23 Others Others Reset Signal Select Auto Information Resolution : 800(H) 600(V) H.Frequency : 38KHz V.Frequency : 60Hz Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. Auto Select the signal input automatically. Signal Select Direct D-sub Select the Analog input.
  • Page 24 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.  Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud ...

  • Page 25: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com).
  • Page 26 C Press the Auto Button. (Auto Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 27 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.  In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and NOTE G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.

  • Page 28: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.

  • Page 29: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 30: Recycling Information

     The Audio Cable is properly connected. H A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLESHOOTING / Recycling information 25...

  • Page 31: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite B1706S Size Category 17" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V Brightness 250cd/m...

  • Page 32: Specifications : Prolite E1706S

    SPECIFICATIONS : ProLite E1706S Size Category 17" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), ACR Function Available Viewable angle Right / Left : 85 degrees each, Up / Down: 80 degrees each (Typical) Response time 5ms (Black, White, Black)

  • Page 33: Dimensions : Prolite B1706S

    DIMENSIONS : ProLite B1706S 371.5mm/14.6" 339.5mm/13.4" 59.0mm/2.3" ( ): Maximum adjustment range DIMENSIONS : ProLite E1706S 371.5mm/14.6" 59.0mm/2.3" 339.5mm/13.4" 28 APPENDIX...

  • Page 34: Compliant Timing

    COMPLIANT TIMING Vertical Dot Clock Horizontal Video Mode Frequency Frequency 59.940Hz 25.175MHz 31.469kHz 31.500MHz 75.000Hz 37.500kHz 640 × 480 72.809Hz 31.500MHz 37.861kHz 56.250Hz 36.000MHz 35.156kHz 60.317Hz 40.000MHz 37.879kHz SVGA 800 × 600 75.000Hz 49.500MHz 46.875kHz VESA 50.000MHz 72.188Hz 48.077kHz 60.004Hz 65.000MHz 48.363kHz 1024 ×...
