- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL1780 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE : ProLite B1780SD ....6 FITTING AND REMOVAL OF BASE : ProLite E1780SD ....7 CONTROLS AND CONNECTORS : ProLite B1780SD ....8 CONTROLS AND CONNECTORS : ProLite E1780SD ....9... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -

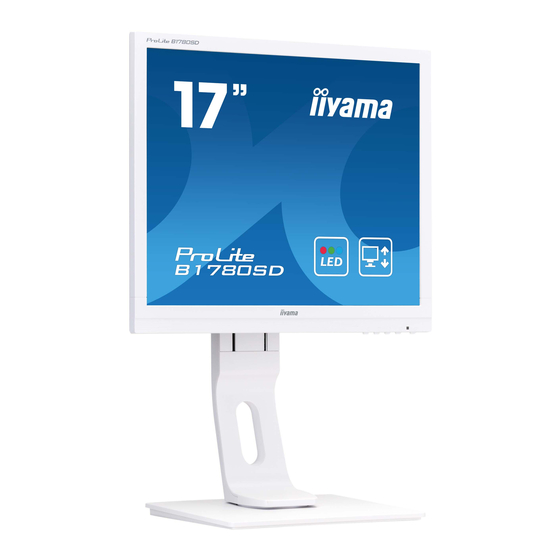

Page 10: Fitting And Removal Of Base : Prolite B1780Sd
FITTING AND REMOVAL OF BASE : ProLite B1780SD Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Fitting And Removal Of Base : Prolite E1780Sd
FITTING AND REMOVAL OF BASE : ProLite E1780SD Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors : Prolite B1780Sd
CONTROLS AND CONNECTORS : ProLite B1780SD <Front> <Back> Power Switch ( POWER) Power Indicator NOTE Blue: Normal operation Orange: Power Management Select / Input Button ( Scroll Up / Audio Adjust Button ( ) Scroll Down / i-Style Color Button ( ) Menu Button ( Speakers VGA Connector (D-SUB) -
Page 13: Controls And Connectors : Prolite E1780Sd
CONTROLS AND CONNECTORS : ProLite E1780SD <Front> <Back> Power Switch ( POWER) Power Indicator NOTE Blue: Normal operation Orange: Power Management Select / Input Button ( Scroll Up / Audio Adjust Button ( ) Scroll Down / i-Style Color Button ( ) Menu Button ( Speakers VGA Connector (D-SUB) -
Page 14: Connecting Your Monitor : Prolite B1780Sd
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 15: Connecting Your Monitor : Prolite E1780Sd
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 16: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 30: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite E1780SD For optimal viewing it is recommended to look at the full face of the monitor. ... -
Page 17: Adjusting The Height And The Viewing Angle : Prolite B1780Sd
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B1780SD For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. ... -
Page 18: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 30. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 21 for SCREEN ADJUSTMENTS. -
Page 19: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Auto Image Adjust * Adjust H. / V. Position, Clock and Phase automatically. Direct * For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 21 for SCREEN ADJUSTMENTS. - Page 20 Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. Input Select Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when VGA and DVI which are selected. NOTE Direct You can skip the Menu items and display an adjustment scale directly by using the following button...
- Page 21 Color Adjust Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Greenish white Reddish white Warm Too weak User Color Green Too strong Blue Return to a state set by color adjustment except Off i-Style Color. For general windows environment and monitor Standard default setting.
- Page 22 Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Too left H. Position Too right H./V. Position * Too low V. Position Too high Too narrow Clock * Too wide Phase * To correct fl ickering text or lines 0 1 2 3 You can change the picture quality from 0 to 3 (soft to sharp).
- Page 23 5 / 15 / 30 / 60 seconds The background of OSD is made transparent. OSD Background* Off Retune the background of OSD. iiyama Logo displayed when the monitor is turned on. Opening Logo* iiyama Logo does not display when the monitor is Off turned on.
- Page 24 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 10 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2.
-
Page 25: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 26 Pressing and holding of the Button for about 2 seconds when the Menu is not displayed. (Auto Image Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 27 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. ...
-
Page 28: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 29: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 30: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 26 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 31: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite B1780SD Size Category 17" Panel technology Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time... -
Page 32: Specifications : Prolite E1780Sd
SPECIFICATIONS : ProLite E1780SD Size Category 17" Panel technology Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Typical) Display Colors... -
Page 33: Dimensions : Prolite B1780Sd
DIMENSIONS : ProLite B1780SD 370.0mm/14.6” 48.5mm/1.9” 339.5mm/13.4” 250.0mm/9.8” ) : Maximum adjustment range DIMENSIONS : ProLite E1780SD 370.0mm/14.6” 48.5mm/1.9” 339.5mm/13.4” 205.0mm/8.1” APPENDIX 29... -
Page 34: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz VESA 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
