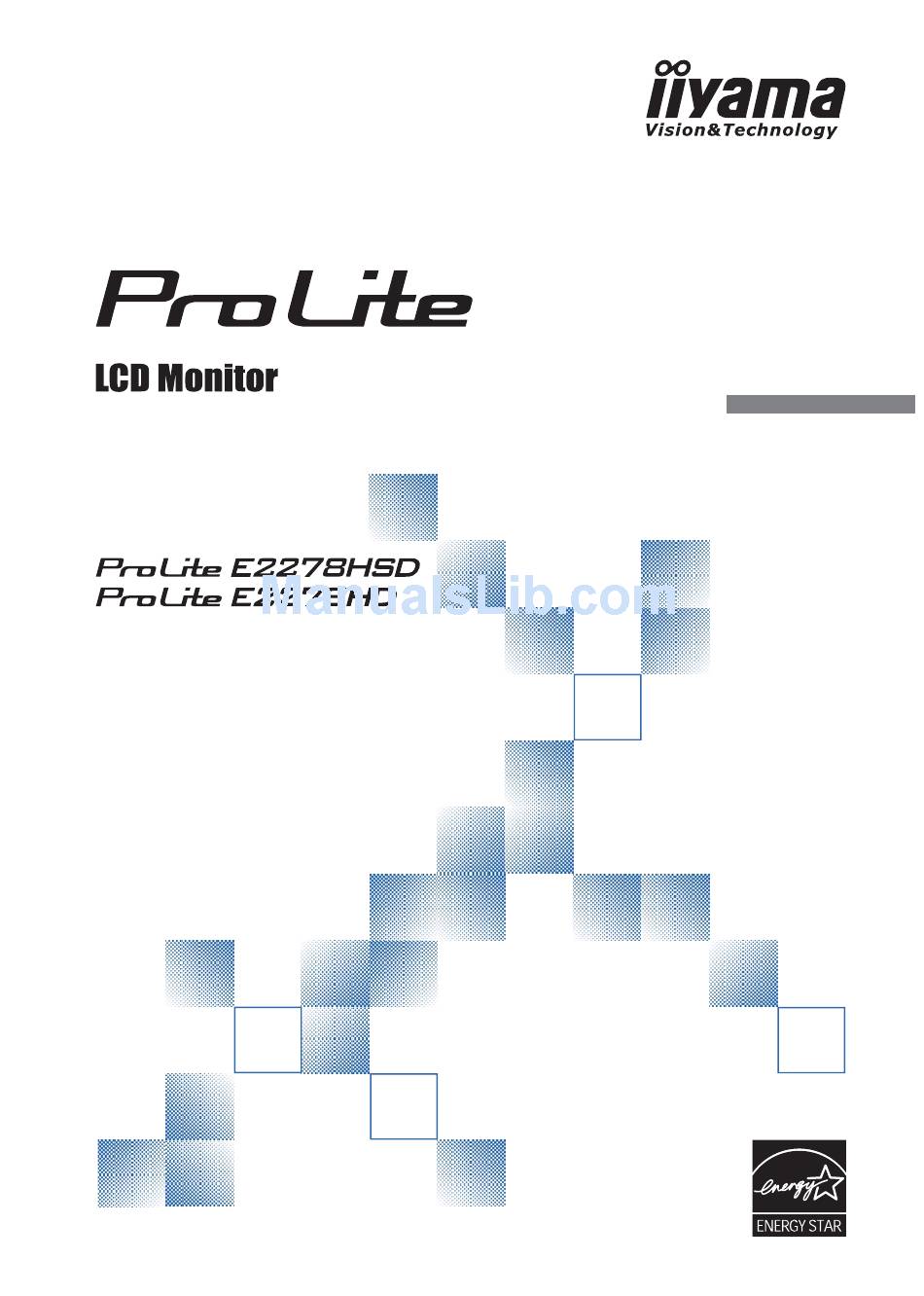

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
ADJUSTING THE VIEWING ANGLE ..........8 OPERATING THE MONITOR .............9 ADJUSTMENT MENU CONTENTS ..........10 SCREEN ADJUSTMENTS ............15 POWER MANAGEMENT FEATURE ...........18 TROUBLE SHOOTING ..............19 RECYCLING INFORMATION ............20 APPENDIX ..................21 SPECIFICATIONS : ProLite E2278HSD ........21 SPECIFICATIONS : ProLite E2278HD ........22 DIMENSIONS ................23 COMPLIANT TIMING ..............23... -
Page 5: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it falls CAUTION or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( ) / Power Indicator NOTE Blue: Normal operation Orange: Power Management Menu / Select Button (MENU) Scroll Up / Brightness Button ( Scroll Down / ECO Mode Button* Exit Button (EXIT) Auto Button (AUTO) Speakers* Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed... -
Page 11: Connecting Your Monitor
The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... -
Page 12: Computer Setting
Change to the desired signal timing listed on page 26: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 13: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 26. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. -
Page 14: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Pixel Clock and Phase Auto Adjust * Direct automatically. * For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 18 for SCREEN ADJUSTMENTS. - Page 15 Geometry Only Analog Input Adjustment Item Problem / Option Button to Press Too left H. Position Too right Too low V. Position Too high Too narrow Pixel Clock Too wide Phase To correct fl ickering text or lines Color Adjustment Item Problem / Option Button to Press Bluish white...
- Page 16 Language Adjustment Item Problem / Option Button to Press Español Spanish English English Français French Nederlands Dutch Language Japanese Deutsch German Italiano Italian Simplifi ed Chinese Polski Polish Russian Recall Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Recall All Return to Menu.
- Page 17 Adv. Contrast Typical Contrast Ratio Full Expansion display Display Mode Aspect Expansion display of Aspect iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on. OPERATING THE MONITOR 13...
- Page 18 Input Select Adjustment Item Problem / Option Button to Press D-sub Select the Analog input. Input Select Direct Select the Digital (DVI) input. When only one of the three signal inputs is connected to the signal source, the one NOTE connected is automatically selected.
-
Page 19: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 20 Press the Auto Button. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 21 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Pixel Clock may not be adjusted correctly. ...
-
Page 22: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 23: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 24: Recycling Information
The Audio Cable is properly connected. A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 20 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 25: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite E2278HSD Size Category 22" Panel Technology TN Panel Size Diagonal: 21.5" (55cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time... -
Page 26: Specifications : Prolite E2278Hd
SPECIFICATIONS : ProLite E2278HD Size Category 22" Panel Technology TN Panel Size Diagonal: 21.5" (55cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) -
Page 27: Dimensions
DIMENSIONS 514.5mm/20.3” 55.0mm/2.2” 478.0mm/18.8” 221.0mm/8.7” 177.5mm/7.0” COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640×480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800×600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024×768 60.023kHz 75.029Hz 78.750MHz VESA 108.000MHz 63.981kHz 60.020Hz SXGA...
