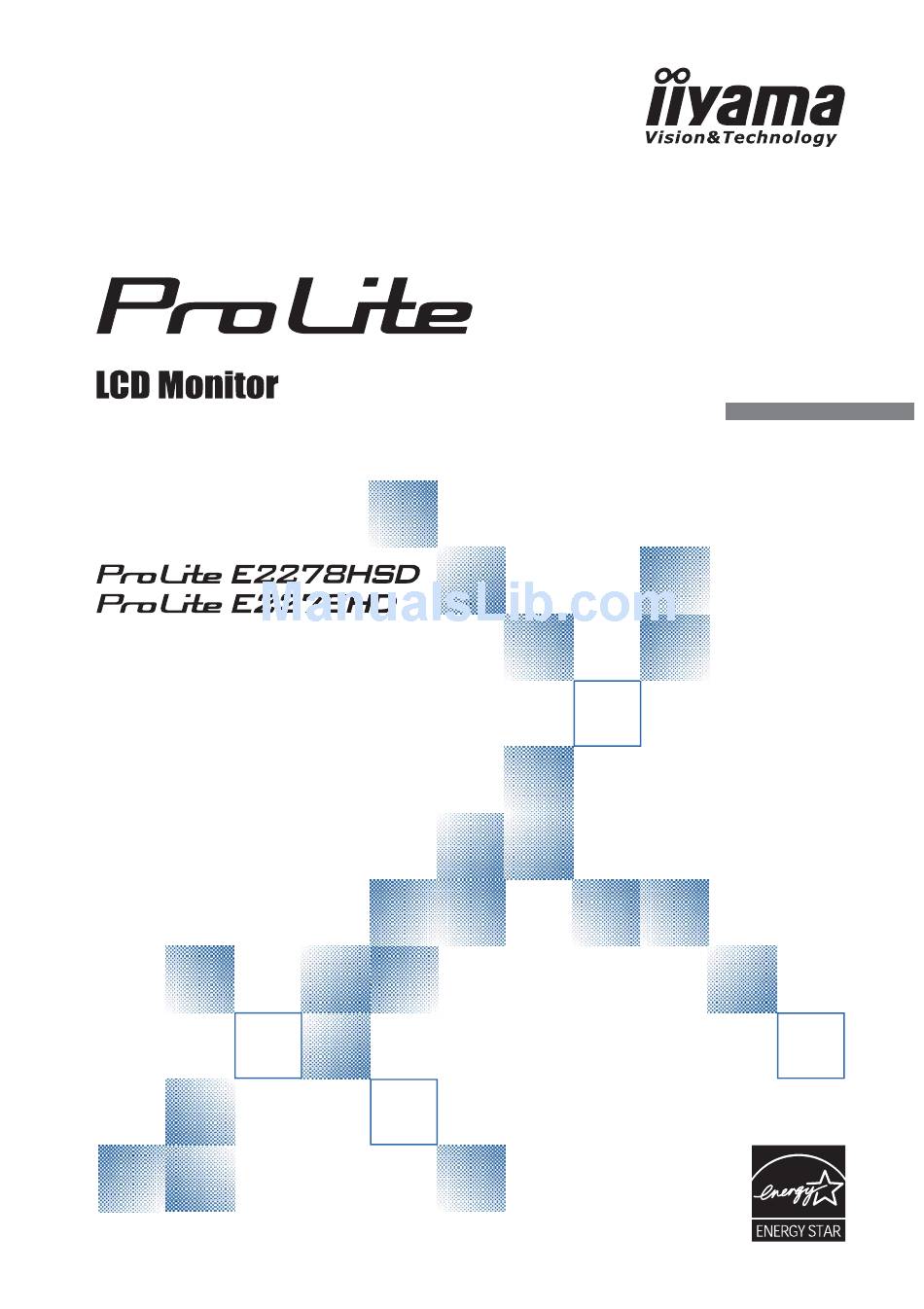

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 4: Table Of Contents
ADJUSTING THE VIEWING ANGLE ..........8 OPERATING THE MONITOR ...............9 ADJUSTMENT MENU CONTENTS ..........10 SCREEN ADJUSTMENTS ............16 POWER MANAGEMENT FEATURE ..........19 TROUBLE SHOOTING ..............20 RECYCLING INFORMATION .............21 APPENDIX ..................22 SPECIFICATIONS : ProLite E2278HSD ........22 SPECIFICATIONS : ProLite E2278HD ..........23 DIMENSIONS ................24 COMPLIANT TIMING ..............24... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 10: Controls And Connectors
VGA(D-sub) mini 15pin Connector (D-SUB) DVI-D 24pin Connector (DVI-D) Audio Connector* (LINE OUT) Audio Connector* (LINE IN) AC Connector (POWER IN) You can skip the Menu items and display an adjustment scale directly. Available for ProLite E2278HSD only. 6 BEFORE YOU OPERATE THE MONITOR... -
Page 11: Connecting Your Monitor
VGA (D-Sub) cable is not supplied with the monitor; you need to use a special VGA (D-Sub) cable dedicated for this model. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the VGA input. -
Page 12: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 24: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. -
Page 13: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. -
Page 14: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Only Analog Input Auto Adjust Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Pixel Clock and Phase Auto Adjust * Direct automatically. * For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 18 for SCREEN ADJUSTMENTS. - Page 15 Geometry Only Analog Input Adjustment Item Problem / Option Button to Press Too left H. Position Too right Too low V. Position Too high Too narrow Pixel Clock Too wide Phase To correct fl ickering text or lines Color * Adjustment Item Problem / Option Button to Press...
- Page 16 Language Adjustment Item Problem / Option Button to Press English English Nederlands Dutch Japanese Français French Deutsch German Simplifi ed Chinese Language Russian Italiano Italian Czech Polski Polish Ĉesky Español Spanish Recall Adjustment Item Problem / Option Button to Press Factory-preset data is restored.
- Page 17 Expansion display Display Mode Aspect Expansion display of Aspect iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on. * Adv. Contrast adjustments is disabled when i-Style Color is activated.
- Page 18 Too loud Turn off the sound temporarily. Mute Return the sound volume to the previous level. Mute On and Off are switched as follows by pressing the Button successively. NOTE * Available for ProLite E2278HSD only. 14 OPERATING THE MONITOR...
- Page 19 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. ECO Mode : Press the Button when the Menu is not displayed. On : Brightness of back light is reduced. Off : Normal ...
-
Page 20: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 21 Press the AUTO Button. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 22 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Pixel Clock may not be adjusted correctly. ...
-
Page 23: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 24: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 25: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 21... -
Page 26: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite E2278HSD Size Category 22" Panel Technology TN Panel Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available... -
Page 27: Specifications : Prolite E2278Hd
SPECIFICATIONS : ProLite E2278HD Size Category 22" Panel Technology TN Panel Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Typical) Display Colours... -
Page 28: Dimensions
DIMENSIONS 514.5mm/20.3” 55.0mm/2.2” 478.0mm/18.8” 221.0mm/8.7” 177.5mm/7.0” COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640×480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800×600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024×768 60.023kHz 75.029Hz 78.750MHz VESA 63.981kHz 60.020Hz 108.000MHz SXGA...
