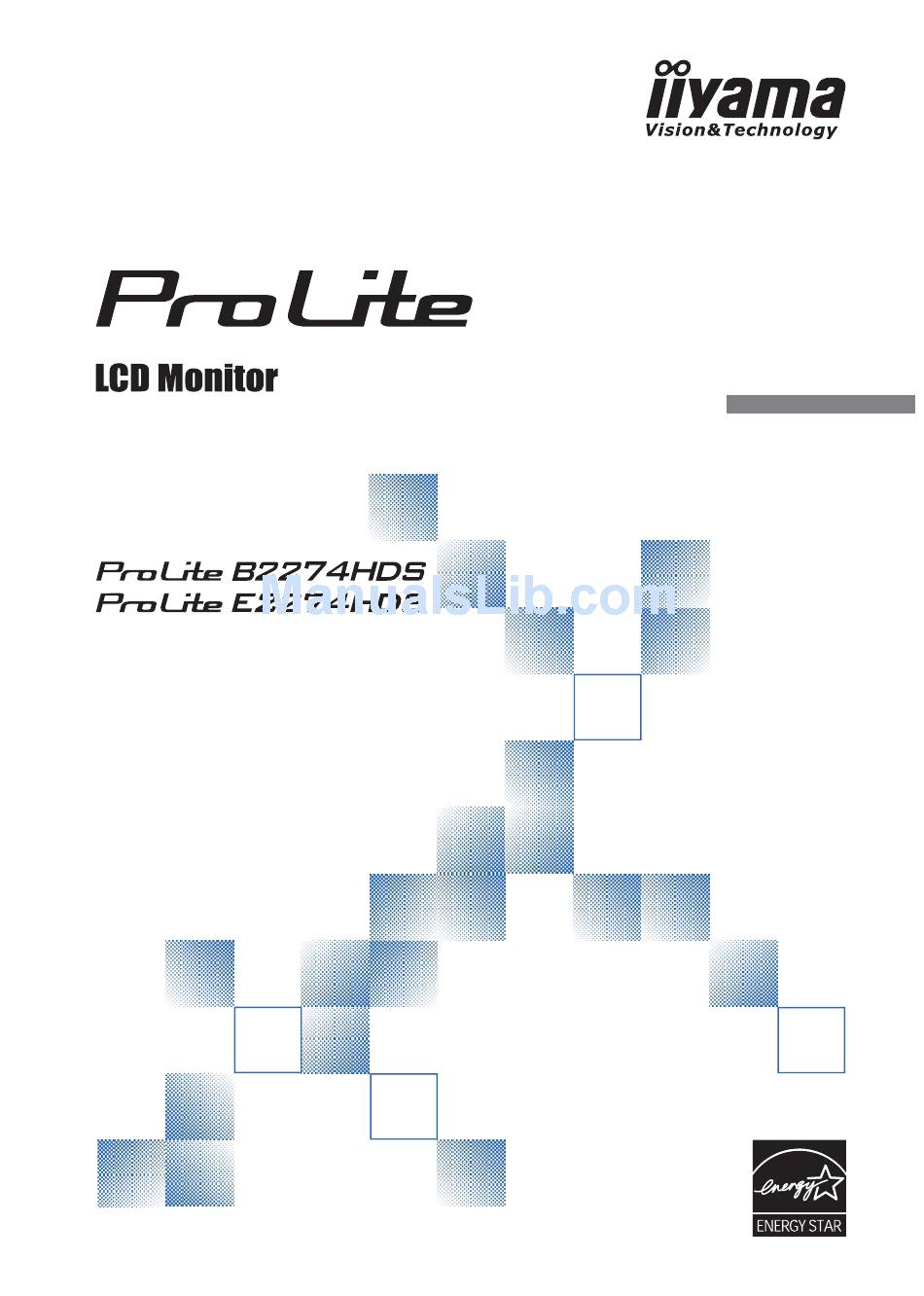

USER MANUAL

ENGLISH
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through this
brief but comprehensive manual before
installing and switching on the monitor.
Please keep this manual in a safe
place for your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite B2274HDS and is the answer not in the manual?

Questions and answers

Related Manuals for Iiyama ProLite B2274HDS

Summary of Contents for Iiyama ProLite B2274HDS

  • Page 1: User Manual

    USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe...

  • Page 3: Ce Marking Declaration Of Conformity

    For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing refl ections from surrounding light and bright surfaces. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...

  • Page 4: Table Of Contents

    BEFORE YOU OPERATE THE MONITOR ........4 FEATURES ..................4 CHEKING THE CONTENTS OF THE PACKAGE ......4 FITTING AND REMOVAL OF BASE : ProLite B2274HDS ....5 FITTING AND REMOVAL OF BASE : ProLite E2274HDS ....6 CONTROLS AND CONNECTORS : ProLite B2274HDS ....7 CONTROLS AND CONNECTORS : ProLite E2274HDS ....8...

  • Page 5: For Your Safety

    STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 7: Special Notes On Lcd Monitors

    Power Switch for some hours.  Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.

  • Page 8: Before You Operate The Monitor

    CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 9: Fitting And Removal Of Base : Prolite B2274Hds

    FITTING AND REMOVAL OF BASE : ProLite B2274HDS  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls CAUTION or is dropped.  Do not give a strong impact to the monitor. It may cause damage.

  • Page 10: Fitting And Removal Of Base : Prolite E2274Hds

    FITTING AND REMOVAL OF BASE : ProLite E2274HDS  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls CAUTION or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...

  • Page 11: Controls And Connectors : Prolite B2274Hds

    CONTROLS AND CONNECTORS : ProLite B2274HDS <Front> <Back> Power Switch ( Menu Button (MENU) + / Volume Button (+/ Power Indicator NOTE Blue: Normal operation Orange: Power Management - / ECO Button (- / Auto Button (AUTO) Speakers Audio Connector (...

  • Page 12: Controls And Connectors : Prolite E2274Hds

    CONTROLS AND CONNECTORS : ProLite E2274HDS <Front> <Back> Power Switch ( Menu Button (MENU) + / Volume Button (+/ Power Indicator NOTE Blue: Normal operation Orange: Power Management - / ECO Button (- / Auto Button (AUTO) Speakers Audio Connector ( D-SUB mini 15pin Connector (D-SUB) DVI-D 24pin Connector (DVI) HDMI Connector (HDMI)

  • Page 13: Connecting Your Monitor : Prolite B2274Hds

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 14: Connecting Your Monitor : Prolite E2274Hds

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 15: Computer Setting

    Change to the desired signal timing listed on page 29: COMPLIANT TIMING.  Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.

  • Page 16: Adjusting The Height And The Viewing Angle : Prolite B2274Hds

    ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B2274HDS  For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference.

  • Page 17: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 29. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS.

  • Page 18: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness i-Style Color Standard Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright Normal Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. Mode3 Brightness of back-light is reduced more than Mode2.
  • Page 19 Image Setup Image Setup Clock Phase H.Position V.Position Aspect Full Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H. Position* Too right Too low V. Position* Too high Full Expansion display...
  • Page 20 Color Temp. Color Temp. Gamma Mode1 Color Temp. Warm User-R User-G User-B Adjustment Item Problem / Option Button to Press Mode1 Normal Gamma Mode2 High contrast Mode3 Dark Warm Greenish white Normal Yellowish white Cool Bluish white Color Temp. User-R Too weak User User-G...
  • Page 21 OSD Setup OSD Setup H.Position V.Position Timeout Language English Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time Timeout between 5 and 60 seconds.
  • Page 22 Others Others Reset Signal Select Auto HDMI audio LINE IN Mode3 Information Input : D-SUB Resolution : 1920(H) 1080(V) H.Frequency : 68KHz V.Frequency : 60Hz Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. Auto Select the signal input automatically.

  • Page 23: Screen Adjustments

    Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.  Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud ...

  • Page 24: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www. iiyama.com).
  • Page 25 C Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 26 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern.  In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and NOTE G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.

  • Page 27: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
  • Page 28 MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 29: Recycling Information

     The Audio Cable is properly connected. A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 25...

  • Page 30: Appendix

    APPENDIX SPECIFICATIONS : ProLite B2274HDS Size Category 22" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 21.5" (55cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), ACR Function Available Viewable angle...

  • Page 31: Specifications : Prolite E2274Hds

    SPECIFICATIONS : ProLite E2274HDS Size Category 22" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 21.5" (55cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), ACR Function Available Viewable angle Right / Left : 85 degrees each, Up / Down: 80 degrees each (Typical) Response time 5ms (Black, White, Black)

  • Page 32: Dimensions

    DIMENSIONS : ProLite B2274HDS 505.5mm/19.9” 50.0mm/2.0” 478.5mm/18.8” 249.5mm/9.8” ) : Maximum adjustment range DIMENSIONS : ProLite E2274HDS 505.5mm/19.9” 50.0mm/2.0” 478.5mm/18.8” 228.5mm/9.0” 28 APPENDIX...

  • Page 33: Compliant Timing

    COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 37.500kHz 75.000Hz 31.500MHz 640 × 480 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 40.000MHz 37.879kHz 60.317Hz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.077kHz 72.188Hz 50.000MHz 48.363kHz 60.004Hz 65.000MHz VESA 1024 ×...

This manual is also suitable for:
