Digital console backup power supply

Advertisement

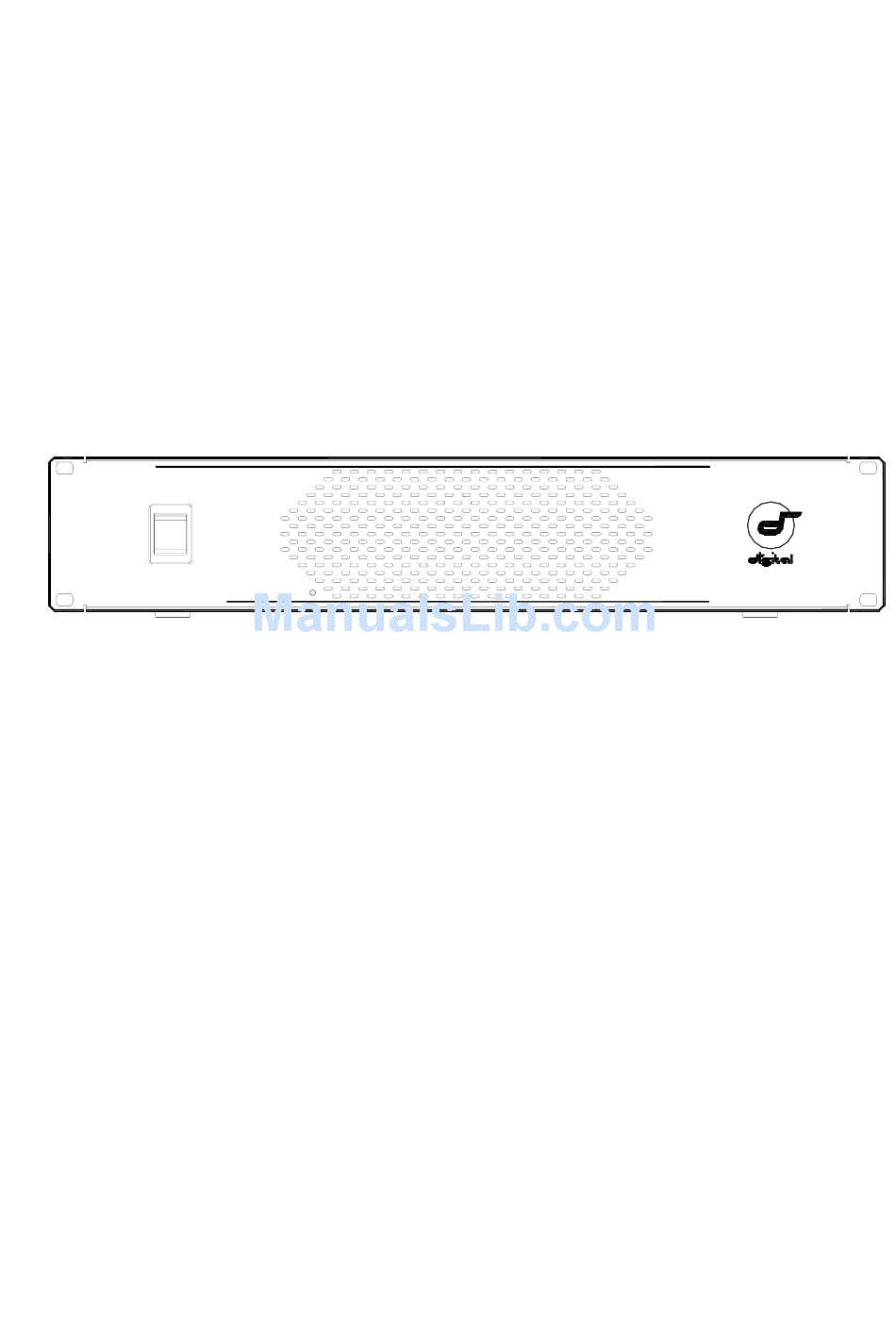

ALLEN&HEATH
iPS10
ALLEN&HEATH
POWER
ON
OFF
POWER ON
DIGITAL SYSTEM BACKUP SUPPLY
ADVANCED POWER SUPPLY TECHNOLOGY
iPS10
Digital Console Backup Power Supply

USER GUIDE

Publication AP6688

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPS10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ALLEN & HEATH iPS10

  • Page 1: User Guide

    ALLEN&HEATH iPS10 ALLEN&HEATH POWER POWER ON DIGITAL SYSTEM BACKUP SUPPLY ADVANCED POWER SUPPLY TECHNOLOGY iPS10 Digital Console Backup Power Supply USER GUIDE Publication AP6688...
  • Page 2: Limited Two Year Warranty

    Allen & Heath could void the compliance of the product and therefore the users authority to operate it. iPS10 User Guide AP6688 Issue 1. Copyright © 2007 Allen & Heath. All rights reserved Manufactured in the United Kingdom by Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com...
  • Page 3: Read Instructions

    Installation Install the power supply unit in accordance with the instructions printed in this User Guide. Do not connect the output of power supply unit to any other equipment other than that specified by Allen & Heath. iPS10 User Guide...
  • Page 4 DC power and CAT5 cables are not fully extended. Full extension of the cable can stress the mixing console and power supply unit connectors and may result in undesired performance. Ensure that the power cable is located such that it cannot be stood on or tripped over. iPS10 User Guide...
  • Page 5 Introduction This user guide presents a quick reference to the iPS10 digital console power supply unit. We recommend that you read this fully before starting. Included is information on installing, connecting and operating the power supply unit along with panel drawings and technical specification.
  • Page 6: Installation

    Rack mounting The iPS10 is designed as a 19 inch rack mount unit and will occupy 2U (3.5 inches) of rack space. The plastic feet may need to be removed before rack mounting. Retain the feet for future use.
  • Page 7: Controls And Connections

    DIGITAL SYSTEM BACKUP SUPPLY ADVANCED POWER SUPPLY TECHNOLOGY POWER ON/OFF POWER STATUS Press to switch the iPS10 The blue indicator lights at full brightness while the unit is power unit on or off. The switched on and working correctly. If the indicator does...
  • Page 8 Connecting the iPS10 to the iLive Surface iLIVE SURFACE Surface CPU power on Internal PSU on Backup PSU on Female plug INTERNAL PSU TEMPERATURE MONITOR CABLE DC CABLE CAT5 10way Cable retention clip Male plug iPS10 BACKUP PSU MAINS IEC MAINS CABLES...
  • Page 9 For protection against temporary loss of mains power an external UPS (uninterruptible power supply) could be used. Make sure the iPS10 and the iLive unit being connected to are both turned off before plugging or unplugging the mains and DC POWER cables.
  • Page 10: Technical Specification

    Packed 580 x 510 x 210mm 22.9” x 20” x 8.3” Weight Unpacked 7 kg (15.4 lbs) Packed 8.5 kg (18.7 lbs) 482 mm / 19" 443 mm / 17.4" 374 mm / 14.7" 310 mm / 12.2" iPS10 User Guide...
