RPS14

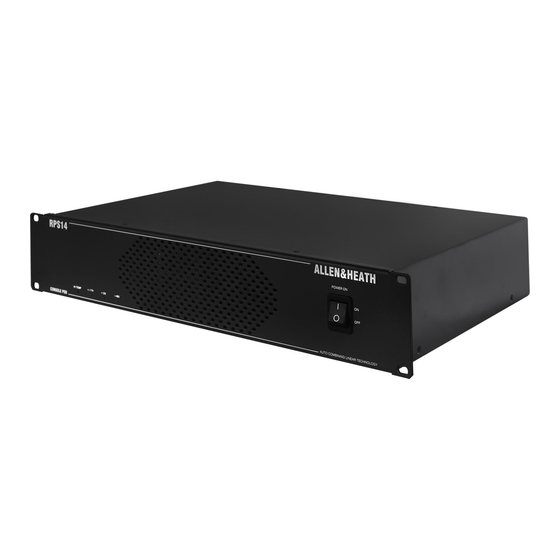

Linear Console Power Supply

USER GUIDE

Publication AP5716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RPS14 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALLEN & HEATH RPS14

  • Page 1: User Guide

    RPS14 Linear Console Power Supply USER GUIDE Publication AP5716...
  • Page 2: Limited One Year Warranty

    & Heath could void the compliance of the product and therefore the users authority to operate it. RPS14 User Guide AP5716 Issue 1. Copyright © 2005 Allen & Heath. All rights reserved Manufactured in the United Kingdom by Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com...
  • Page 3: Important Safety Instructions

    Ventilation Heat and vibration Servicing Installation RPS14 User Guide - Read the following before proceeding : CAUTION Retain these safety and operating instructions for future reference. Adhere to all warnings printed here and on the power supply unit. Follow the operating instructions printed in this User Guide.
  • Page 4 Full extension of the cable can stress the mixing console and power supply unit connectors and may result in undesired performance. Ensure that the power cable is located such that it cannot be stood on or tripped over. USA/Canada BLACK WHITE GREEN RPS14 User Guide...
  • Page 5 Allen & Heath mixing consoles employ a number of DC voltage supply levels in their operation and these are provided at the output of the power supply unit. The RPS14 has a built in combiner for connection to a second supply for backup.
  • Page 6: Installation

    Rack mounting The RPS14 is designed as a 19 inch rack mount unit and will occupy 2U (3.5 inches) of rack space. The fast feet may need to be removed before rack mounting. Retain feet for future use.
  • Page 7: Cleaning The Unit

    Cleaning the Unit The RPS14 does not use any internal filters. Air is drawn through the fan grille on the rear, blown through a heatsink tunnel and out through ventilation slots in the front panel. It is not necessary to open the unit for cleaning.
  • Page 8: Replacing The Mains Fuse

    Replacing the mains fuse The AC mains fuse is located on the rear of the RPS14 unit next to the AC mains connector. In the event of a mains surge or under-rated fuse value, the fuse will rupture. Switch off the power supply and remove the mains lead plug from the “MAINS INPUT”...
