Summary of Contents for ALLEN & HEATH MPS14
-
Page 1: User Guide

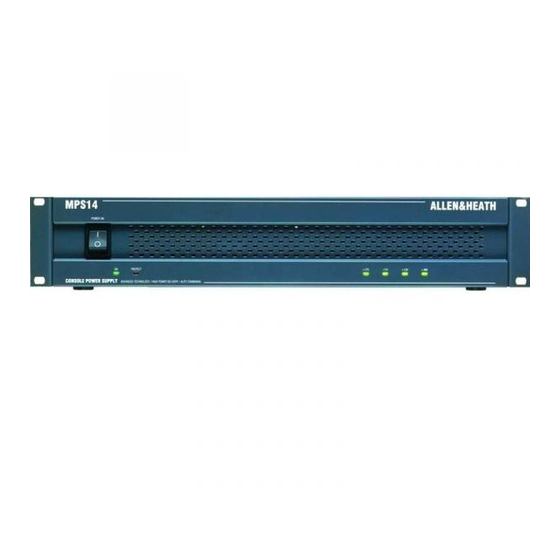

MPS14 Rack Mount Power Supply USER GUIDE Publication AP3898... -
Page 2: Warranty
MPS14 User Guide AP3898 Issue 4. Copyright © 2001 Allen & Heath. All rights reserved Manufactured in the United Kingdom by Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com... -
Page 3: Important Safety Instructions
Refer servicing to qualified technical personnel only. Installation Install the power unit in accordance with the instructions printed in this User Guide. Do not connect the output of power unit to any other equipment other than that specified by Allen & Heath. MPS14 User Guide CAUTION... -
Page 4: Precautions
The power unit should be transported in the original packing or purpose built flightcase to protect it from damage during transit. WIRE COLOUR European USA/Canada BROWN BLACK BLUE WHITE GREEN & YELLOW GREEN If the power unit becomes wet, switch off and remove power MPS14 User Guide... -
Page 5: Table Of Contents
Introduction This user guide presents a quick reference to the MPS14. We recommend that you read this fully before starting. Included is information on installing, connecting and operating the power unit along with panel drawings and technical specification. For further information on the basic principles of audio system engineering, please refer to one of the specialist publications available from bookshops and audio equipment dealers. -
Page 6: Mps14 User Guide
Rack mounting The MPS14 is designed as a 19 inch rack mount unit and will occupy 2U (3.5 inches) of rack space. A pair of M4 threaded holes on each side at the rear of the chassis are provided for fixing brackets for supporting the rear of the unit. -
Page 7: Using The Mps14
MPS14 chassis are in electrical contact through the fixing rails they share in the rack. The MPS14 has audio 0V and mains earth connected internally. If a ground loop is formed operation of the “ground lift” switch on the rear panel of the MPS14 may reduce any unwanted hum or buzz. -
Page 8: Fan Filter Cleaning
Replacing the mains fuse The AC mains fuse is located on the rear of the MPS14 unit next to the AC mains connector. In the event of a mains surge or under-rated fuse value, the mains input fuse will rupture. Switch off the power supply and remove the mains lead plug from the “MAINS INPUT”... -
Page 9: Technical Specifications
Cable Assemblies Assembly Description DC cable 2.9m MPS14 to ML5000 console cable assembly DC LINK cable 0.75m MPS14 to MPS14 PSU “LINKING” cable assembly MPS14 User Guide T 5.0A/250V Fuse type T 6.3A 250V 20mm T 1.6A 250V 20mm T 500mA 250V 20mm Output Current 6.5A Max. - Page 10 MPS14 User Guide...
