Pro-Form CrossXover User Manual page 6

2, 2

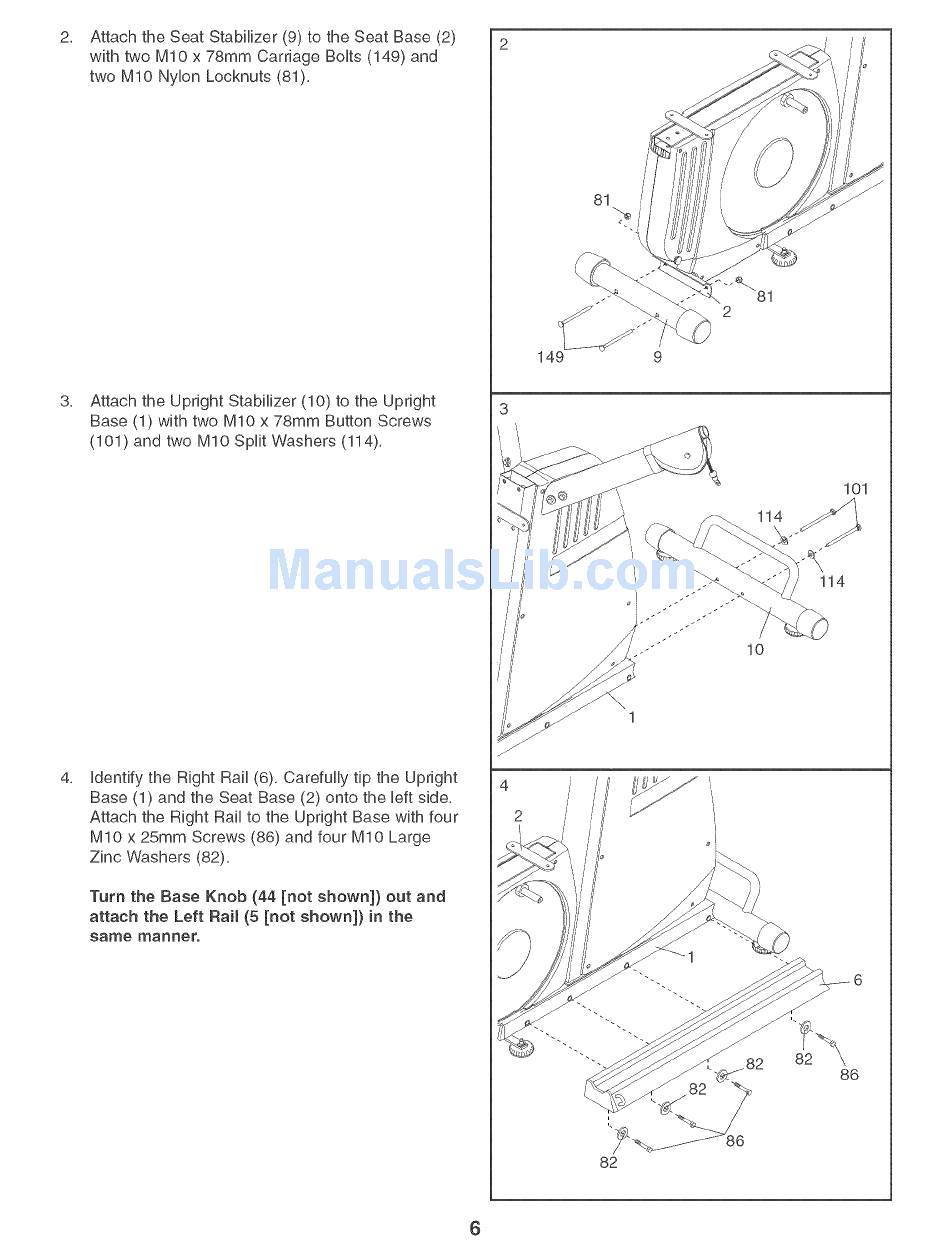

Attach the Seat Stabilizer (9) to the Seat Base (2)
with two MIO x 78mm Carriage BoUts (149) and
two MIO NyUon Locknuts (81),
Attach the Upright Stabilizer (10) to the Upright
Base (1) with two MIO x 78mm Button Screws
(101) and two MIO Split Washers (114),
Udentify the Right Rail (6), Carefully tip the Upright
Base (1) and the Seat Base (2) onto the Ueftside,
Attach the Right Rail to the Upright Base with four
MIO x 25mm Screws (86) and four MIO Large
Zinc Washers (82),
Turn the Base Knob (44 [not shown]) out and
attach the Left Rail (5 [not shown]) in the
same manner.
3
4
2
81
149 9
114
114
10
82
82
101
86
6
