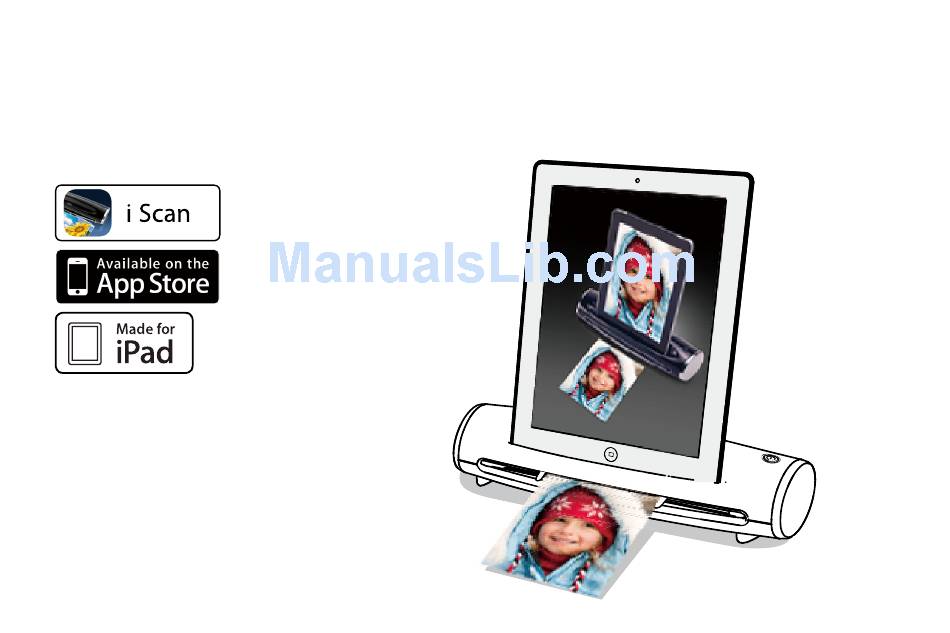

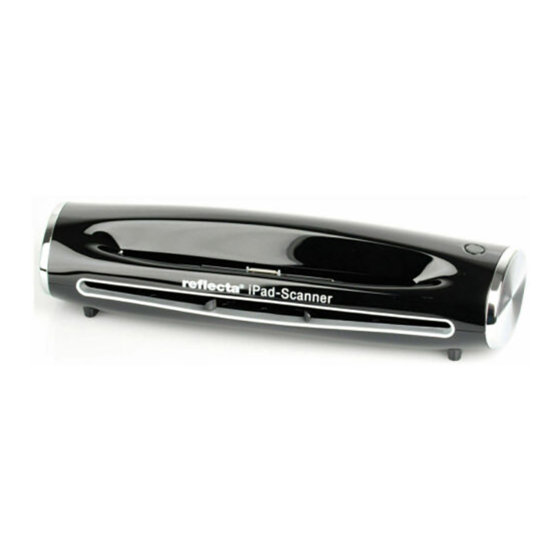

Docking Scanner

User Guide

Works with
-
Scanner App
The "Made for iPad" logo means
t h a t a n e l e c t r o n i c a c c e s s o r y
has been designed to connect
specifi cally to iPad and has been
certifi ed by the developer to meet
Apple performance standards.
A p p l e i s n o t r e s p o n s i b l e f o r
the operation of this device or
its compliance with safety and
regulatory standards. Please note
that the use of this accessory
with iPad may affect wireless
performance.
All trademarks are the property of their respective
owners and all rights are acknowledged.
V1.4
Works with iPad

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Docking Scanner and is the answer not in the manual?

Questions and answers

Related Manuals for Reflecta Docking Scanner

Summary of Contents for Reflecta Docking Scanner

  • Page 1: User Guide

    Docking Scanner User Guide Works with Scanner App The "Made for iPad" logo means t h a t a n e l e c t r o n i c a c c e s s o r y has been designed to connect specifi...

  • Page 2: Safety And Precautions

    Safety and Precautions • Never store the unit in hot, or very cold, or humid or dusty places. • For an extended storage period, we recommend storing the unit in a cool and dry place. • To help keep the scanning area clean, store the unit in a proper case when not in use. •...

  • Page 3: Table Of Contents

    Contents Safety and Precautions .......................... 2 Contents ..............................3 Quick Start ............................... 4 Unpack ..............................5 Scanner Parts ............................6 Connect and Turn on ..........................7 Dock the iPad ............................8 Install and Access the i-Scan App ......................9 App Launch Message on iOS 5.0 or later .......................... 9 Scan ................................

  • Page 4: Quick Start

    Quick Start Connect to a power source. Turn on the power. Dock your iPad. Apple USB charger (not included) Install and access the i-Scan app. Insert a photo, tap 'Scan'. Tap 'Save'. Done. Application Not Installed This accessory requires an application you do not have installed.

  • Page 5: Unpack

    Unpack Make sure following items are included. Scanner USB Cable Calibration Card Cleaning Board User Guide Cleaning Strip Photo Sleeve User Guide...

  • Page 6: Scanner Parts

    Scanner Parts Dock Connector Power Button Power LED Feed Slot Exit Slot Paper Guide Paper Guide Mini USB port Stand (for DC 5V power input)

  • Page 7: Connect And Turn On

    Connect and Turn on Connect the USB Cable to the scanner, and connect the other end to the Apple USB charger included with your iPad. Connect the Apple USB charger to a power outlet. Apple USB charger Power button to turn on Long press the (not included) the scanner.

  • Page 8: Dock The Ipad

    Dock the iPad Turn on your iPad. Hold your iPad and gently dock it to the Dock Connector. Make sure it sits firmly in place. Please be cautious when you dock the iPad. Do not lean the iPad forward as it and the Dock Connector may be damaged.

  • Page 9: Install And Access The I-Scan App

    Install and Access the i-Scan App When the i-Scan app is not installed, a message 'Application Not Installed' appears asking you to download the free i-Scan app from the App Store. Tap 'Yes' to continue. Tap 'Install' and enter your Apple ID (iTunes Application Not Installed account) and password when prompted.

  • Page 10: Scan

    Scan CAUTIONS: • The paper thickness limit is 0.08mm ~ 0.6mm. Exceeding the recommended paper thickness limit may cause misfeed or jams. • Scanning sharp objects, abrasive surfaces stapled paper can damage the lens and other parts. Tap i-Scan app on your iPad to open it. Place the photo/document facing up, adjust the Paper Guide against the edges of the photo/document, slightly push the photo/...

  • Page 11: Using The Photo Sleeve

    Scan (Continued) Using the Photo Sleeve Use the Photo Sleeve when photos are fragile or small to avoid damage or jams, and get the best result. Remove the plastic foil on the Sleeve, place the photo inside the Sleeve, insert the tongue into the hole at the open end.

  • Page 12: Calibrate

    Calibrate If dark lines or stripes appeared on the scanned image, please perform the calibration of your scanner. Tap the iPad screen. Tap the (Settings) at the top-right corner of the app, tap the Calibrate. Remove the plastic foil on the Calibration Card, insert it with the arrow mark facing toward the shown direction to the Feed Slot.

  • Page 13: Clean

    Clean Dirt and dust can build up inside the scanner and affect image quality, please clean your scanner periodically to get the best result. Cleaning done. Cleaning the Rollers Tap the iPad screen. Tap the (Settings) at the top-right corner of the app, tap the Clean.

  • Page 14: Charge Your Ipad

    Charge your iPad Before docking your iPad, turn off the power of the scanner (the Power LED emits no light). Dock your iPad to the scanner to start charg- Apple USB charger ing. The screen will indicate its charging sta- (not included) tus.

  • Page 15: Helpful Hints

    Helpful Hints No power. • Check if the USB cable is connected properly, and the scanner is turned on. • The scanner will turn off automatically when the iPad connected is in sleep mode. To resume the power, wake the iPad, and then turn on the scanner.

  • Page 16: Specifications

    Specifications Scanner Type Sheetfed Scanner Image Sensor Color CIS Light Source LED (R, G, B) Scan Size Up to Legal size 8.5" x 14" (216mm x 356 mm) (W x L) Scan Thickness 0.08mm ~ 0.6mm Scan Resolution 300 dpi Scan Speed 6 ppm (A4 color) at 300 dpi Ports...
