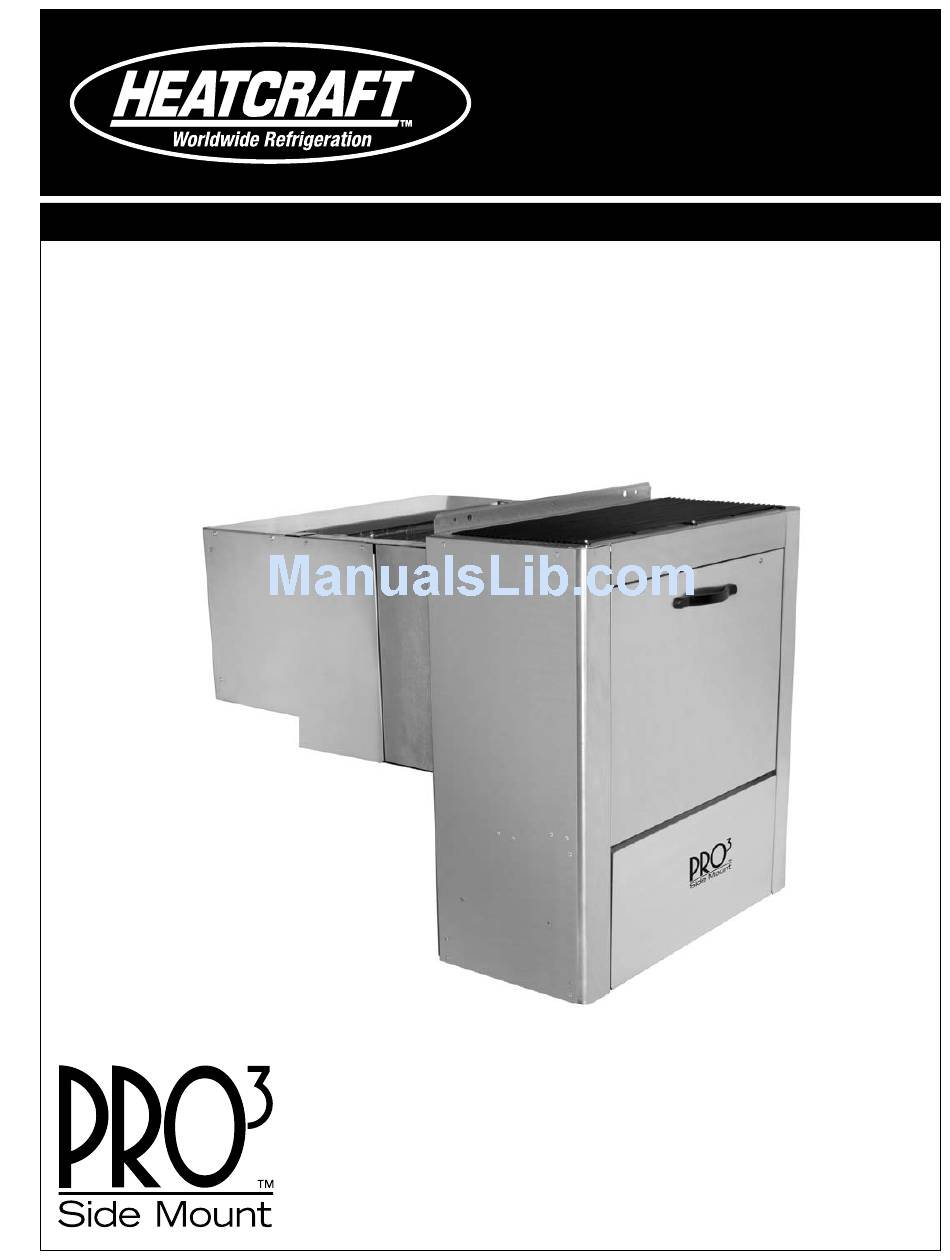

- Page 1 Installation and Operations Manual Bulletin H-IM-PSM May 2008 Part Number 25008001 Side Mount Packaged Refrigeration System...
-
Page 2: Table Of Contents
DIAGRAM 8 Dimensions | Large Cabinet: 2-fan | Top view DIAGRAM 9 Dimensions | Large Cabinet: 1-fan | Side view DIAGRAM 10 Dimensions | Large Cabinet: 1-fan | Back view Replacement Parts by InterLink ...22 TABLE 6 Replacement Parts List Warranty Statement ...23 © 008 Heatcraft Refrigeration Products LLC... -
Page 3: Inspection
Side Mount Packaged Refrigeration System Inspection Each shipment should be carefully checked against the bill of lading. The shipping receipt should not be signed until all items listed on the bill of lading have been accounted for. Check packaging for signs of damage. Any shortage or damages should be immediately reported to the delivering carrier. -
Page 4: Installation Procedures
Installation Procedures NOTE: Installation and maintenance to be performed only by qualified personnel who are familiar with local codes and regulations and are experienced with this type of equipment. CAUTION: Make sure all power sources are disconnected before any service work is done on units. A.) Inspect packaging/unit for shipping damage B.) Review the space and location requirements provided for your method of installation. - Page 5 Side Mount Packaged Refrigeration System Installation Method #2 Side Installation (See FIGURES 7, 8, and 9) This installation method is intended for applications that have height restrictions that do not allow the unit to be installed from above (see method #1) and installations into pre-existing boxes where it is impractical to remove the roof.
-
Page 6: Rigging
Rigging CAUTION: Avoid contact with sharp edges and coil surfaces. They are a potential injury hazard. Wear gloves during moving and rigging. Caution should be exercised when moving these units. To prevent damage to the unit housing during rigging, cables or chains used must be held apart by spacer bars. -
Page 7: Electrical Connection
Side Mount Packaged Refrigeration System Electrical Connection Refer to all local codes for proper connection. A knock-out is provided for 1" conduit on the side of the condensing unit section above the electrical box. See FIGURE 12. Wire will be brought into the electrical box through the bottom of the electrical box and connected to the top of the contactor. -
Page 8: Programming Electronic Controller
Programming XR-40CX or XR-60CX Dixell Electronic Controller Reprinted with permission from Dixell. The Dixell XR-40CX (High Temperature) and XR-60CX (Medium and Low Temperature) are fully configurable electronic refrigeration controllers. These controls are used on PRO Mount units. All parameter values are reprogrammable and are stored in the non-volatile memory. -
Page 9: Max. & Min. Temperature Memorization
Side Mount Packaged Refrigeration System Max. & Min. Temperature Memorization HOW TO SEE THE MIN. TEMPERATURE Press and release the DOWN key. The “Lo” message will be displayed followed by the minimum temperature recorded. By pressing the DOWN key again or by waiting 5 seconds the normal display will be restored. -
Page 10: Parameters
Parameters Label Characteristic REgULATION Set Point (0,1 ÷ 5,5°C / 1÷55 °F) Intervention differential for set point. Compressor Differential Cut IN is Set Point + differential (Hy). Compressor Cut OUT is when the temperature reaches the set point (- 50°C÷SET/-58°F÷SET): Sets the Minimum set point minimum value for the set point.. -
Page 11: Fans (Xr60Cx Only)
Side Mount Packaged Refrigeration System Label Characteristic FANS (XR60CX ONLY) Fans delay after (0÷55min) Interval between end of defrost defrost and evaporator fans start (0÷59°C; Fct=0 function disabled). Temperature If the difference of temperature differential between the evaporator and the avoiding short room probes is more than the value cycles of fans... -
Page 12: Alarm Signals
Alarm Signals MESSAgE CAUSE Compressor output according Room probe failure to parameters “Con” and “COF” Evaporator probe Defrost end is timed failure Third probe failure Outputs unchanged Fourth probe Outputs unchanged failure Maximum Outputs unchanged temperature alarm Minimum Outputs unchanged temperature alarm Condenser high It depends on the Ac... -
Page 13: Connections
Side Mount Packaged Refrigeration System Connections XR40CX The X-REP output excludes the TTL output. It’s present in the following codes: XR40CX- xxxx, XR40CX –xx3xx; XR40CX –xx6xx; XR40CX –xx7xx; The digital input configurable as third probe is present in the following codes: XR40CX- xx4xx, XR40CX –xx5xx; XR40CX –xx6xx; XR40CX –xx7xx;... -
Page 14: Drain Pan Removal
DRAWN THIS DOCUMENT CONTAINS MATERIAL AND/OR ANGLES-----------------±5∞ mss5 01-17-08 INFORMATION WHICH IS THE PROPERTY OF HEATCRAFT REFRIGERATION PRODUCTS AND IS APPROVED SUPPLIED ONLY ON A PROPRIETY BASIS. NO 01-17-08 TOLERANCE BLOCK TRANSMITTAL SHALL BE MADE TO ANY PERSON, FIRM, OR CORPORATION WITHOUT PRIOR WRITTEN APPROVAL. -
Page 15: Wiring Diagrams
Side Mount Packaged Refrigeration System Wiring Diagrams DIAgRAM 1 Wiring Diagram | High Temperature Cooler | Air Defrost | Large Cabinet YELLOW Side Mount Packaged Refrigeration System Installation and Operations Manual, May 008... - Page 16 Installation and Operations Manual DIAgRAM 2 Wiring Diagram | High Temperature Cooler | Air Defrost | Small Cabinet YELLOW...
- Page 17 Side Mount Packaged Refrigeration System DIAgRAM 3 Wiring Diagram | Freezer and Medium Temperature Cooler | Electric Defrost | Small Cabinet YELLOW Side Mount Packaged Refrigeration System Installation and Operations Manual, May 008...
-
Page 18: Large Cabinet
Installation and Operations Manual DIAgRAM 4 Wiring Diagram | Freezer and Medium Temperature Cooler | Electric Defrost | Large Cabinet YELLOW... -
Page 19: Performance, Capacities And Specifications
Side Mount Packaged Refrigeration System Performance, Capacities and Specifications TABLE 2 Model PST | Cooler Application | Air Defrost | BTUH at 95°F Ambient Temperature Box Temperature Model 35°F PST070H6B* 6,641 PST090H6B* 8,643 PST131H6B* 1,448 PST147H6B* 14,081 TABLE 3 Model PST | Cooler Application | Electric Defrost | BTUH at 95°F ambient temperature Model 35°F Box Temperature PST066M6B*... -
Page 20: Dimensions
Dimensions DIAgRAM 5 Dimensions | Small Cabinet: 1-fan | Top view 13-3/8" 340 mm 30-1/2" 775 mm 28" 711 mm DIAgRAM 6 Dimensions | Small Cabinet: 1-fan | Side view 49-1/8" 1248 mm 46-1/4" 1175 mm 29-5/8" 752 mm 17-1/4" 20-1/4"... -
Page 21: Diagram 8 Dimensions | Large Cabinet: 2-Fan | Top View
Side Mount Packaged Refrigeration System DIAgRAM 8 Dimensions | Large Cabinet: 2-fan | Top view 36-1/2" 927 mm 34" 864 mm DIAgRAM 9 Dimensions | Large Cabinet: 1-fan | Side view 49-1/8" 1248 mm 46-1/4" 1175 mm 29-5/8" 752 mm 17-1/4"... -
Page 22: Replacement Parts By Interlink
Right source. Right parts. Right now. InterLink™ is your link to a complete line of dependable and certified commercial refrigeration parts, accessories and innovative electronic controls for all Heatcraft Refrigeration Products (HRP) equipment. At InterLink, we provide our wholesalers with a comprehensive selection of product solutions and innovative technologies for the installed customer base. -
Page 23: Warranty Statement
Heatcraft Refrigeration Products LLC hereunder, except as specifically set forth above and on the face hereof. It is expressly understood and agreed that Heatcraft Refrigeration Products LLC shall not be liable to buyer, or any customer of Buyer, for direct or indirect, special, incidental, consequential or penal damages, or for any expenses incurred by reason of the use or misuse by Buyer or third parties of said products. - Page 24 Heatcraft Refrigeration Products LLC 175 West Park Place Blvd., Stone Mountain, GA 30087 P: (800) 31-1881 • F: (770) 465-5990 • www.heatcraftrpd.com Since product improvement is a continuing effort, we reserve the right to make changes in specifications without notice.
