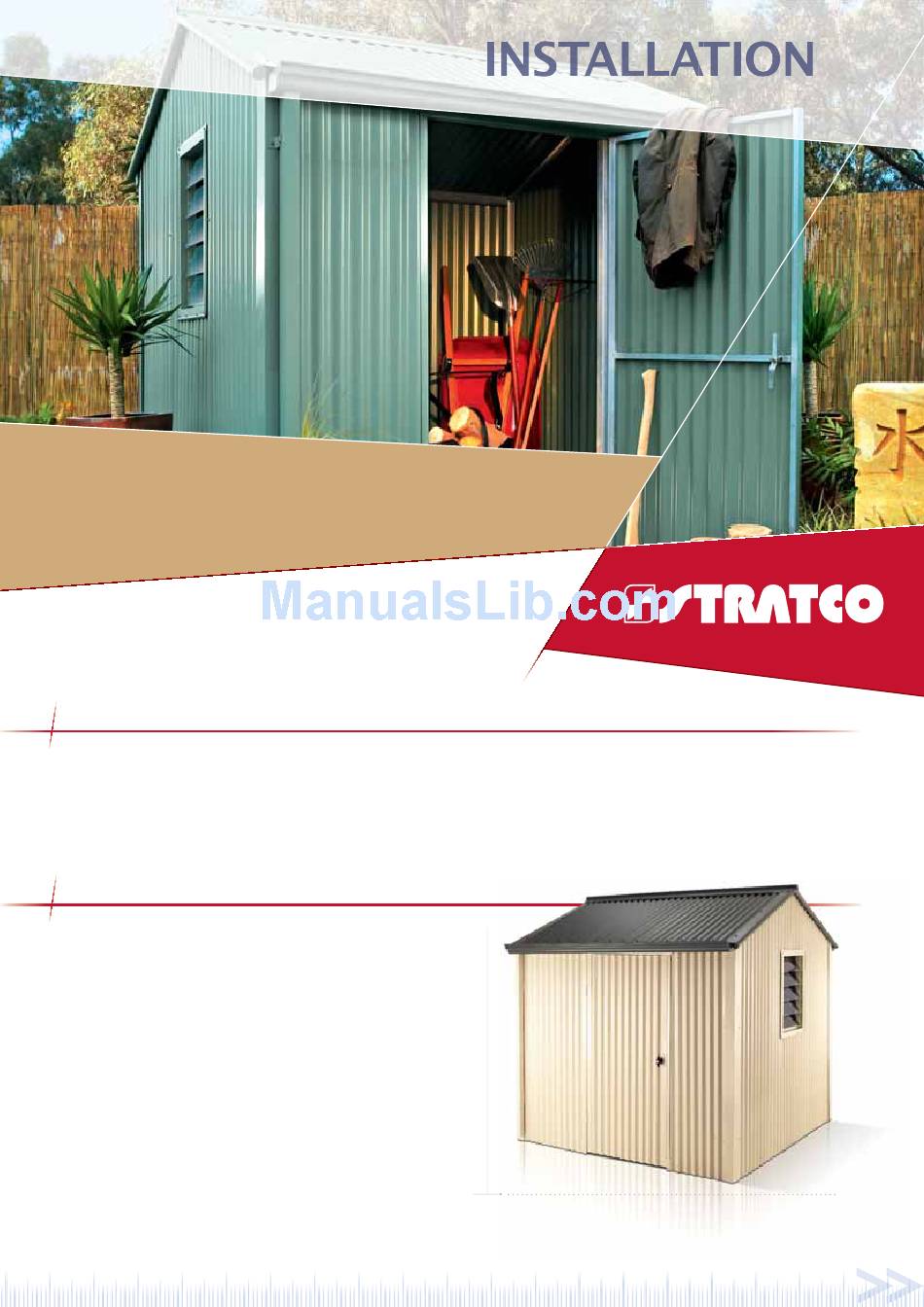

Handi-Heritage Shed
H1 MODEL
BEFORE YOU START
Carefully read these instructions and refer to them constantly during each stage of construction. If you do not have all
the necessary tools or information, contact Stratco for advice. Before starting, layout all components and check them
against the delivery docket. The parts description identifies each key part.
Double check all dimensions, levels and bolting locations before cutting, screwing or bolting structural members.
TOOLS REQUIRED
•
Tape Measure
•
Spirit Level
•
String Line
•
Post Hole Digger
•
Gloves
•
Ladder
•
Tin Snips
•
Power Drill
•
5/16" Hex Head Adaptor
•
Rivet Gun
•
Silicone Sealant
•
Concrete
G
G
G
G
G
U
U
U
U
U
I
I
I
D
D
D
D
D
E
E
E
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1 and is the answer not in the manual?

Questions and answers

Related Manuals for Stratco H1

Summary of Contents for Stratco H1

  • Page 1 Carefully read these instructions and refer to them constantly during each stage of construction. If you do not have all the necessary tools or information, contact Stratco for advice. Before starting, layout all components and check them against the delivery docket. The parts description identifies each key part.
  • Page 2 Each Heritage Garden Shed will include the components listed in the COMPONENT LIST and the PA DOOR KIT COMPONENT LIST. The additional Component Lists note the extra specific components required in order to complete the Heritage Garden Shed design variations. H1 HERITAGE GARDEN SHED COMPONENT LIST COMPONENT CARTNOTE DESCRIPTION CODE QTY.
  • Page 3 H1 HERITAGE GARDEN SHED COMPONENT LIST COMPONENT CARTNOTE DESCRIPTION CODE QTY. ROOF SHEETS CGI HER G/SHED .35 D/SIDE COLOUR CGIHGS35D## 6/1.355 DOOR LINTEL HER G/SHED DOOR LINTEL 1.2 GALV HDL12GA 1/0.930 DOOR JAMBS HER G/SHED DOOR JAMB 1.2 GALV HJA12GA 2/2.300...
  • Page 4 WINDOW KIT COMPONENT CARTNOTE DESCRIPTION CODE QTY. WINDOW LOUVRE WINDOW HER G/SHED COLOUR LWINHGS## GABLE END WINDOW KIT COMPONENT CARTNOTE DESCRIPTION CODE QTY. WINDOW LOUVRE WINDOW HER G/SHED COLOUR LWINHGS## END GIRTS HERITAGE G/SHED PURLIN 68 2260 GAL HGP0682260GA 1/2.260 BEAM BRACKET HERITAGE G/SHED BEAM BRACKET 68 GALV HGBB068GA...
  • Page 5 68 Outback Beam Ridge Knuckle Eaves Knuckle Beam Bracket Gable Wall Sheets Wall & Roof Sheets Ridge Capping Gable Door Barge Roll & Sheet Capping Door Jamb Door Lintel Header Bracket Barge Cap Door Lintel Gable Door Door Trim Corner Flashing Gutter Gutter Stop-End Flashing...

  • Page 6: Table Of Contents

    PLACE, AS THE LAST STEP IN THE CONSTRUCTION PROCESS. GABLE END ASSEMBLY Model Components H3 / H3 H1,2, & 4 Gable Door Gable Door 10x16 Hex head Component H1, 2, & 4 self-drilling screws or Gable or Gable Window Window Ridge knuckle Column Rafter...

  • Page 7: Column

    Installing an Upper Girt When both gable door header brackets are fastened to the rafters, the header girt can be inserted in to each A top girt is to be integrated into a gable end within bracket and secured with two 10x16 self-drilling screws H3 model units.
  • Page 8 Use two 10x16 self-drilling screws on each side as If including a window at the gable end of an H1, H2, or H4 illustrated in Figure 2.11. Also secure the jambs to the Heritage Shed an extra girt is required for strengthening.

  • Page 9: Beam Bracket

    Pre-cut angled walling sheets Notch cut in sheet as to fit around 10x16 Hex head lintel and jamb self-drilling screws Lintel Door jamb Figure 2.18 the wall sheets must be similarly trimmed to accommodate the window location (see ‘Window Installation’). Figure 2.15 Fixing Beam Brackets Be sure to align the top of the sheets (angled cut end) with...

  • Page 10: 10X16 Hex Head Self-Drilling Screws

    SECURING COLUMNS Fixing in to Ground with Concrete If fixing the columns into the ground, carefully tilt each side panel into position and place the columns in the holes M12x20 Hex head (Fig. 4.0). Temporarily brace in position and check the wall Self-drilling screws height is 1950mm.

  • Page 11: 10X16 Hex Head Self-Drilling Screws

    10x16 Hex head self-drilling screws Door lintel Door Jamb Side girt (top) Door girt Door jamb Door Lintel Opening Figure 5.1 Figure 5.4 Column Door girt 1 880mm Door girt 2 Figure 5.2 Door jamb Fit one of the door girts between the door jamb and end Beam bracket frame and secure with two 10x16 self-drilling screws as shown in Figure 5.3.
  • Page 12 DOOR ASSEMBLY & INSTALLATION Door Assembly Fix two 100x75 butt hinges to the door through the door Pan fix the 1840mm long corrugated sheet to the door flashing and frame with the 10x16 wafer head screws frame with 10x16mm self-drilling screws. Note that the provided (Figure 6.1).
  • Page 13 Figure 7.2 Figure 7.4 Note: When installing a double-door along a side wall in an H1 model, the wall sheets alongside the door frame will be created from a single sheet cut on-site. The widths of the Side Wall Sheets resultant sheets will be determined by the door girt widths.
  • Page 14 (Figure 8.0). The louvre window is to rest upon either the After the window opening has been created in the extra end girt at a gable-end (H1, H2, or H4) (See ‘Gable walling, the louvre window can be inserted and fastened End Assembly’), or nest against the top girt on any side...
  • Page 15 doors are closed and square, mark out the drop bolt position & create a locating hole in the ground. 10x16 Hex head Corrugated self-drilling screw sheet A pad-bolt must also be installed at the top of the second door. Secure the pad-bolt to the top of the door frame of the second door using two 10x16 wafer head screws (Figure 9.5).
  • Page 16 Gutter Installation Once the gutter brackets have been installed, roll the gutter bead onto the gutter bracket and clip the back of Crest fix the supplied gutter brackets 20mm from the the gutter into position. top of the wall sheets at 1200mm centres with 10x16 self-drilling screws as illustrated in Figure 10.1.
  • Page 17 Attaching Barge Rolls & Ridge Capping The barge roll must be fixed to the roof sheets at 600mm centres using 12x35 self-drilling screws with neoprene washers (Figure 11.0 & 11.3). Notch the end of the barge if a gutter has been fixed. Cap each length of barge with a painted post cap as shown in Figure 11.3.
  • Page 18 Figure 13.0 MAINTENANCE Your Stratco Handi-Garden Shed will maintain its good looks for even longer with a simple wash and wipe down. Cleaning should be performed as often as is required to remove any dirt, salt and pollutants.
