DUTCH GABLE
FREESTANDING CARPORT
STRATCO OUTBACK ASSEMBLY INSTRUCTIONS.
Your complete guide to building a
FREESTANDING Outback DUTCH GABLE CARPORT

BEFORE YOU START

Carefully read these instructions. If you do not have all the necessary tools or information,
contact Stratco for advice. Before starting lay out all components and check them against the
delivery docket. The parts description identifies each key part, and the component location
diagram indicates their fastening position.

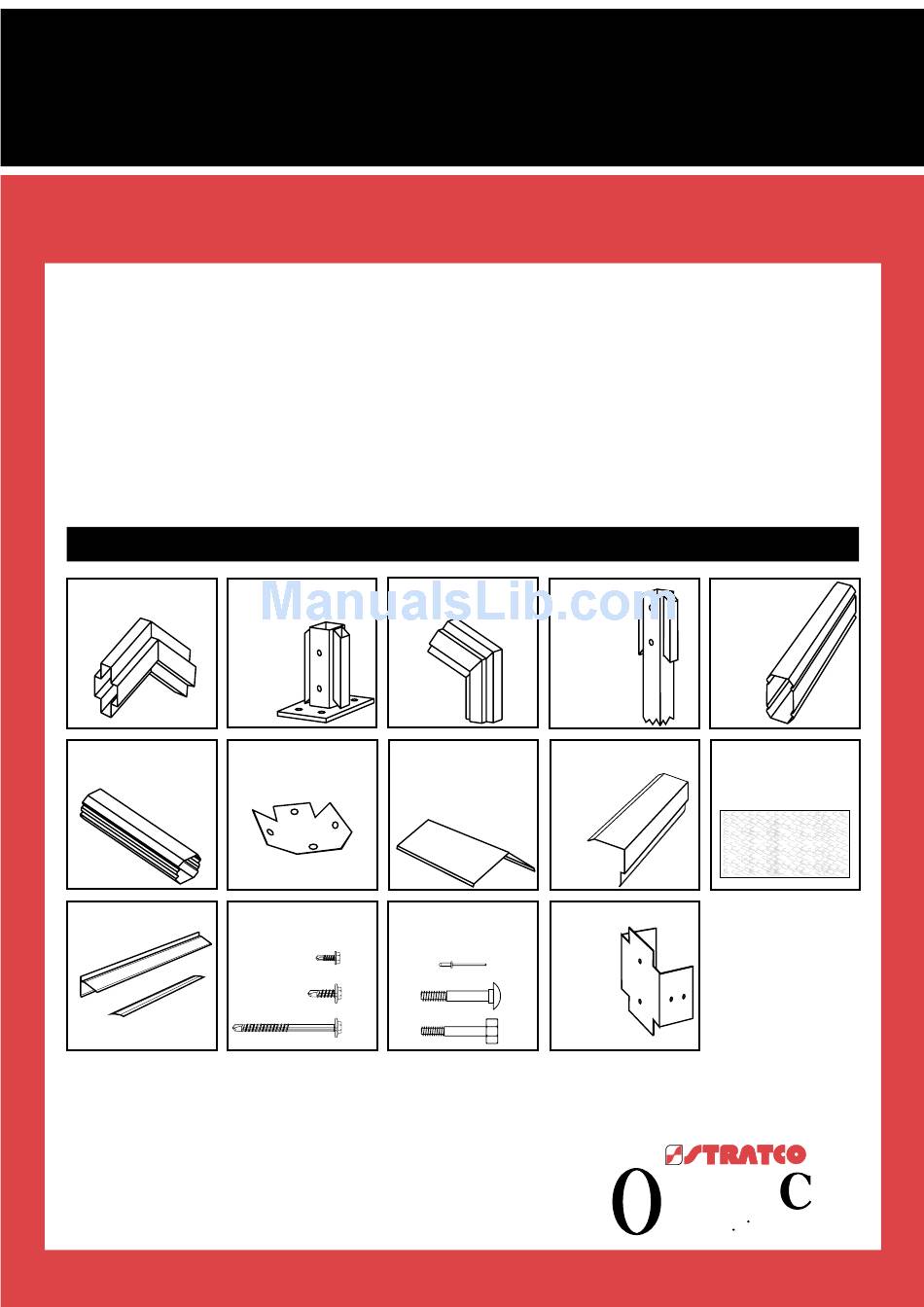

PARTS DESCRIPTION
RIDGE KNUCKLE
Slots inside the gable rafters to
form connection at the ridge
PURLINS
Purlins provide support for
cladding
WEATHER STRIP
Weather strip supports infill
panel and covers the sheet
ends at the collar tie
PANEL STRIPS
Panel strips attach to the
infill panel where applicable
®
FOOTING PLATE EAVES KNUCKLE
Slots inside column Slots inside gable rafter and
to form on concrete column to form connection at
footing connection. eaves.
HIP PLATE
RIDGE CAP
Connects purlins to
This flashing covers the roof
the hip rafter.
sheets at the gable ridge.
HIP FLASHING
Covers the roof sheet ends
along the hip rafter.
HEX HEAD SELF DRILLING BOLTS AND RIVETS
SCREWS Bolt types vary depending
Screw types vary depending upon upon the connection, ensure
the connection, ensure correct the correct fixings are used
screws are used
10 x 16
12 x 20
14 x 95
FOOTING COLUMNS AND
KNUCKLE RAFTERS
Slots inside Pre cut 120 outback
column to form beam make up
an in ground
rafters and columns
footing
connection
BARGE CAP INFILL PANELS
The barge cap covers Sufficient number of sheets are
provided, from which the required
the area where the
dutch gable infill panels can be
deck finishes at portal
frame cut.
68 mm PURLIN
BRACKET
This bracket
fastens end
purlin supports
in place and
front purlins to
end purlin
supports
