Outback
®
VERAnDAHS | PATIOS | CARPORTS
BEFORE YOU START
It is important to check your Local Government Authority requirements before the installation of your new Stratco Outback
the builder's responsibility to ensure any existing structure that an Outback Flat is being attached to is adequately reinforced to accommodate
the additional loads imposed by the verandah, patio or carport. Read these instructions thoroughly before starting your project and refer to
them constantly during each stage of construction. Contact Stratco for advice if you do not have the necessary tools or information.
Before starting, lay out the main components in order of assembly on the ground and check them against the delivery note. The 'Components'
section identifies each part of your Outback Flat Verandah or Carport and shows the relative location of the components.
Mark out the overall area of your verandah, patio or carport and ensure that it is free from obstructions. Beam to wall connections can cause
difficulty if they coincide with door and window openings, so avoid these in your design. Ensure there is reasonable access for materials and
working space and consider the disposal of run-off water. Check the column and beam positions on the ground; roughly check they are square
by measuring the diagonals, then mark out the column locations. If columns are to be 'in ground', dig the holes to Stratco specifications.
ADDITIONAL MATERIALS
The Outback kit does not include fixings to attach the unit to an existing
structure or concrete/masonry anchors for the column installation. If
required, they must be purchased as additional items.
TOOLS REQUIRED
• Drill & Hex/Phillips Head
Adaptors
• Rivet Gun
• Tape Measure
• Tin Snips
• Spirit Level
• Hack-Saw

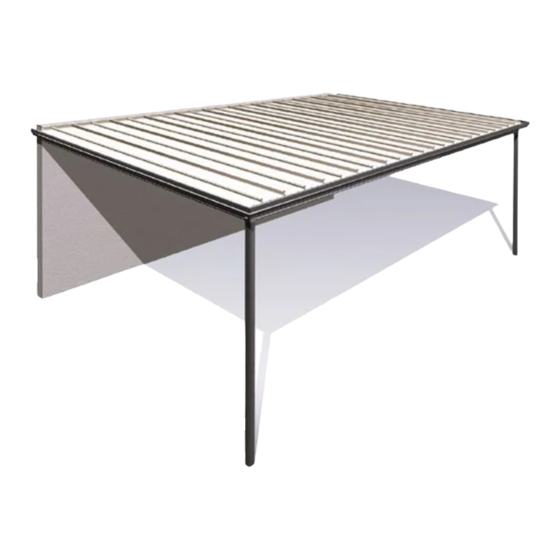

Flat Attached
• Post Hole Digger
• Silicone Gun
• Spanner or Ratchet
• Adjustable Construction Props
• Turn Up/Down Tool
• Concrete
• Ladder
INSTALLATION
GUIDE
Flat Verandah. It is
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stratco Outback Flat Verandah
Summary of Contents for Stratco Outback Flat Verandah
- Page 1 Check the column and beam positions on the ground; roughly check they are square by measuring the diagonals, then mark out the column locations. If columns are to be ‘in ground’, dig the holes to Stratco specifications.
- Page 2 COMPONENTS End Fascia Beam Front Fascia Beam Roofing Beam Fillers Outback Rooflite Beam In-Line ™ Connectors BIP foam Back Channel Bolted Footing Bracket Beams Post Bracket & Post Cap Beam End Cap Gutter & Downpipe Suspension Bracket Beam Bracket Columns Wall Bracket BACK CHANNEL INSTALLATION Back Channel...
- Page 3 Brackets Wall Bracket suspension Bracket For units attached to a wall, position the wall brackets where the beams meet A suspension bracket is used when a beam is suspended from the fascia. The the wall. The folded section on the tabs of the bracket is located at the top. The top tab of the bracket must be located between the fascia and the back channel.
- Page 4 intermediate Beams and Purlins If intermediate beams and/or purlins are required, they may be fitted at this two 10x16 hex head screws either side of each bracket. Continue this process stage or following installation of the columns. Work progressively from the first along the Outback unit until the final end fascia beam is fixed in place.
- Page 5 DECKING Turning the Decking Ends self-drilling screws per pan on supporting beams and three rivets per pan at While still at ground level, the ends of the decking need to be turned up or the back channel). Remove any swarf. down approximately 30 degrees using a turn up/down tool to aid in weather proofing.
- Page 6 Figure 9.1 MAINTENANCE Regular maintenance is essential to maintain the good looks of all Stratco steel products and to ensure you receive the maximum life-span possible. Washing with clean water must be frequent enough to prevent the accumulation of dust, salts, and pollutants that may reduce the life of the product. Stratco steel products that are regularly washed by rain require no additional maintenance.
