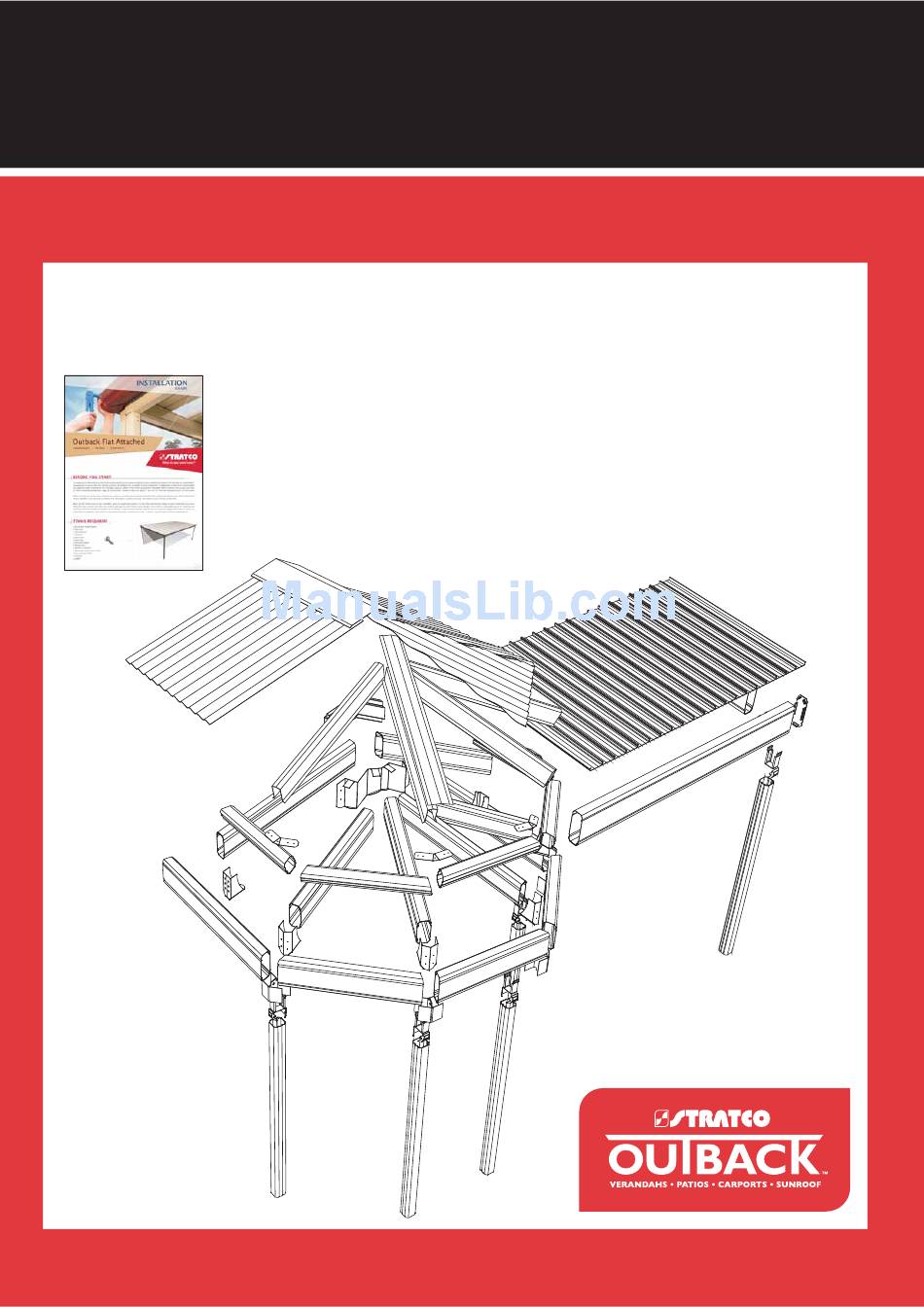

MULTISPAN GABLE
WITH GAZEBO END ATTACHED PATIO
STRATCO OUTBACK ASSEMBLY INSTRUCTIONS.
Your supplementary guide to building an
ATTACHED MULTISPAN GABLE VERANDAH or PATIO
®
WITH GAZEBO END
This set of instructions should be used in conjunction with the Stratco instruction brochure
'
Flat Verandahs Attached -
Verandah, Patio or Carport'.
BEFORE YOU START
Carefully read these instructions, along with the Stratco Flat Verandahs Attached
Instructions. If you do not have all the necessary tools or information, contact Stratco
for advice. Before starting lay out all components and check them against the
delivery docket. The parts description identifies additional gable parts, and the
component layout diagram indicates their fastening position.
Your complete guide to building an Attached Outback
®
Advertisement
Related Manuals for Stratco OUTBACK MULTISPAN GABLE
Summary of Contents for Stratco OUTBACK MULTISPAN GABLE
- Page 1 ® Your supplementary guide to building an ATTACHED MULTISPAN GABLE VERANDAH or PATIO WITH GAZEBO END This set of instructions should be used in conjunction with the Stratco instruction brochure ® ‘ Flat Verandahs Attached - Your complete guide to building an Attached Outback Verandah, Patio or Carport'.
-
Page 2: Parts Description
PARTS DESCRIPTION RIDGE KNUCKLE RAFTERS RAFTER TO SPACERS Slots inside the gable rafters to Gable Rafters VALLEY Are used to prevent the form connection at the ridge. consist of pre-cut BRACKET 150 attachment beam ® 120 Outback This bracket from crushing. fastens the beam. -
Page 3: Component Layout
COMPONENT LAYOUT GABLE FRAME (GAZEBO END) Ridge Cap Rafter to Valley Bracket ® Post Bracket Outback Deck Post Polycarbonate Sheet, ® Front Fascia Beam Outback Deck or CGI End Fascia Beam Purlin Gutter Ridge Knuckle Rafter Valley Beam Beam to Beam Bracket Notched Beam Filler... - Page 4 COMPONENT LAYOUT GAZEBO END Ridge Cap Rafter to Valley Bracket Polycarbonate Sheet, 67.5 Angled Inline Beam Connector ° ® Outback Deck or CGI Post Bracket Post Purlin Perimeter Bracket Purlin Intersection Cover Ridge Knuckle Hip Support Flashing Hip Rafter Gazebo Fascia Beam °...
-
Page 5: Additional Materials
2.1 ATTACHING ON SIDE TO HOUSE for alternative solutions. A Stratco Multispan attached on it’s side to a house is attached to the existing eaves overhang at the fascia. The first objective in the construction is to fix a structural side beam along the fascia or wall, to which the Gable Unit is attached. - Page 6 60x44x2.0 G450 GALVANISED BRACKET ARM CHANNEL T PIECE TIGHTEN TO 35Nm RAFTER TORQUE STRENGTHENING BRACKET M12 WASHER M12 SPRING WASHER M12 BOLT M12x40 CUP HEAD M12 NUT BOLT TIMBER RAFTER 450mm EAVES OVERHANG Insert the bracket through the fascia and fix with the channel(s) to the house rafter using M12 hex head bolts through the existing holes in the bracket and further up the channel(s) (Figure 7).
- Page 7 Recommended Channel Extension Eaves Channel Extension Web Overhang Overhang Beyond Birds Mouth (mm) (mm) (mm) 1800 1900 RAFTER STRENGTHENING BRACKET TIMBER RAFTER ATTACHED TO RAFTER WITH 6 (M12 HEX HEAD BOLTS) EAVES PURLIN FIXED TO CHANNEL 150 ATTACHMENT BEAM FIXED TO RAFTER USING RAFTER BRACKET WITH TWO 14 x 95 SCREWS...
- Page 8 is to be 153mm from the house fascia in order to accommodate a standard soaker flashing (refer Figures 24 and 25). Note: If your house gutter is wider than 150mm a custom OPEN GABLE RAFTER made soaker flashing will need to be ordered and the rafter set back adjusted to suit.
- Page 9 3.1 APEX BRACKET 150 VALLEY BEAM The Gazebo Apex bracket is to be fixed to the front face of the front gable frame at the apex. The bracket is to be located so the bottom edge of the apex bracket is in-line with the top edge of the bottom chamfer of the gable frame rafters.
- Page 10 Fix beam to beam brackets to the attachment beam (header beam) with two 10x16 hex head screws so they WALL clamp the beam filler to the beam (Figure 18). BRACKET The first valley beam is fastened over the beam to beam 15mm bracket with two 10x16 hex head screws either side while the opposite end is supported on adjustable construction...
- Page 11 A(Set Back) OPENING, O GAZEBO FASCIA BEAMS 1200 INLINE CONNECTOR 1500 1800 2100 2400 2700 3000 3300 3600 3900 4200 4500 1022 4800 1084 5100 M10 BOLT 1147 5400 1209 5700 12x20 HEX HEAD SCREW 1271 6000 1333 6300 1395 6600 With all the gazebo fascia beams secured, post brackets Table 1...
- Page 12 6.2. REAR INFILL SOAKER A rear header beam will be required if the unit includes infill FLASHING to the rear gable frame. For units attached at the rear with suspension brackets, the rear header is fixed between valley beams using beam to beam brackets. If fixed at the rear to an attachment beam (Figure 26), the attachment beam becomes the header (valley beams are fixed to the header beam) and if attached on the side the rear header is...
- Page 13 INFILL PANEL HEADER FLASHING 12x20 HEX HEAD SCREWS SPLIT TAIL SOFT PULL RIVET GAZEBO APEX BRACKET HOUSE GUTTER 150 ATTACHMENT BEAM FASCIA INTERNAL HIP STRENGTHENING RAFTER BRACKET 7.0 PERIMETER BRACKETS Perimeter brackets are to be located at the internal join of HIP RAFTERS the gazebo fascia beams so the bottom face of the bracket is in-line with the bottom of the lower groove in the beams...
- Page 14 RIDGE 12x20 HEX HEAD SCREWS RAFTER PURLIN PERIMETER BEAM BRACKET GAZEBO FASCIA BEAM VALLEY BEAM >20 >30 >20 STRAIGHT HIP RAFTER PURLINS PURLINS 9.0 PURLINS 67.5° MITRE CENTRE LINE 9.1 CUTTING PURLINS The location of all the purlins must be known before any purlins are to be cut.
- Page 15 Note: Purlin Intersection Caps are available as an optional RAFTER extra and can be used to fill the small gap between the purlin PURLIN and the template cut out. Caps are riveted to the side of the purlin cover. 12x20 HEX HEAD 12x20 HEX HEAD SCREWS SCREWS...
- Page 16 When using polycarbonate or corrugated roofing no back 12.0 ATTACH DECKING ® channel is required at the ridge. When Outback deck is used, back channel is required at the ridge, and is supplied 12.1 FLAT ROOF with the unit (Figure 40). Attach the decking to the flat roof verandah first as laid out Two piece back channel is required at the ridge.
- Page 17 DECKING OFFCUT FROM SECTION 1 GAZEBO END ® 13.0 RIDGE CAPPING 12.3.1 OUTBACK DECK ® For Outback deck a special two piece backchannel will be 13.1 MAIN RIDGE required and is to be located along the purlin cover before the decking is fastened in place (Figure 38). The flashings ®...
- Page 18 13.2 GAZEBO END CAPPING 14.1 HEADER BEAM WITH GUTTER Attach the header flashing to the rear gutter lip with rivets. Ridge cap is also used over all gazebo end rafters to Infill panels are fixed through the top groove of rafters and ®...
-
Page 19: Helpful Tips
Do not allow soil to remain in permanent contact with the columns, as corrosion will result in the base of the column. Refer to the “Selection, Use and Maintenance of Stratco Steel Products” brochure for complete details of the maintenance requirements. Double check all measurements and drilling locations before proceeding.
