Page 1: User Manual
Projection Products JAVES SLC-515SA Digital LCoS Projector User Manual CHINA PROJECTORS GROUP Room 207, 2/F., Block B, Seaview Estate, Watson Road, North Point, Hong Kong. Telephone: (852) 28875151 Fax: (852) 25031144 E-mail: jng@chinaprojectors.com Website: http://www.chinaprojectors.com... - Page 2 Warning Statement All contents subject to change without prior notice WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
OPERATION----------------------------------------------------------------------------------------------------------------------------------------------16 -----------------------------------------------------------------------------------------------------------------------------------------------16 TART UP ---------------------------------------------------------------------------------------------------------------------------16 WITCHING INPUT SIGNAL --------------------------------------------------------------------------------------------------------------------------------------------17 HUTDOWN ------------------------------------------------------------------------------------------------------------------------------------18 ENU OPERATION --------------------------------------------------------------------------------------------------------------------------------------20 ICTURE MENUS JAVES P ---------------------------------------------------------22 AFETY INSTRUCTIONS FOR CEILING MOUNTING OF YOUR ROJECTOR TROUBLE SHOOTING--------------------------------------------------------------------------------------------------------------------------------23 MAINTENANCE -----------------------------------------------------------------------------------------------------------------------------------------24 SPECIFICATIONS --------------------------------------------------------------------------------------------------------------------------------------25 ----------------------------------------------------------------------------------------------------------------------25 ROJECTOR SPECIFICATIONS DIMENSIONS --------------------------------------------------------------------------------------------------------------------------------------------26 WARRANTY ----------------------------------------------------------------------------------------------------------------------------------------------27... -
Page 4: Important Safety Instructions
Important safety instructions Operate the unit on 200 – 240 V AC, 50/60 Hz or 100 – 240 V AC, 50/60 Hz to DC 15V 7A power adaptor Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it further. -
Page 5: Introduction
Introduction Projector features The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use. The projector offers the following features: Quick cooling function for reducing projector cooling time Compact and portable unit High quality short throw lens Adjustable color balance control for data/video display 50W HID projection lamp with 4500K color... -
Page 6: Shipping Contents
Shipping contents The projector is shipped with the cables required for connection to a PC and video output devices. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. -
Page 7: Projector Exterior View

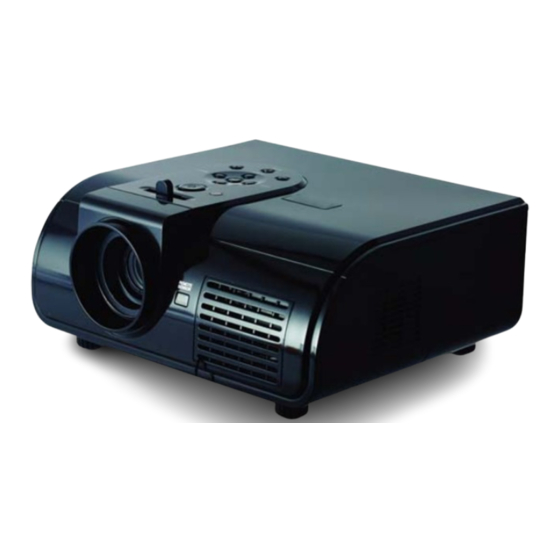

Projector exterior view Front / upper side 1. External control panel (See "External control panel" on page 9 for detailed information.) 2. Ventilation grill 3. Lens cap 4. Focus adjuster 5. Front IR remote sensor Left side view Refer to "Connection"... -
Page 8: Right Side View
Right side view 13. 5W mono speaker 14. Lamp cover Lower side 15. Lamp Cover 16. Ceiling mount and adjustable feet... -
Page 9: Controls And Functions
Controls and functions External control panel 1. Focus adjuster, lens focus can be adjusted by this key. 2. Power (Refer to "Start up" on page 25 "Shutdown" on page 30 for more information.) Turns the projector on or off. 3. Right key. (OSD control only) 4. -
Page 10: Remote Control
Remote control POWER - Turns the projector on or off. SOURCE - Sequentially selects the input signal Video, S-Video, Component Video, or RGB. MUTE – Audio mute on or off Display – Display the video standard and mode UP – Up key for OSD control LEFT –... -
Page 11: Remote Control Effective Range
Remote control effective range Infra-Red (IR) remote control sensors are located on the front and the back of the projector. The remote control must be held at an angle within 30 degrees of the projector’s IR remote control sensors to function correctly. -
Page 12: Positioning Your Projector
Positioning your projector Choosing a location Your projector is designed to be installed in one of four possible installation locations: 1. Floor in front of screen; 2. Ceiling in front of screen; 3. Floor at rear of screen; 4. Ceiling at rear of screen. Your room layout or personal preference will dictate which installation location you select. - Page 13 IV. Ceiling rear Select this location with the projector suspended upside-down from the ceiling behind the screen. Note that a special rear projection screen and the Thomson Projector Ceiling Mounting Kit are required for this installation location.
-
Page 14: Connection
Connection When connecting a signal source to the projector, be sure to: 1. Turn all equipment off before making any connections. 2. Use the correct signal cables for each source. 3. Ensure the cables are firmly inserted. In the connections shown below, some cables may not be included with the projector (see "Shipping on tents"... - Page 15 methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below: Best video quality The best available video connection method is Component Video (not to be confused with composite Video). Digital TV tuner and DVD players output Component Video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) Video.
-
Page 16: Operation
Operation Start up 1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the Power indicator on our projector adapter lights orange after power has been applied. 2. -
Page 17: Shutdown
Shutdown 1. Press Power to turn the projector off. 2. The Power indicator light flashes green and the lamp shuts down, the fans continue to run for approximately 45 seconds to cool down the projector. To protect the lamp, the projector will not respond to any commands during the cooling process. To shorten the cooling time, you can also activate the Quick cooling function. -
Page 18: Menu Operation
Menu operation Menu system OSD MENU1 Video S-Vide YCbCr/YPbPr Dynamic Static Theater Game Front/Up Front/Down Rear/Up Rear/Down OSD Menu 2 0 to 100 Brightness (Default 50) 0 to 100 Contrast (Default 50) -
Page 19: Osd Menu
0 to 100 Color (Default 50) OSD Menu 3 0 to 100 Hue (Default 50) English French German Spanish Portuguese Italian System Default... -
Page 20: Picture Menus
Picture menus Some picture adjustments are available only when certain input sources are in use. FUNCTION (Default setting DESCRIPTION / Value) Source Input 1. Video Input: RCA composite video 2. S-Video Input: Mini DIN5 S-Video 3. YCbCr/YPbPr Input: 3 RCA component video 4. - Page 21 Contrast Adjusts the degree of difference between dark and light in the image. The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.
-
Page 22: Safety Instructions For Ceiling Mounting Of Your Javes Projector
If you use a non-JAVES brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws. -
Page 23: Trouble Shooting
Trouble shooting THE PROJECTOR DOES NOT TURN ON. Cause Remedy There is no power from the power cable. Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched Attempting to turn the projector on again during the Wait until the cooling down process has completed. -
Page 24: Maintenance
Maintenance Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing. Cleaning the lens Clean the lens whenever you notice dirt or dust on the surface. -
Page 25: Specifications
Specifications Projector specifications * All specifications are subject to change without notice. Display Technology Single Liquid Crystal on Silicon (LCoS) Display 800 x 600 x RGB Resolution Contrast Ratio 600:1 (Full On/Full Off) Lamp Type and Life 50W HID, 3000 hours STD Maximum Resolution Video: 1080p (1920 x 1080) PC: SVGA (800 x 600) -
Page 26: Dimensions
Dimensions Unit: mm... -
Page 27: Warranty
Warranty Limited Warranty JAVES warrants this product against any defects in material and workmanship, under normal usage and storage. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, JAVES’s only obligation and your exclusive remedy shall be replacement of any defective parts (labor included).
