Specifications - Icom IC-M323 Specification

VHF MARINE TRANSCEIVER
New Intuitive User Interface
Icom's common Marine Family User Inter-
face provides simple operation for the boat
owner. A rotary selector, directional keypad
provides intuitive operation. The high defi -
nition dot-matrix display allows all informa-
tion to be clearly viewed.
Built-in Class D DSC
The built-in DSC watch function moni-
tors Ch. 70 (DSC channel) activity, even
while you are receiving another channel.
DSC functions include: distress, individual,
group, all ships, urgency, safety, position
request/report, polling request and DSC
test calls.
Common NMEA Interface
When connected to an external GPS re-
ceiver, current position and time are shown
on the IC-M323's display. When receiving
DSC information from another vessel, the
IC-M323 can transfer it to a navigational
device via NMEA 0183 connectivity.

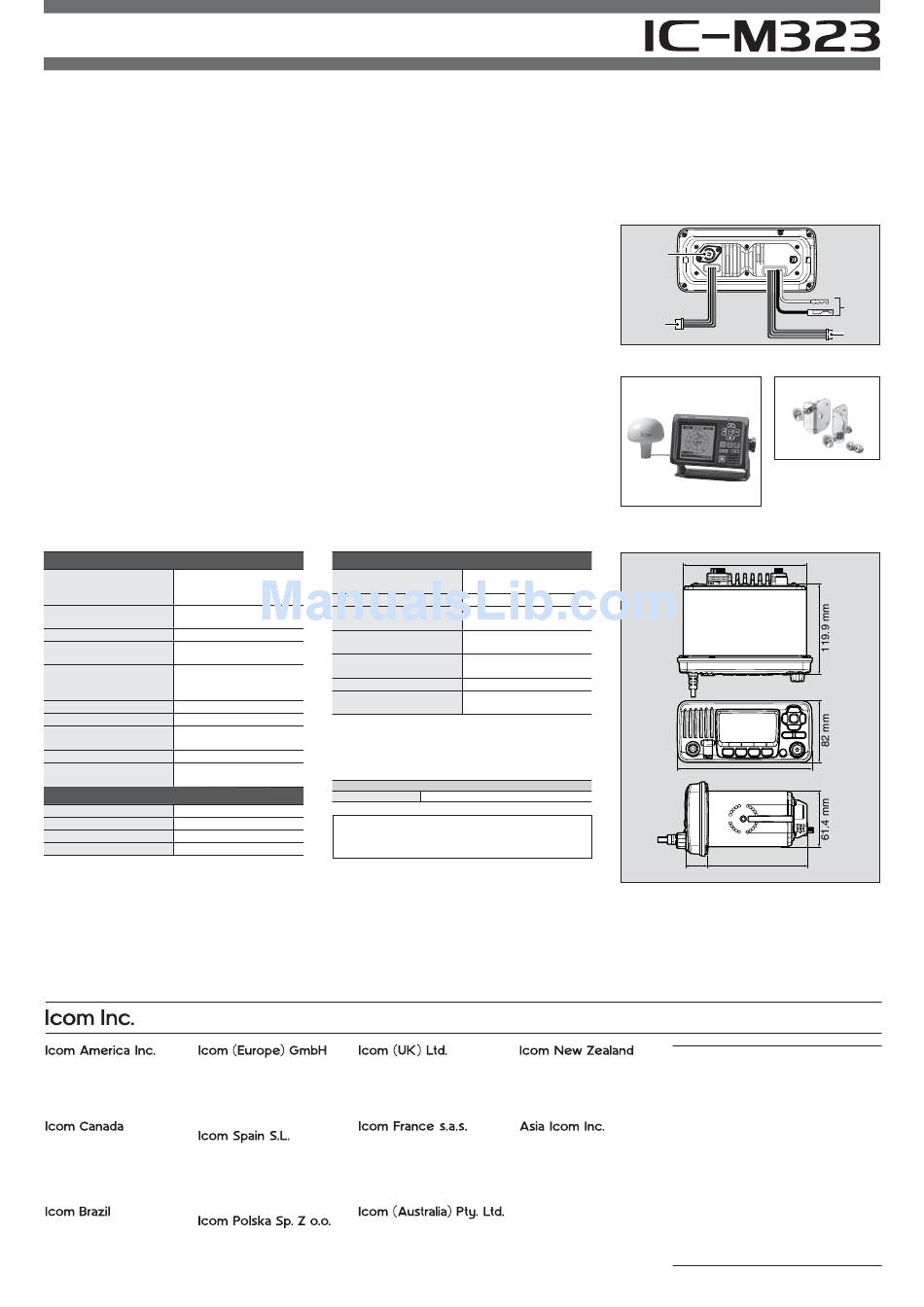

SPECIFICATIONS

GENERAL
Frequency range Tx 156.000–161.450MHz
Rx 156.000–163.425MHz
CH70 156.525MHz
Usable channels INT, USA* channels
* Available depending on version
Type of emission 16K0G3E (FM)
Power supply requirement 13.8V DC nominal
(10.8–15.6V DC)
Current drain
Tx 25W output 5.5A
Rx Max. audio 1.5A
Operating temperature range –20°C to +60°C
Antenna impedance 50Ω
(SO-239)
Dimensions (W×H×D) 180×82×119.9mm
(projections not included)
Weight (approx.) 1.2kg
NMEA in/out formats RMC, GGA, GNS, GLL,
DSC, DSE
TRANSMITTER
Output power 25W, 1W
Max. frequency deviation ±5.0kHz
Frequency stability Less than ±1.5kHz
Spurious emissions Less than 0.25μW
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia, Japan and/or other countries.
MarineCommander and AQUAQUAKE are trademarks of Icom Inc. (Japan). All other trademarks are the properties of their respective holders.
1-1-32, Kami-minami, Hirano-ku, Osaka 547-0003, Japan
2380 116th Avenue NE, Communication Equipment
Bellevue, WA 98004, U.S.A. Auf der Krautweide 24
Phone : +1 (425) 454-8155
65812 Bad Soden am Taunus, Germany
Fax : +1 (425) 454-1509 Phone : +49 (6196) 76685-0
E-mail : sales@icomamerica.com Fax
URL : http://www.icomamerica.com E-mail : info@icomeurope.com
URL
Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada Ctra. Rubi, No. 88 "Edificio Can Castanyer"
Phone : +1 ( 604 ) 952-4266
Bajos A 08174, Sant Cugat del Valles,
: +1 ( 604 ) 952-0090
Fax
Barcelona, Spain
E-mail : info@icomcanada.com Phone : +34 ( 93 ) 590 26 70
URL : http://www.icomcanada.com Fax
E-mail : icom@icomspain.com
URL
Rua Itororó, 444 Padre Eustáquio
Belo Horizonte MG,
80-286 Gdansk, Jaskowa Dolina St. 75, Poland
CEP: 30130-150, Brazil Phone : +48 ( 58 ) 551 0484
Phone : +55 (31) 3582 8847
Fax
: +55 (31) 3582 8987
Fax E-mail : icompolska@icompolska.com.pl
E-mail : sales@icombrazil.com
URL
Compatible with MA-500TR
Class B AIS Transponder
The IC-M323 can be integrated with the
MA-500TR Class B AIS Transponder al-
lowing you to transmit DSC individual
calls to a selected vessel instantly with-
out manual MMSI entry; very handy if you
are waiting to contact vessels on the AIS
screen, an essential safety feature in an
emergency.
IPX7 Waterproof Protection
The IC-M323 withstands submersion in up
to 1.0m depth of water for 30 minutes. It is
equivalent to the IPX7 standard.
Favorite Channel Function
This function allows for quicker channel
selection. Set the "Tag" channel to the
channels used most often. When push-
ing the up/down buttons on the hand mi-
crophone, only the tagged channels are
selected, while untagged channels are
skipped.
RECEIVER
Sensitivity
Squelch sensitivity
Adjacent channel
selectivity
, 16K0G2B (DSC)
Spurious response
Intermodulation
Hum and noise
Audio output power
(at 10% distortion, 4Ω load)
Measurements made in accordance with EN 301
025-2, -3. All stated specifi cations are subject to
change without notice or obligation.
Applicable IP Rating
Ingress Protection Standard
Water
Supplied accessories:
• Hand microphone, HM-200B/SW • DC power cable
• Mounting bracket kit
Phone: +81 (06) 6793 5302
Blacksole House, Altira Park,
Herne Bay, Kent, CT6 6GZ, U.K.
Phone : +44 (0) 1227 741741
Fax : +44 (0) 1227 741742
: +49 (6196) 76685-50 E-mail : info@icomuk.co.uk
URL : http://www.icomuk.co.uk
: http://www.icomeurope.com
Zac de la Plaine,
1 Rue Brindejonc des Moulinais, BP 45804,
31505 Toulouse Cedex 5, France
Phone : +33 (5) 61 36 03 03
Fax : +33 (5) 61 36 03 00
: +34 ( 93 ) 589 04 46 E-mail : icom@icom-france.com
URL : http://www.icom-france.com
: http://www.icomspain.com
Unit 1 / 103 Garden Road,
Clayton, VIC 3168 Australia
Phone : +61 (03) 9549 7500
: +48 ( 58 ) 551 4720
Fax : +61 (03) 9549 7505
E-mail : sales@icom.net.au
URL : http://www.icom.net.au
: http://www.icompolska.com.pl
–5dBμ
Main emf typ. (20dB SINAD)
DSC –4dBμ
emf typ. (1% BER)
Less than –2dBμ
Main emf
More than 70dB
Main
DSC More than 73dBμ emf (1% BER)
More than 70dB
Main
DSC More than 73dBμ emf (1% BER)
Main More than 68dB
DSC More than 68dBμ
emf (1% BER)
More than 40dB
More than 2W
IPX7 (Waterproof protection)
Fax: +81 (06) 6793 0013
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : +64 (09) 274 4062
Fax : +64 (09) 274 4708
E-mail : inquiries@icom.co.nz
URL : http://www.icom.co.nz
6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899
Fax : +886 (02) 2559 1874
E-mail : sales@asia-icom.com
URL : http://www.asia-icom.com
And More
• MarineCommander ™ compatible
• AquaQuake ™ water draining function
• Dual/tri-watch function for monitoring
Ch.16 and/or call channel
• Black and super white versions available.
VHF Antenna
NMEA IN/OUT
OPTIONS
CLASS B AIS TRANSPONDER FLUSH MOUNT KIT
MB-132
HM-200B/SW
HAND MICROPHONE
MA-500TR
Same as supplied.
164.1 mm
180 mm
25.3 mm 109.7 mm
Count on us!
www.icom.co.jp/world
Your local distributor/dealer:
12HS028A © 2012–2013 Icom Inc.
13.8V DC
Audio output
Printed in Japan
