Liesegang
e
motion4100
l
User's Manual
WXGA DLP Front Projector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-motion4100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Liesegang e-motion4100

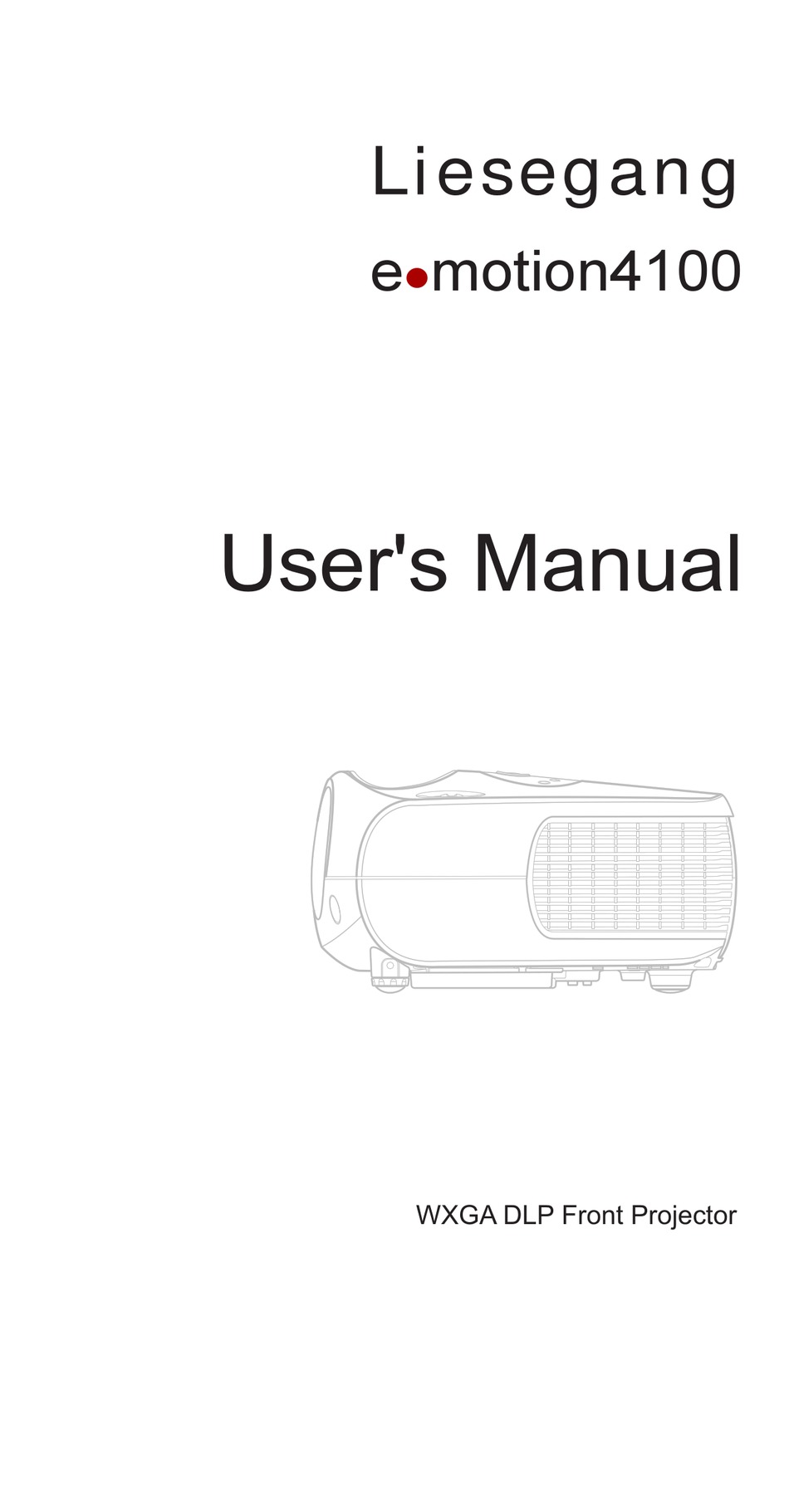

  • Page 1 Liesegang motion4100 User's Manual WXGA DLP Front Projector...
  • Page 2: Preface

    ENGLISH ABOUT THIS MANUAL This manual is for use with the Liesegang e.motion4100 DLP Projector. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice.
  • Page 3: Notices

    Notices WARNING! To meet FCC requirements, a shielded power cord is required in order to prevent interference. It is essential that only the supplied power cord is to be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not approved by the party responsible for compliance could void your authority to operate the equipment.
  • Page 4 PRODUCT DISPOSAL This projector utilizes a tin-lead solder, UHP Lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. Caution regarding the exhaust of the projector. Do not put Air Conditioners or Flowers near the exhaust Exhaust Vent vent.
  • Page 5: Table Of Contents

    Contents Preface ................1 Notices ................2 Introduction Package Contents ............. 7 Features ................8 Components ..............9 Projector (Front and Top View) ......9 Projector (Rear View) .......... 10 Remote Control ........... 11 Using the Remote Control ..........12 Available Range of the Remote Control ....
  • Page 6 Easy to Use Functions Selecting the Picture Display Mode......... 38 H-V Position Function............41 White Enhance ..............43 Selecting the Economy Mode.......... 43 Setting the Power Save........43 Automatic Power Off Function......... 44 Source Select ..............44 OSD Timeout..............45 OSD Blending..............
  • Page 7: Introduction

    Introduction...
  • Page 8: Package Contents

    Package Contents Open the package and ensure that you have the following items: COMPONENT 1 COMPONENT 2 VIDEO/S-VIDEO DVI/PC Remote control Two “AAA” size batteries Power cord(By country) Ring cap cover set Quick Guide Operation manual (this manual) Optional accessories HD 15-pin VGA to HD 15-pin VGA cable RS-232C cable (3M) DVI-D to DVI-D cable (3M)
  • Page 9: Features

    Features • Newly developed 0.65-inch DMD™ chip provides significantly improved optical efficiency and excellent contrast ratio. • Newly developed LVDS (Low voltage differential signal) chip eliminates Color Breaking phe- nomena common with previous generation DLP™ projectors. • Use of high-output lamp realizes both high color purity and high brightness. Natural images made possible by high color reproducibility can be created with high-brightness, powerful expression capabilities.
  • Page 10: Components

    Components Projector (Front and Top View) Focus ring Zoom ring Adjust focus. Adjust screen display Focus Zoom Lens shift dial (Vertical) Lens shift dial (Horizontal) ENTER button LENS SHIFT For setting the selected items Adjustment buttons LENS SHIFT ENTER or adjustments from the menu. ( , , , ) For selecting menu items.
  • Page 11: Projector (Rear View)

    Projector (Rear View) Input 3 Input 4 Video/S-Video DVI/PC Terminal for connecting video Terminal for Digital Video equipment with an S-video and Interface, computer and RGB Composite Video. signals. VIDEO S-VIDEO Pr/Cr Pb/Cb Pr/Cr Pb/Cb Input 1 Input 2 Component 2 Component 1 Terminals for component YPbPr/ RS-232...
  • Page 12: Remote Control

    Remote Control Power (ON/OFF) button For turning the power on and off. MENU button Press this button to enter the OSD menus. Adjustment buttons ( , , , ) For displaying adjustment ENTER button For setting the selected items and setting screens. or adjustments from the menu.
  • Page 13: Using The Remote Control

    Using the Remote Control Available Range of the Remote Control The remote control can be used to control the projector within the ranges shown in the illustration. 23'(7 m) 30° Note 45° • The signal from the remote control can be 30°...
  • Page 14: Connections And Setup

    Connections and Setup...
  • Page 15: Connecting The Projector To Other Devices

    Connecting the Projector to Other Devices Before Setting Up Note • Before connecting, be sure to turn off both the projector and the devices to be connected. After making all connections, turn on the projector and then the other devices. When connecting a computer, be sure that it is the last device to be turned on after all the connections are made.
  • Page 16: Connecting To Video Equipment

    Connecting to Video Equipment Connecting to Video VCR or other video equipment Equipment To S-video output terminal Using an S-video or a Composite Video Cable To Video output terminal Using an S-video or a composite video cable, a VCR, laser disc player or other video equipment can be connected to INPUT 3 input terminals.
  • Page 17: Connecting To Component Video Equipment

    Connecting to Component To analog component Video Equipment output terminal Using a Component Cable (INPUT 1 or 2) Pb/Cb Pr/Cr Pb/Cb Pr/Cr S-VIDE VIDEO RS-23 in Taiwa Made Use a component cable when connecting to the lamp d down repla cing coole r while...
  • Page 18: Connecting By Using A Dvi-D To Hdmi Cable

    Connecting by Using a DVI- D to HDMI Cable Optional DVI-D to HDMI accessory cable Use a DVI to HDMI cable when connecting HDMI video equipment such as DVD players To HDMI output terminal to INPUT 4 terminal. Connect a DVI-D to HDMI cable to the projector.
  • Page 19: Connecting The Projector To A Computer

    Connecting the Projector to a Computer Connecting to a Computer Optional Connect the projector to the computer HD 15-pin accessory VGA cable using the HD 15-pin VGA cable. • Secure the connectors by tightening the thumbscrews. Notebook Computer HD 15-pin VGA cable (sold separately) Note To VGA output terminal...
  • Page 20: Connecting The Thumbscrew Cables

    Connect the projector to the computer using the DVI-D cable (sold separately). Optional DVI-D cable accessory Note To DVI Digital output terminal Desktop Computer • Select the input signal type of the video equipment. Pb/Cb Pr/Cr Pb/Cb Pr/Cr S-VIDE VIDEO RS-23 in Taiwa Made...
  • Page 21: Using The Adjustment Feet

    Using the Adjustment Feet The height of the projector can be adjusted using the adjustment feet when the surface the projector is placed on is uneven or when the screen is slanted. The projection of the image can be made higher by adjusting the projector when it is in a location lower than the screen.
  • Page 22: Adjusting The Lens

    Adjusting the Lens The image is focused and adjusted to the desired size using the focus ring or zoom ring Focus ring on the projector. Focus Zoom ring Zoom Zoom is adjusted by rotating the Zoom ring zoom ring. Focus is adjusted by moving the Focus ring focus ring.
  • Page 23: Setting Up The Screen

    Setting up the Screen Position the projector perpendicular to the screen with all feet flat and level to achieve an optimal image. Note • The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
  • Page 24 Screen Size and Projection Distance  When using a wide Distance from Lens cen- screen (16:9) Screen Size (16:9) Projection Distance ter to the lower edge of the image In case of displaying the Diagonal Wide Hight upper lower 16:9 picture on the whole 300"...
  • Page 25: Screen Size And Projection Distance

    Projection from behind the screen Projecting a Reversed/Inverted Image Place a translucent screen between the projector and the When using the default setting. audience. On-screen Display Reverse the image by setting “Rear” for “PRJ Mode” in the “Options” menu. The image is reversed. Projection using a mirror Place a mirror (normal flat type) in front of the lens.
  • Page 26: Basic Operation

    Basic Operation...
  • Page 27: Image Projection

    Image Projection Basic Procedure Connect the required external equipment to the projector before operating the following procedures. Info • The language preset at the factory is English. If you want to change the on- screen display to another language, reset the language according to the procedure on page 28.
  • Page 28 Press on the projector to Power button INPUT select the INPUT mode. MENU button buttons Note EXIT button COMPONENT 1 Component 1 • When a signal is not received, button Component 2 COMPONENT 2 “Searching” will be displayed. button VIDEO/S-VIDEO Video/ About the INPUT modes S-Video button...
  • Page 29: Selecting The On-Screen Display Language

    Selecting the On-screen Main Menu Display Language • The on-screen display language of the projector can be set to English, Français, Italiano, Deutsch, Español, 中文 , 日本語 , 한국어 . Press “MENU”. • The menu will be displayed. Press to select “Language”.
  • Page 30: Menu Bar Items

    Menu Bar Items This list shows the items that can be set in the projector. Composite Video/S-Video, DVI Mode Picture Brightness -50 ~ +50 Options White Enhance ON/OFF Contrast -50 ~ +50 ECO mode ON/OFF Color -64 ~ +64 Auto Power Off ON/OFF Tint -64 ~ +64...
  • Page 31 PC/Component 1&2 Mode Options White Enhance ON/OFF Picture Brightness -50 ~ +50 Contrast -50 ~ +50 ECO mode ON/OFF Color -64~+64 Auto Power Off ON/OFF (PC Hide) Source Select Manual/Auto Tint -64~+64 (PC Hide) OSD Timeout 5. 15. 60 secs Softest, Soft, Normal, Sharp, Sharpness Sharpest...
  • Page 32: Using The Menu Screen

    Using the Menu Screen This projector has one set of menu screens that allow you to adjust the image and various projector settings. You can operate the menus from the ENTER projector or remote control using the following procedure. STATUS Menu Selections EXIT MENU...
  • Page 33: Adjusting The Picture

    Adjusting the Picture You can adjust the projector's picture to Main Menu your preferences with the following picture settings. Adjusting Image Preferences Selected item Description For adjusting the Brightness For lower brightness For higher brightness brightness of an image For adjusting the contrast Contrast For lower contrast For higher contrast...
  • Page 34 Color Use this option to adjust the color intensity of the image. Tint Use this option to adjust the tint of your image. Press to make the image more green. Press to make the image more purple. Sharpness Use this option to adjust the clarity and focus of the image. Color TEMP Use this option to set the color temperature of the image.
  • Page 35 Gamma Use this option to adjust the gamma correction of the image. Default setting is 2.2. Gamma correction provides seven non-linear gamma corrections 1.0, 1.5, 1.8, 2.0, 2.2, 2.35, 2.5, and 2.8. White Balance The contrast and brightness for each colour of the RGB Gain & Offset values in DLP can be individually adjusted.
  • Page 36 Picture setting This function stores Brightness, Contrast, Color, Tint, Sharpness, Gamma, Color Temp, Color Type, and White Enhance set in “Picture”. Each stored setting is reassigned to each input mode. Select “Picture Setting” from the “Picture” menu on the menu screen. For operating the menu screen, see page 31.
  • Page 37: Adjusting Computer Images

    Adjusting Computer Images (Computer Source Signal Only) Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen. When Auto Tune is OFF When “Auto Tune” is “OFF”, Main Menu interference such as flickering or vertical stripes may occur when displaying tilings or vertical stripes.
  • Page 38: Easy To Use Functions

    Easy to Use Functions...
  • Page 39: Selecting The Picture Display Mode

    Selecting the Picture Display Mode This function allows you to modify or customize the picture display mode to enhance the input image. Depending on the input signal, you can choose “Standard”, “LetterBox”, “Anamorphic” or “Pixel to Pixel” image. Switching the Picture Display Using Different input signals Press on remote or...
  • Page 40 VIDEO Standard Letterbox Anamorphic Pixel to Pixel 480i 640X480i 480P 640X480P 576i 768X576i For 4:3 576P 768X576 1280X720 1280X720 768X576P aspect ratio NTSC 640X480 768X576 SECAM 768X576 480P 768X576 1280X720 720X480 1280X720 576P 768X576 1280X720 720X576 For 16:9 aspect ratio 720P 1280X720 1080i...
  • Page 41 COMPUTER Standard Anamorphic Pixel to Pixel VGA(640X480) 960X720 1280X720 640X480 For 4:3 SVGA(800X600) 960X720 1280X720 800X600 aspect ratio XGA(1024X768) 960X720 1280X720 1024X768 Output screen image Input Signal Standard Anamorphic Pixel to Pixel For 4:3 aspect ratio (640x480) SVGA For 4:3 aspect ratio (800x600) For 4:3 aspect ratio (1024x768)
  • Page 42: H-V Position Function

    H-V Position Function This function enables you to center the display vertically and horizontally. Press “ ” or “ ” of the Main Menu H Position, the display will move to the left or the right. Press “ ” or “ ” of the Main Menu V Position, the display will move upward or downward.
  • Page 43 H-V Keystone Function Correcting Trapezoidal Distortion and Main Menu Adjusting Vertical Size of the picture. This function allows for Keystone correction. Note • When the image is projected either from top or from bottom toward the screen at an angle, the image becomes distorted trapezoidally.
  • Page 44: White Enhance

    White Enhance Use this option to adjust: the color: white Main Menu bright or dark. Note • ON Emphasizes the bright portions of images. • OFF Disables “White Enhance”. Selecting the Economy Mode These functions allow you to reduce the power consumption of the projector. Setting the Power Save Select “ON”...
  • Page 45: Automatic Power Off Function

    Automatic Power Off Function When an input signal is not detected or you Main Menu don't press any input button on Keypad or remote for more than 15 minutes, the projector will automatically turn off if set to “ON”. Auto Power Off function will be disabled when it is set to “OFF”.
  • Page 46: Osd Timeout

    OSD Timeout OSD Timeout is used to set how long the OSD Main Menu will stay open if no buttons are pressed. OSD Timeout...
  • Page 47: Osd Blending

    OSD Blending This function allows you to set the transparency of the OSD menu. When set to transparent, you can see the image behind the menu. Select “OSD Blending” from the Main Menu “Options” menu on the menu screen. For operating the menu screen, see page 31.
  • Page 48: Deinterlace

    Deinterlace This function allows you to determine the type of incoming video content-film, static interlaced video and moving interlaced video. Different algorithms are applied for each of the content types. Select “Deinterlace” from the Main Menu “Options” menu on the menu screen. For operating the menu screen, see page 31.
  • Page 49: Reset

    Reset Main Menu Select this option to set all items in the “Option” menu to the factory default values. Lamp Timer Reset Main Menu Lamp Timer Reset is used to reset the lamp counter. You should reset the Timer after you install a new lamp.
  • Page 50: Status Screen

    Status Screen The Status screen displays information about the current input signal. Main Menu Factory reset Main Menu The Logo will be shown for about 20 seconds, then the projector will be reset. Note • The Logo will be shown about 20 seconds, and then the projector will be reset.
  • Page 51 NOTES...
  • Page 52: Appendix

    Appendix...
  • Page 53: Maintenance

    Maintenance Cleaning the projector Unplug the power cord before cleaning the projector. Avoid using benzene or thinner, as these can damage the finish on the cabinet and operation panel. Do not use volatile agents such as insecticides on the projector. Do not leave rubber or plastic objects in contact with the projector for long periods as they may damage the finish of the projector.
  • Page 54: Cleaning The Ventilative Holes

    Cleaning the Ventilative Holes • This projector is equipped with ventilative Side and Rear view Bottom view holes to ensure the optimal operating condition of the projector. • Periodically clean the ventilative hole by vacuuming it off with a vacuum cleaner. •...
  • Page 55: About The Lamp

    About the Lamp The projector lamp has a life of 2000 hours. Maintain proper ventilation to keep the lamp operating throughout its lifetime. Do not subject the projector to unnecessary vibration to ensure that the lamp does not break. It is recommended that the lamp (sold separately) be replaced after approximately 2,000 cumulative hours of use or when you notice a significant deterioration in the picture and color quality.
  • Page 56: Temperature Led (Over Temperature)

    Temperature LED (Over Temperature) The over temperature alarm LED on the control panel alerts you when the projector lamp becomes too hot. ENTER Temperature LED STATUS EXIT MENU INPUT If the LED illuminates during operation, the lamp will shut off and the cooling fans will continue to run for approximately two minutes.
  • Page 57: Removing And Installing The Lamp Unit

    Removing and Installing the Lamp Unit Follow these instructions to replace the lamp. • Be sure to remove the lamp unit by the handle. Be sure not to touch the glass surface of the lamp unit or the inside of the projector. •...
  • Page 58: Resetting The Lamp Timer

    4. Remove the lamp unit. • Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. 5. Insert the new lamp unit. • Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws. •...
  • Page 59: Connecting Pin Assignments

    Connecting Pin Assignments DVI-D port: 25 pin connector • DVI Digital INPUT Pin No.Signal Pin No.Signal T.M.D.S data 2- Hot plug detection T.M.D.S data 2+ T.M.D.S data 0– 24 23 18 17 T.M.D.S data 2 shield T.M.D.S data 0+ Not connected T.M.D.S data 0 shield Not connected Not connected...
  • Page 60: Computer Compatibility Chart

    Computer Compatibility Chart Computer • Multiple signal support Horizontal Frequency: 25–75 kHz, Vertical Frequency: 50–85 Hz, Pixel Clock: 25–108 MHz • Compatible with sync on green and composite sync signals • XGA compatible with advanced intelligent compression The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.
  • Page 61: Video Compatibility Chart

    Video Compatibility Chart H-Freq V-Freq Comp1 Comp2 S-Video Compos- Resolution (kHz) (Hz) Support Support Support ite Support Support Support SD Video NTSC 640x480i 15.73 59.94/60 768x576i 15.63 SECAM 768x576i 15.63 NTSC-4.43 PAL-M PAL-N NTSC-J PAL-60 NTSC-50 ED TV 480P 720x480P 31.5 59.94/60 576P...
  • Page 62: Troubleshooting

    Troubleshooting Problem Check Projector power cord is not plugged into the wall outlet. Remote control batteries have run out. Projector does not start The selected input mode is wrong. Cables may be incorrectly connected to the rear panel of the projector. Power to the external connected device is off.
  • Page 63 Picture adjustments are incorrectly set. Picture is dark or bright and whitish Picture adjustments are incorrectly set. Picture is too bright and whitish...
  • Page 64: Product Specifications

    Product Specifications Item Description Liesegang e.motion4100 Model No. DLP Panel Panel size: 0.65'' Display method: DMD by Texas Instruments Device method: Digital Light Processing (DLP Display Type DLP Chip, RGB optical shutter method WXGA 1280 x 720 pixels Resolution Lens 1-1.25 x zoom lens, F2.4~2.5, f= 19.1~23.9 mm...
  • Page 65: Dimensions

    Dimensions Units: inches (mm) Rear View VIDEO S-VIDEO Pr/Cr Pb/Cb Pr/Cr Pb/Cb RS-232 WARNING Made in Taiwan • Do not disassemble any components except the lamp chassis cover while replacing the lamp. • Do not touch ventilation slots, lamp and objects next to them until they have sufficiently cooled down. •...
  • Page 66 LIESEGANG Optoelectronics GmbH Vogelsanger Weg 91 40470 Düsseldorf. Germany Tel : +49 (0) 211 3901-1 Fax: +49 (0) 211 3901-227 www.liesegang.com info@liesegang.com...
