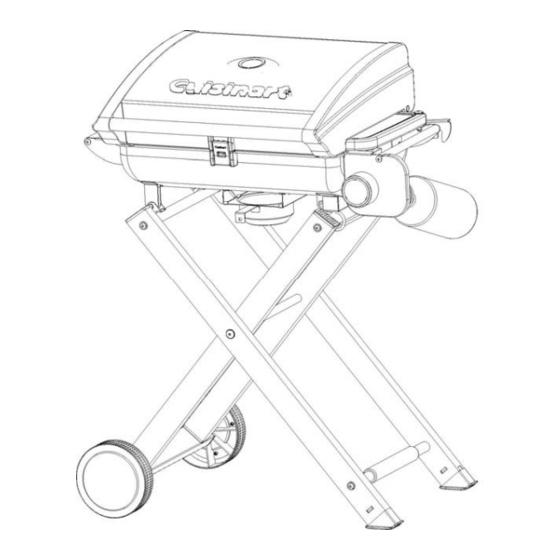

- Page 1 PORTABLE UPRIGHT GAS GRILL OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE 1 YEAR LIMITED WARRANTY MODEL# BG036-J CTC PRODUCT # 085-3231-0...
- Page 2 STOP！ Should you encounter a problem with your new Cuisinart Grill, CALL US FIRST! Do not return the product to the store. WE CAN HELP: 1-877-214-1683...
- Page 3 CUISINART PORTABLE LP GAS GRILL MODEL: BG036-J ASSEMBLY AND OPERATING INSTRUCTIONS WARNING: FOR OUTDOOR USE ONLY This instruction manual contains important information necessary for the proper assembly and safe use of the appliance Read and follow all warnings and instructions before assembling and using the...
-
Page 4: Table Of Contents
Content 1. Warnings and Safety Instructions………………………………………..1 2. Illustrated Parts List …………………………………………………….…….2 3. Exploded Diagram……………………………………………………..…...…3 4. Assembly Instructions………………………………………………………...5 4.1 Folding steps of trolley……………………………………………………8 5. Operating your grill 5.1 Choosing a location for installation…….…………………………..;...10 5.2 Special Instructions for Use of Regulator and Cylinder……..….…..10 5.3 Installing the LP gas cylinder………….……………………………..11 5.4 Checking for Leaks………..……………………………………….…...11 5.5 Lighting Instructions..…………………………………………..………12... -
Page 5: Warnings And Safety Instructions
1. Warnings and Safety Instructions If these instructions are ignored, there is a possibility of a hazardous fire or explosion which could result in physical injury or property damage! It is your responsibility to assemble, operate and maintain your gas grill properly. Read all warnings and instructions prior to assembling and operating your grill WARNINGS:... -
Page 6: Illustrated Parts List
This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot surfaces or splatter from cooking liquids. This appliance is not intended for commercial use. The pressure regulator supplied with the Cuisinart Gas Grill must be used. 2. Illustrated Parts List ①. Grill body ②. -
Page 7: Exploded Diagram
3. Exploded Diagram... - Page 8 M10 nut ○ Wheel cover ○ Wheel ○ Left-up tube assembly ○ Grease cup ○ Leg cover For customer service and replacement part, please call: 1-877-214-1683. Cuisinart Canada, Trileaf Distribution Trifeuil, Toronto, Canada, M4S 2B8. CTC Model # 085-3231-0 Model# BG036-J...
-
Page 9: Assembly Instructions
4. Assembly Instructions Remove all contents from packaging, and make sure all parts are present before attempting to assemble! For correct screws and washers for assembly below, refer to part numbers above. Step 1 : Install the following parts: short leg assembly, left long leg assembly, handle assembly, right-up horizontal tube, mid tube assembly, leg tube washers, leg cover. - Page 10 Step 3: Install wheel tube assembly and wheels. Step 4 : Install burner and trolley.
- Page 11 Step 5 : Install flame tamer, grid, grease cup. Step 6 ：Side shelves slide in as shown below (figure 1) for easy and convenient storage. Please make sure that when using the side shelves, they are properly locked into place by threading the slot on the inside of the shelf through the side bracket as shown in figure 2.
-
Page 12: Folding Steps Of Trolley
Folding trolley instructions Step 1 : First, step on leg tube assembly (1), then lift handle on right side of grill body (2), separating leg tube and hook under grill body (3). This separates grill body from leg as shown in the photo below. Step 2 : See below for separated stage. - Page 13 Step 3 : Fold grill body down as pictured below until middle tube under grill reaches fasten slot underneath. See next picture for connected position. Step 4 : See picture below for folded position. Make sure hook latch engages knob on the back leg as shown.
-
Page 14: Operating Your Grill
5.2 Special Instruction for the Use of Regulator and Propane Tank. A propane gas tank is required for operation. Use a 1 lb (465 g) propane tank. This Cuisinart grill is equipped with a regulator having a CGA No. 600 cylinder connection device for connecting. -
Page 15: Installing The Lp Gas Cylinder
5.3 Installing the gas tank (The propane gas tank is not provided with the appliance.) A propane tank complying with the requirements listed in section 5.2 must be obtained before the grill can operate. Connect the LP tank to the grill outdoors only. Read and follow all direction on the tank. -
Page 16: Lighting Instructions
Leak Check Instructions 1. Make 2-3 oz. (60-90 ml) of leak-test solution by mixing one part liquid dishwashing soap with three parts water. 2. Make sure control knob is in “OFF” position. 3. Spray or paint some leak solution on cylinder and regulator connection. -
Page 17: Using The Grill
Match lighting instructions: 1. Read all instructions before lighting. 2. Open lid during lighting. 3. Make sure gas control knob is in “OFF” position. 4. Unfold side tables into open position. 5. Strike a long wooden match and position burning match through match lighting hole in firebox bottom. -
Page 18: Care And Maintenance
Burner opening must be positioned properly over valve orifices. 6. Care and Maintenance 6.1 Care Regular care of your grill will help keep it operating properly. All maintenance should be done only when grill is cool and with the fuel supply turned off. Occasionally inspect and tighten hardware that may become loose. -
Page 19: Warranty Program And Replacement Parts
You must keep an invoice, cancelled cheque or payment record to verify the purchase date of the grill. For customer service and replacement parts, please call: 1-877-214-1683. Cuisinart Canada, Trileaf Distribution Trifeuil, Toronto, Canada, M4S 2B8. CTC Model # 085-3231-0 Model# BG036-J...
