U S E R ' S
M A N U A L
Electric Guitar Amplifier
)
(with AGX™ Technology
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527,
5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
Advertisement
Related Manuals for Rocktron Rampage R80
Summary of Contents for Rocktron Rampage R80

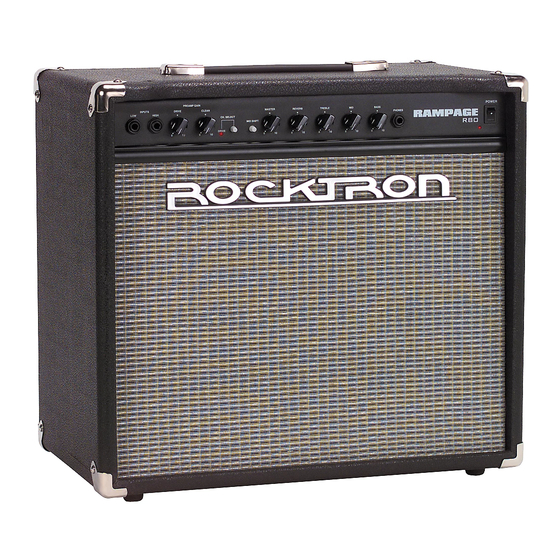

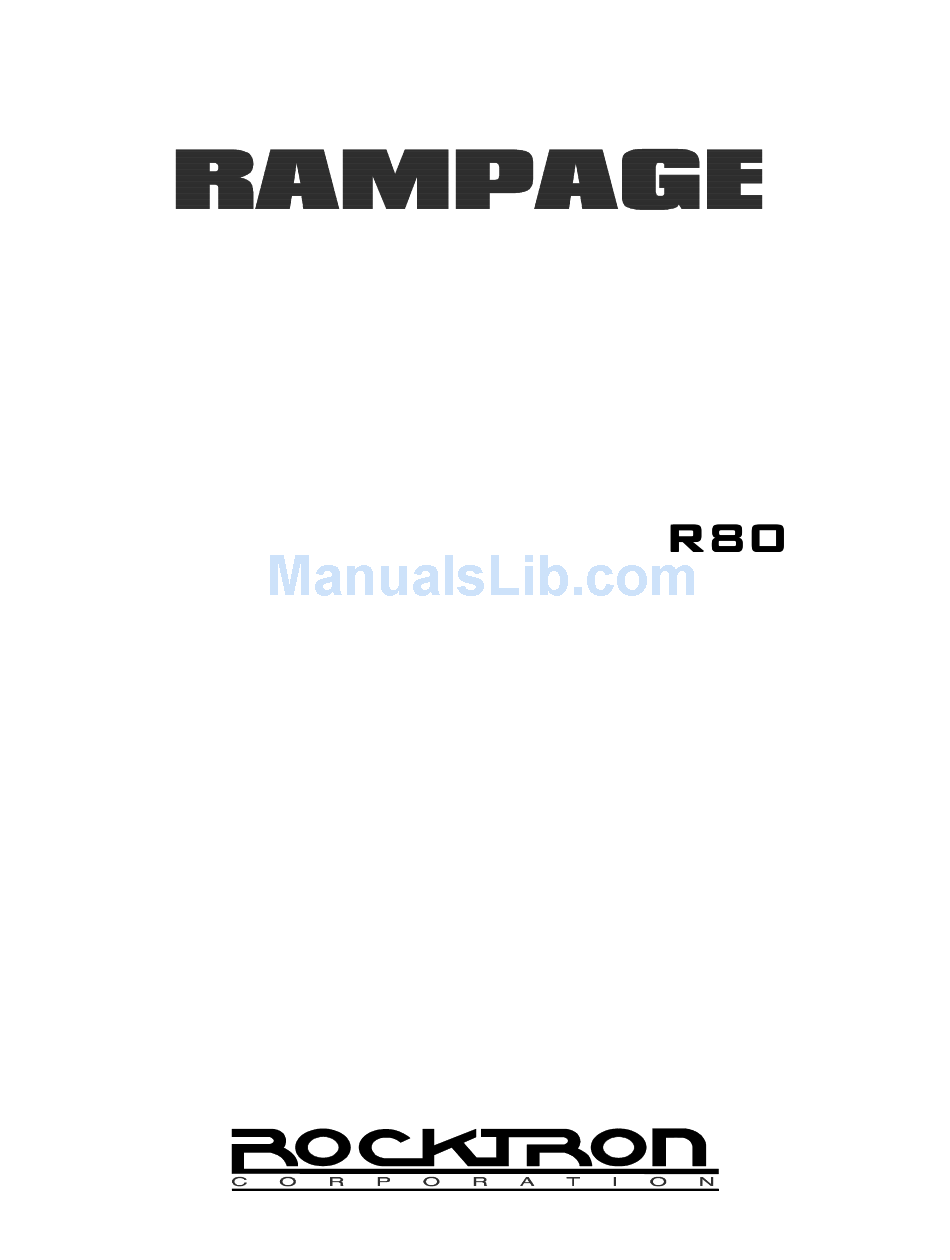

- Page 1 U S E R ' S M A N U A L Electric Guitar Amplifier (with AGX™ Technology May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 Your Rocktron Rampage R80 electric guitar amplifier has been tested and complies with the following Standards and Directives as set forth by the European Union: Council Directive(s): 89/336/EEC, 73/23/EEC Standard(s): EN55 013: 1990/A12:1994, EN55 020: 1988, EN60 065: 1993, EN60 555-2: 1987, EN60 555-3:...
- Page 3 PRECAUTIONS ................1 Front Panel ..................2 Rear Panel ..................4 Specifications................5...
- Page 4 Rocktron Corporation 2870 Technology Drive Rochester Hills, MI 48309 Phone: (248) 853-3055 (248) 853-5937 Fax: World Wide Web: http://www.rocktron.com E-mail: rocktron@eaglequest.com...
-
Page 5: Operating Temperature
PRECAUTIONS NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SECTION TO PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT REQUIRES CAREFUL HANDLING. • All warnings on this equipment and in the operating instructions should be adhered to and all operating instructions should be followed. -
Page 6: Front Panel Controls
Front Panel Controls INPUT jacks - LOW and HIGH Connect your guitar output into one of the two 1/4" input jacks. Select LOW for normal or HIGH for extra gain. PREAMP GAIN - DRIVE and CLEAN controls Adjusts the amount of amplification in the preamp. DRIVE is designed with increased gain while CLEAN has less built-in gain. -
Page 7: Rear Panel Controls
AGX™ (Automatic Gain Expander) Rocktron's patented AGX™ system solves the long standing problem encountered by guitar players when using high gain distortion. The AGX™ circuit expands the gain of the amplification circuit only when required based on the input level. When no signal is present, the AGX™ circuit expands down the amplifi-... - Page 8 R80 Specifications 80 Watts Power Output 12" Velocity® High Definition by Rocktron Speaker Parameters Active Shelving Treble Active Bandpass Middle Active Shelving Bass 1/4" jack Headphone Output 1/4" jack Output Line Preamp 2 x 1/4" jacks 2 x 1/4" jacks...
