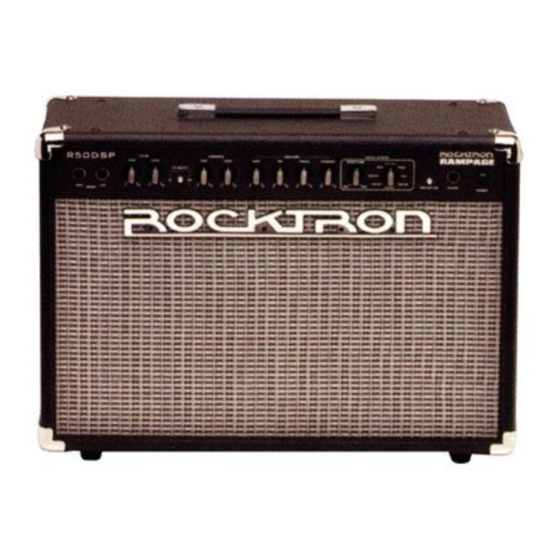

ELECTRIC GUITAR AMPLIFIER WITH
AGX TECHNOLOGY AND
BUILT-IN DIGITAL EFFECTS
User's Manual
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099,
5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.
Other patents pending. Foreign patents pending.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rocktron Rampage R50DSP
Summary of Contents for Rocktron Rampage R50DSP

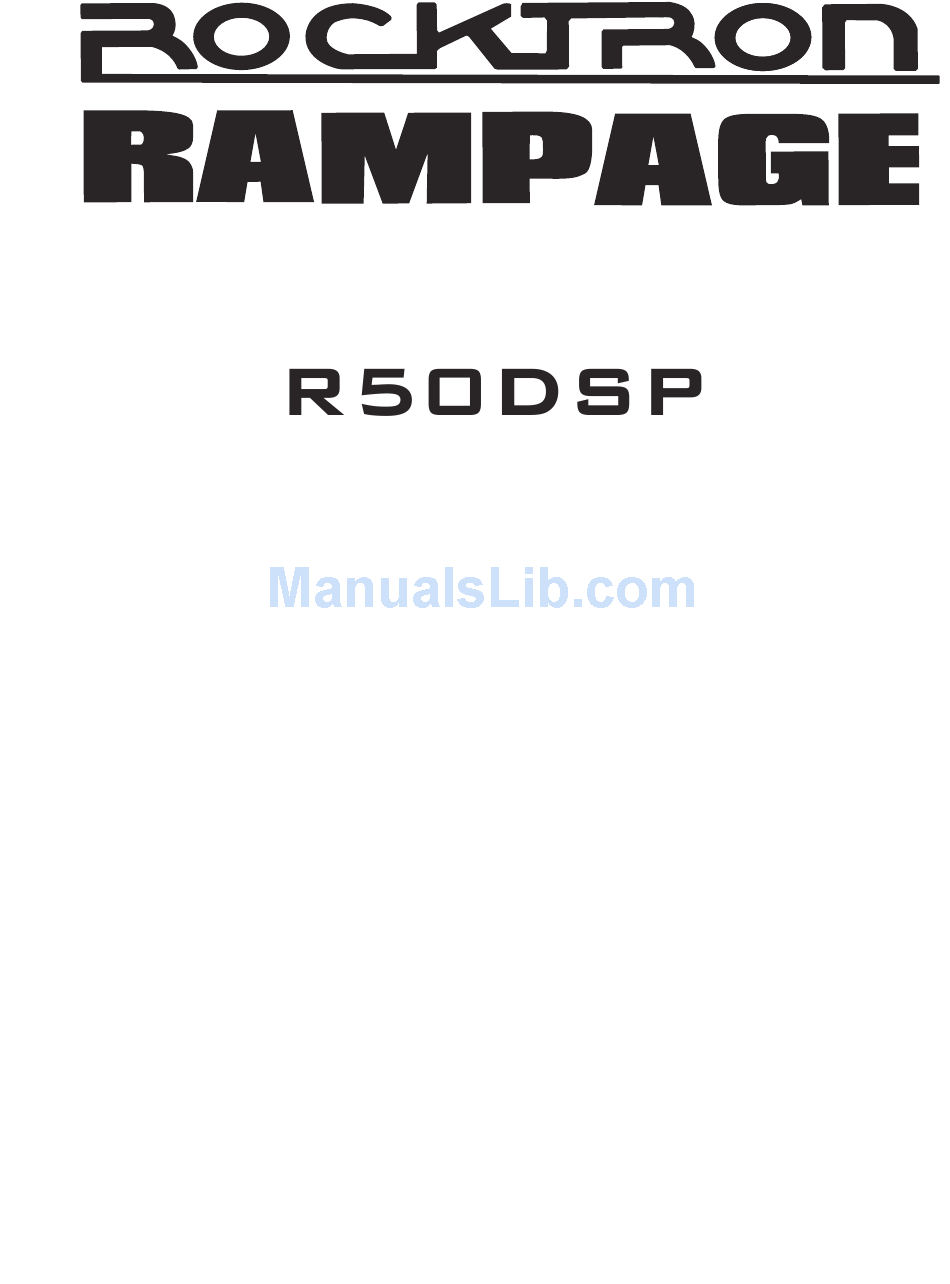

- Page 1 ELECTRIC GUITAR AMPLIFIER WITH AGX TECHNOLOGY AND BUILT-IN DIGITAL EFFECTS User’s Manual May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 Your Rocktron Rampage R50DSP amplifier has been tested and complies with the following Standards and Directives as set forth by the European Union: Council Directive(s): 89/336/EEC, 73/23/EEC Standard(s): EN55022, EN50082-1, EN60065 This means that this product has been designed to meet stringent guidelines on how much RF energy it can emit, and that it should be immune from other sources of interference when properly used.
-
Page 3: Front Panel
Front Panel INPUT JACKS - LOW AND HIGH Connect the output of your guitar to one of the 1/4”input jacks with a shielded guitar cable. Select LOW for normal, or HIGH for extra gain. Plugging into the LOW input will attenuate your guitar’s signal cooling down a “hot”... - Page 4 PHONE (HEADPHONE) jack Plugging your headphones into this jack disconnects the sound going to the speakers and allows you to practice in private. Engage the Speaker Sim Button (Point 8) for a “model” of the internal speaker. NOTE - When using with CD inputs be sure to turn the Levels down on both channels before unplugging headphones - see CD INPUT section next page.
- Page 5 This 1/4” jacks allows you to connect to a seperate powered speaker cabinet or directly into a power amp - like the Rocktron Velocity 100 and from the power amp into two 4x12s, a stereo 4x12 or a stereo 2x12 cabinet. The preamp output is controlled by the master volume control.
- Page 6 220/240 Volts AC, 50/60Hz, as specified on chassis AGX (Automatic Gain Expander) Rocktron’s patented AGX system solves the long standing problem encountered by guitar players when using high gain distortion. The AGX circuit expands the gain of the amplification circuit only when required based on the input level.
- Page 7 Check out some of our other products: Rack Gear Gainiac (preamp w/12ax7 tube) Chameleon 2000 (preamp w/multi-effects) Voodu Valve (preamp w/12ax7 tube and multi-effects) Prophesy (our top of the line preamp with multi-effects) Intellifex On Line (Multi-effects processor) HUSH Super C (guitar noise silencing system) Vendetta VP4 Preamp (All Tube 4-Channel Guitar preamp - 2 Rack Space) Stomp Boxes: Rampage Distortion, Tsunami Chorus, Austin Gold Overdrive,...
- Page 8 ELECTRIC GUITAR AMPLIFIER WITH AGX TECHNOLOGY AND BUILT-IN DIGITAL EFFECTS Rocktron -A Division of GHS Corporation 2813 Wilber Avenue Battle Creek MI 49015 Rocktron Phone: 1-(269)-968-3351 Email: info@rocktron.com 2002-0002 Rev. 10/2/02...
