U S E R ' S
M A N U A L

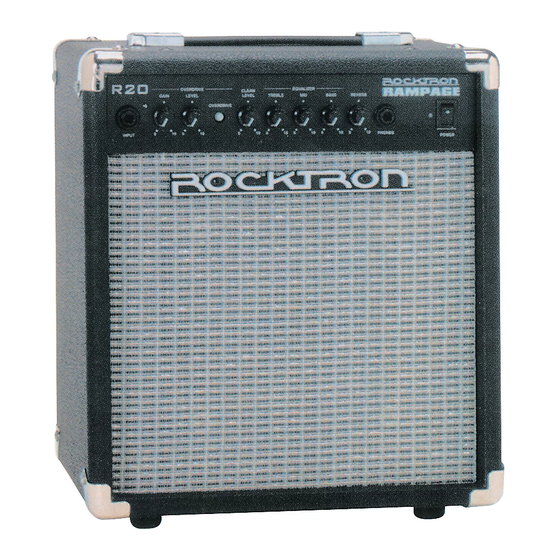

Electric Guitar Amplifier
(with AGX™ Technology)
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527,
5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rocktron Rampage R20
Summary of Contents for Rocktron Rampage R20

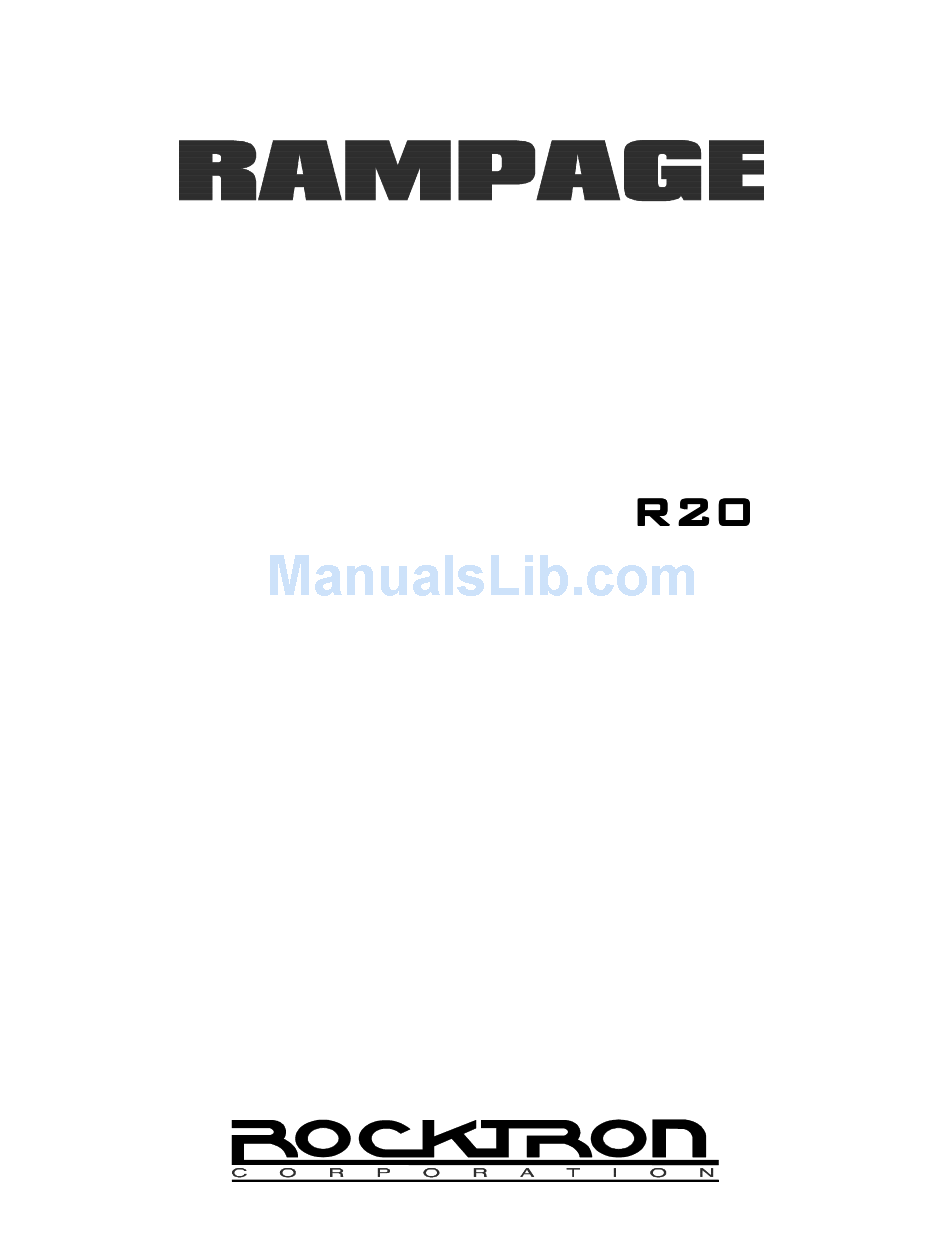

- Page 1 U S E R ' S M A N U A L Electric Guitar Amplifier (with AGX™ Technology) May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 Your Rocktron Rampage R20 electric guitar amplifier has been tested and complies with the following Standards and Directives as set forth by the European Union: Council Directive(s): 89/336/EEC, 73/23/EEC Standard(s): EN55 013: 1990/A12:1994, EN55 020: 1988, EN60 065: 1993, EN60 555-2: 1987, EN60 555-3:...
- Page 3 PRECAUTIONS ................1 Front Panel ..................2 Back Panel ..................3 Specifications................4...
- Page 4 Rocktron Corporation 2870 Technology Drive Rochester Hills, MI 48309 Phone: (248) 853-3055 (248) 853-5937 Fax: World Wide Web: http://www.rocktron.com E-mail: rocktron@eaglequest.com...
- Page 5 PRECAUTIONS NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SECTION TO PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT REQUIRES CAREFUL HANDLING. • All warnings on this equipment and in the operating instructions should be adhered to and all operating instructions should be fol- lowed.
-
Page 6: Front Panel
Front Panel INPUT jack Connect your guitar output to the 1/4" input jack with a shielded guitar cable. OVERDRIVE GAIN control Adjusts the amount of amplification in the preamp when the OVERDRIVE channel is active. Turn the knob clockwise to increase distortion. -
Page 7: Rear Panel
Rear Panel AGX™ (Automatic Gain Expander) Rocktron's patented AGX™ system solves the long standing problem encountered by guitar players when using high gain distortion. The AGX™ circuit expands the gain of the amplification circuit only when required based on the input level. When no signal is present, the AGX™ circuit expands down the amplifi-... - Page 8 R20 Specifications Model No. Power Output 20 Watts Speaker Parameters 8 " Velocity® High Definition by Rocktron Dimensions 12.5"W x 9"D x 13.8"H (318 x230 x 350mm) Weight 10.82lbs. (4.9Kg) Reverb Spring Power Requirement 100 Volts AC, 50/60Hz or 117 Volts AC, 50/60Hz...
