V15
ELECTRIC GUITAR AMPLIFIER
User's Manual
R
Velocity is a registered trademark of GHS Corporation Battle Creek MI, USA
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099,
5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.
Other patents pending. Foreign patents pending.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rocktron Velocity V15
Summary of Contents for Rocktron Velocity V15
- Page 1 ELECTRIC GUITAR AMPLIFIER User’s Manual Velocity is a registered trademark of GHS Corporation Battle Creek MI, USA May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending.
- Page 2 Your Rocktron Velocity V15 amplifier has been designed to comply with the following Standards and Directives as set forth by the European Union: Council Directive(s): 89/336/EEC, 73/23/EEC, 76/769/EC, 1994/62/EC, 2000/ 53/EC, 2002/95/EC Standard(s): EN55022, EN50082-1, EN60065 This means that this product has been designed to meet stringent guidelines on how much RF energy it can emit, and that it should be immune from other sources of interference when properly used.
- Page 3 Precautions NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SECTION TO PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT REQUIRES CAREFUL HANDLING. • All warnings on this equipment and in the operating instructions should be adhered to and all operating instructions should be followed. •...
-
Page 4: Front Panel Descriptions

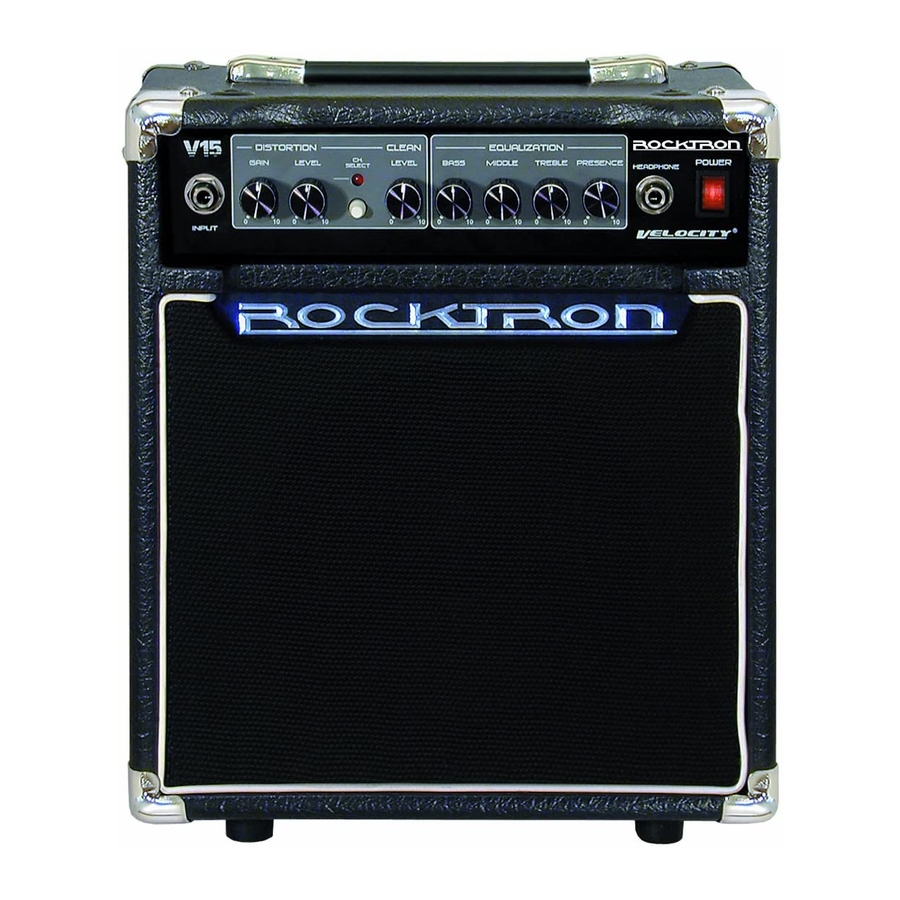

FRONT PANEL DESCRIPTIONS INPUT jack Connect the output of your guitar to the 1/4” input jack with a shielded guitar cable. DISTORTION CHANNEL GAIN control This knob determines the amount of GAIN (or distortion) added to the signal in the distortion channel. Turning the knob clockwise will add more GAIN to the signal. - Page 5 MIDDLE control This knob controls the overall MIDDLE frequencies of both the DISTORTION and CLEAN channels. The MIDDLE control boosts or cuts the amount of mid-band frequencies present in the signal. TREBLE control This knob controls the overall TREBLE of both the CLEAN and DISTORTION channels. The TREBLE control boosts or cuts the amount of high frequencies present in the signal.
-
Page 6: Back Panel Descriptions
A description on how to change the fuse is covered later in this manual. FOOTSWITCH Jack FOOTSWITCH Input - RFS1 Using a ROCKTRON RFS1 footswitch (sold separately) you can change the channels between DISTOR- TION and CLEAN. * Rocktron single (RFS1) and double (RFS2) footswitches are available and sold separately. -
Page 7: Fuse Replacement
Fuse Replacement We recommend that you use an authorized repair person to change the fuse in this unit. To access the fuse, first power down the unit and unplug the cable from the wall outlet and the amplifier. Using a small screw driver, open the fuse tray by prying open the small tab as shown in the drawing above. Please note that the tray will not come all of the way out. - Page 8 ELECTRIC GUITAR AMPLIFIER Rocktron -A Division of GHS Corporation 2813 Wilber Avenue Battle Creek MI 49015 Rocktron Phone: 1-(269)-968-3351 Email: info@rocktron.com Check us out on the web at: www.rocktron.com 2006-0001 Rev. 8/01/06...
