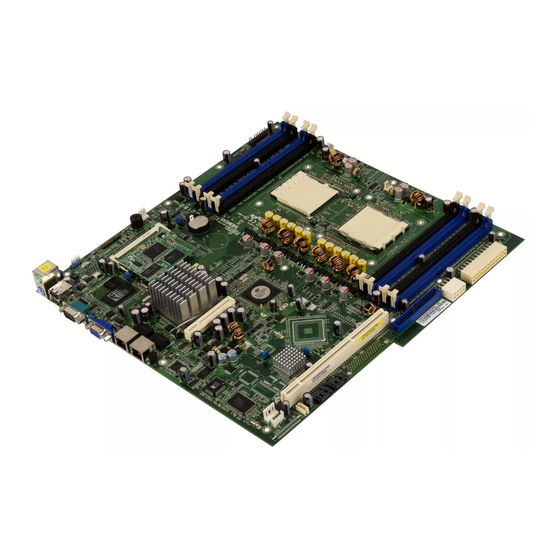

- Page 1 PRIMERGY System board D2130 for RX220 Technical manual Däschlein Fujitsu Siemens Computers GmbH München 81730 Munich e-mail: email: manuals@fujitsu-siemens.com Tel.: (089) 61001-155 Fax: (++49) 700 / 372 00000 D2130 (RX220) Sprachen: En Edition September 2005...
- Page 2 Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2005 Fujitsu Siemens Computers GmbH. All rights reserved. Delivery subject to availability; right of technical modifications reserved. All hardware and software names used are trademarks of their respective manufacturers.
-
Page 3: Table Of Contents
Replacing the lithium battery ....Abbreviations ....... D2130 (RX220) -
Page 5: Introduction
AMD Opteron™/Dual Core Opteron™ processors. Further information about drivers is provided in the readme files on the hard disk, on the supplied "ServerSupport" or "ServerStart" CDs. You will find further information in the BIOS description "D2130 Setup Utility for RX220". Notational conventions... -
Page 7: Important Notes
Information on which system expansions are suitable can be obtained from the customer service centre or your sales outlet. The warranty expires if the device is damaged during the installation or replacement of system expansions. D2130 (RX220) - Page 8 Incorrect replacement of lithium battery may lead to a risk of explosion. The batteries may only be replaced with identical batteries or with a type recommended by the manufacturer. It is essential to observe the instructions on page 29. D2130 (RX220)
- Page 9 Use a grounding cable designed for this purpose to connect yourself to the system unit as you install/deinstall the board. Place all components on a static-safe base. You will find a detailed description for handling ESD components in the relevant European or international standards (EN 61340-5-1, ANSI/ESD S20.20). D2130 (RX220)
-
Page 10: Ce Certificate
Never use sharp objects (screwdrivers) for leverage. CE certificate The shipped version of this board complies with the requirements of the EEC directive 89/336/EEC "Electromagnetic compatibility". Compliance was tested in a typical PRIMERGY configuration. D2130 (RX220) -
Page 11: Environment Protection
Environment protection Environment protection Environmentally-friendly product design and development This product has been designed in accordance with the Fujitsu Siemens Computers standard for “environmentally friendly product design and devel- opment”. This means that key factors such as durability, selection and labeling of materials, emissions, packaging, ease of disassembly and recycling have been taken into account. - Page 12 EU. To return your used device, please use the return and collection systems available to you. You will find further information on this at www.fujitsu- siemens.com/recycling. For details on take-back and reuse of devices and consumables within Europe, see the manual „Returning used devices“...
-
Page 13: Features
– VGA controller (ATI Radeon 7000M) onboard with 16 MB SDRAM memory – SATA controller Promise PDC20319u – Super I/O controller (NS PC87417) – Flash EPROM for: – BIOS – LAN – Server Management (SM) – server management with BMC (FSC System) – thermal and system management controller (ADM1026) D2130 (RX220) - Page 14 – 2 USB 2.0 ports with 480 Mbits/s – 1 VGA port – 2 LAN (RJ-45) ports Slots – 1 x PCI-X 133 MHz/64 Bits 184P (PCI-X 1.0) – 1 x PCI Express x8 slot 98P (PCI Express 1.0a) D2130 (RX220)
- Page 15 – HDT support – Optional ROM for LAN x 2 – Shadow RAM in C, D, E segment with 4 KB alignment – Console redirection support Environmental protection Battery in holder Form factor E-ATX (SSI) 12.4 x 13 in. D2130 (RX220)
-
Page 16: Main Memory
– The memory modules have to be populated in pairs. – Each pair must consist of identical memory modules. – The module capacity between pairs can differ: for example pair 1A/1B can be populated with two 512 Mbyte modules and pair 2A/2B with two 1 Gbyte modules. D2130 (RX220) - Page 17 For two CPUs: Memory bank DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM color blue black blue black blue black blue black Population with 2 DIMMs Population with 4 DIMMs Population with 6 DIMMs Population with 8 DIMMs D2130 (RX220)
-
Page 18: Slots
Slots Figure 3: Slots PCI slots The following table shows an overview of the slots: Slot 64 bit/ Frequency Description 32 bit in MHz 8X PCI Express 64 bit 64-Bit PCI bus slot, full size or low profile D2130 (RX220) -
Page 19: Isa Bus Resources
IDE controller (primary) 1F0-1F7, 3F6 "IRQ" = interrupt assigned as shipped "Address" = this address can be used for your particular device "Address" = this DMA can be used for your particular device Default settings are shown in bold print D2130 (RX220) -
Page 20: Pci Resources
ISA interrupt that is used by a component on the system board (e.g. controller) or an ISA board. Following table shows the PCI IRQ routing: Device IDSEL PCI_IRQ REQ/GNT VGA/Radeon P3_AD21 PCIIRQ#8 P3REQ#0 / 7000M P3GNT#0 D2130 (RX220) -
Page 21: Screen Resolution
Screen resolution Refresh rate (Hz) Max. number of colours 640x480 4.29 G 800x600 4.29 G 1024x768 4.29 G 1280x1024 4.29 G D2130 (RX220) -
Page 22: Temperature / System Monitoring
The temperature and system monitoring are controlled by an onboard controller developed by Fujitsu Siemens. The following functions are supported: Temperature monitoring Measurement of the processor temperature, measurement of the ambient temperature by a temperature sensor on the front panel board. -
Page 23: Interfaces And Connectors
Interfaces and connectors Interfaces and connectors CPU2 CPU1 Figure 4: Schematic overview of the system board D2130 1 = IPMB connector 10 = DDR1 DIMM slots for CPU2 2 = Auxiliary power connector for RSB S2 LP 11 = 24-pin ATXPWR connector... -
Page 24: External Connectors
Interfaces and connectors Features 3.6.1 External connectors Figure 5: External ports of the system board D2130 1 = PS/2 mouse port 6 = VGA port 2 = PS/2 keyboard port 7 = LAN port A (10/100/1000 MBps) 3 = USB port 0... - Page 25 The LAN controller connectors are equipped with two LEDs (light emitting diode). The left hand LED indicates the activity, the right hand LED is without function. Figure 6: LAN port LAN link/aktivity green LAN connection no LAN connection flashing LAN transfer no function D2130 (RX220)
-
Page 26: Settings With Jumpers
Settings with jumpers Figure 7: Position of the jumpers 1 = BIOS recovery - (RECOVERY1) Normal (default setting) Force BIOS recovery 2 = SATA controller (SATA_EN1) Enabled (default setting) Disabled 3 = Keyboard power (KBPWR1) +5V (default setting) +5VSB D2130 (RX220) - Page 27 Features Settings with jumpers 4 = VGA controller (VGA_EN1) Enabled (default setting) Disabled 5 = Clear CMOS / RTC (CLRTC1) Normal (default setting) Clear RTC D2130 (RX220)
-
Page 29: Replacing The Lithium Battery
Ê Press the locking spring into direction of of the arrow (1), so that the lithium- battery jumps out of its socket. Ê Remove the battery (2). Ê Insert a new lithium battery of the same type into the socket (3) and (4). D2130 (RX220) -
Page 31: Abbreviations
Advanced Configuration and Power management Interface ANSI American National Standards Institute ASR&R Automatic Server Recovery and Restart Advanced Technology Attachment Battery Backup Unit BIOS Basic Input Output System Baseboard Management Controller CMOS Complementary Metal Oxide Semiconductor COMmunication port Central Processing Unit D2130 (RX220) - Page 32 Dynamic Random Access Memory Error Correction Code EEPROM Electrical Erasable Programmable Read Only Memory Extensible Firmware Interface Elektrostatisch gefährdete Bauteile Electromagnetic interference EMRL Embedded RAID Logic Elektromagnetische Verträglichkeit (electromagnetic compatibility) EPROM Erasable Programmable Read Only Memory ElectroStatic Discharge (elektrostatische Entladung) D2130 (RX220)
- Page 33 Front Side Bus In Circuit Emulation Integrated (intelligent) Drive Electronics International Electrotechnical Commission Integrated Mirroring Enhanced IOOP Intelligent Organisation Of PCI IPMB Intelligent Platform Management Bus IPMI Intelligent Platform Management Interface International Organisation for Standardisation Local Area Network D2130 (RX220)
- Page 34 Non Maskable Interrupt Original Equipment Manufacturer OHCI Open Host Controller Interface Operating System Peripheral Components Interconnect Prefailure Detection and Analyzing Programmed Input Output Power Distribution Board Programmable Logic Device PS(U) Power Supply (Unit) Pulse Wide Modulation Preboot eXecution Environment D2130 (RX220)
- Page 35 Remote Service Board ReSeT Real Time Clock SCSI Small Computer Systems Interface SDDC Single Device Data Correction SDRAM Synchronous Dynamic Random Access Memory System Event Log SHDG Server Hardware Design Guide System Management Bus Server Management Mode Symmetrical Multi Processing D2130 (RX220)
- Page 36 Abbreviations UHCI Unified Host Controller Interface Universal Serial Bus Video Graphics Adapter Voltage Regulator Down Voltage Regulator Module WEEE Waste from Electric and Electronic Equipment (EU Directive) Wired for Management Wake up On LAN D2130 (RX220)
- Page 37 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 Munich Germany Corrections Fax: (++49) 700 / 372 00000 email: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on System board D2130 for RX220 Technical manual D2130 (RX220)
- Page 39 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 Munich Germany Corrections Fax: (++49) 700 / 372 00000 email: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on System board D2130 for RX220 Technical manual D2130 (RX220)
- Page 41 Information on this document On April 1, 2009, Fujitsu became the sole owner of Fujitsu Siemens Compu- ters. This new subsidiary of Fujitsu has been renamed Fujitsu Technology So- lutions. This document from the document archive refers to a product version which was released a considerable time ago or which is no longer marketed.
