Fujitsu Siemens Computers D2300 Tehnical Manual

Fujitsu Siemens Computers D2300 Tehnical Manual

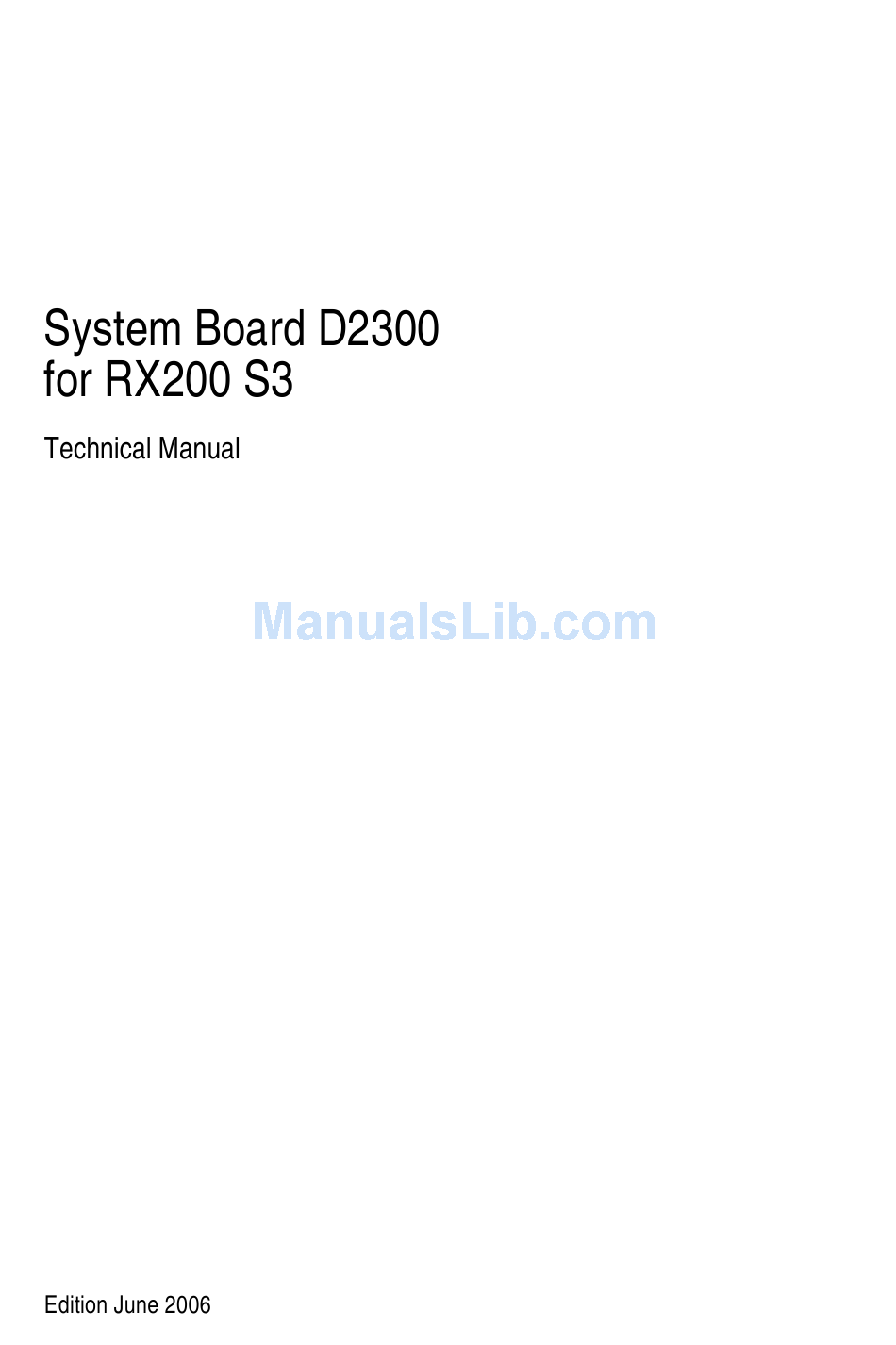

System board for rx200 s3
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu Siemens Computers D2300

Summary of Contents for Fujitsu Siemens Computers D2300

  • Page 2 Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2006 Fujitsu Siemens Computers GmbH. All rights reserved. Delivery subject to availability; right of technical modifications reserved. All hardware and software names used are trademarks of their respective manufacturers.

  • Page 3: Table Of Contents

    Replacing the lithium battery ....Abbreviations ....... Technical Manual D2300 (RX200 S3)

  • Page 5: Introduction

    Introduction This technical manual describes the system board D2300, which is equipped with one or two Intel® processors. Further information you will find in the BIOS description. For additional driver information, refer to the Readme files located on the server hard disk and on the supplied "...

  • Page 7: Important Notes

    Information on which system expansions are approved for installation can be obtained from our customer service center or your sales outlet. The warranty expires if the device is damaged during the installation or replacement of system expansions. Technical Manual D2300 (RX200 S3)
  • Page 8 Incorrect replacement of lithium battery may lead to a risk of explosion. The batteries may only be replaced with identical batteries or with a type recommended by the manufacturer. It is essential to observe the instructions in the chapter “Replacing the lithium battery”. Technical Manual D2300 (RX200 S3)
  • Page 9 Place all components on a static-free surface. You will find a detailed description for handling ESD components in the relevant European or international standards (EN 61340-5-1, ANSI/ESD S20.20). Technical Manual D2300 (RX200 S3)

  • Page 10: Ce Certificate Of Conformity

    Never use sharp objects (screwdrivers) for leverage. CE Certificate of Conformity The shipped version of this board complies with the requirements of the EEC directive 89/336/EEC "Electromagnetic compatibility". Compliance was tested in a typical PRIMERGY configuration. Technical Manual D2300 (RX200 S3)

  • Page 11: Environmental Protection

    Environmental protection Environmental protection Environmentally-friendly product design and development This product has been designed in accordance with the Fujitsu Siemens Computers standard for “environmentally friendly product design and devel- opment”. This means that key factors such as durability, selection and labeling of materials, emissions, packaging, ease of dismantling and recycling have been taken into account.
  • Page 12 Details regarding the return and recycling of devices and consumables within Europe can also be found in the "Returning used devices" manual, via your local Fujitsu Siemens Computers branch or from our recycling center in Paderborn: Fujitsu Siemens Computers Recycling Center D-33106 Paderborn Tel.

  • Page 13: Features

    – ECC multiple bit error detection and single bit error correction – memory scrubbing function – Single Device Data Correction (SDDC) function (Chipkill™) – memory mirroring function Technical Manual D2300 (RX200 S3)
  • Page 14 – main power connector (12V, -12V and 5V auxiliary supply) – 12V (CPU) power connector – IPMB connector – HDD activity connector – control panel – battery holder – connectors for PWM fans (Puls Wide modulation) Technical Manual D2300 (RX200 S3)
  • Page 15 – Option 2 – One standard half length 64-bit/100 MHz PCI-X slot* – One low-profile half length 64-bit/100 MHz PCI-X riser board * The PXH-V daughter board is mounted on the PCI riser board assembly. Technical Manual D2300 (RX200 S3)
  • Page 16 – boot possible from: – CD-ROM – USB drive – LAN – console redirection support – OEM logo – CPU, memory disable – memory mirroring support Environmental protection Battery in holder Form factor 249 x 455 mm Technical Manual D2300 (RX200 S3)

  • Page 17: Main Memory

    – Each memory bank and channel (module) must be equipped with 2 memory modules. – The module capacity between pairs can differ: pair 1A/1B can be populated with two 512 Mbyte modules and pair 2A/2B with two 1 Gbyte modules. Technical Manual D2300 (RX200 S3)
  • Page 18 – Observe the following channel pair sequence during installation: FDB 1C - FDB 1D, FBD 2A - FDB 2B, then FDB 2C - FDB 2D – When operating in single DIMM mode, the module should be installed in the FBD 1A slot. Technical Manual D2300 (RX200 S3)

  • Page 19: Pci-Bus

    The following table shows an overview of the PCI slots: PCI slot 64Bit Frequency Description in MHz 64 bit 100/133 64 bit PCI-X slot, low profile 64 bit 64 bit PCIe x8 slot, low profile and full size Technical Manual D2300 (RX200 S3)

  • Page 20: Isa Bus Resources

    „IRQ“ = interrupt assigned as shipped „Address“ = this address can be used for your particular device „DMA“ = this DMA can be used for your particular device Default settings are shown in bold print. Technical Manual D2300 (RX200 S3)

  • Page 21: Pci Resources

    3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15 The selected ISA interrupt is assigned to the PCI interrupt. You may not select an ISA interrupt that is used by a component on the system board (e.g. controller) or an ISA board. Technical Manual D2300 (RX200 S3)
  • Page 22 Following table shows the PCI -X133 MHz IRQ routing: Device IDSEL PCI_IRQ REQ/GNT PCIX slot 1 PCIA_AD17 PCIA_IRQ0 / REQ#0 / GNT#0 PCIA_IRQ1 / PCIA_IRQ2 / PCIA_IRQ3 IDSEL: ID select PCI_IRQ: PCI Interrupt Request REQ/GNT: Request / Grant Technical Manual D2300 (RX200 S3)

  • Page 23: Screen Resolution

    The temperature and system monitoring are controlled by an onboard controller developed by Fujitsu Siemens. The following functions are supported: Temperature monitoring Measurement of the processor temperature, measurement of the ambient temperature by a temperature sensor on the LED board.
  • Page 24 System Event Log (SEL) All monitored events of the system board are signalised via the Global Error LED and recorded in the System Event Log. They could be retrieved in the BIOS Setup or via ServerView. Technical Manual D2300 (RX200 S3)

  • Page 25: Interfaces And Connectors

    Features Interfaces and Connectors Interfaces and Connectors Figure 4: Schematic overview of the system board D2300 PS/2 mouse port 21 Intel LGA771 processor 2 socket PS/2 keyboard port 22 PSU I connector Serial port COM 23 Backplane board HDD LED...
  • Page 26 37 iPMB connector (FBD 2A, FBD 2B) 18 Bank 4 DIMM slots 38 KVM switch connector (FBD 2C, FBD 2D) 19 Front USB ports system board 39 COM2 port connector connector 20 Intel LGA771 processor 1 socket Technical Manual D2300 (RX200 S3)

  • Page 27: External Ports

    Features Interfaces and Connectors 3.6.1 External ports Figure 5: External ports of the system board D2300 LAN port 1 (10/100/1000 Mbps) Serial port COM LAN port 2 (10/100/1000 Mbps / iRMC port) 7 VGA port LEDs (Global Error and Status)
  • Page 28 1 LAN transfer rate green + yellow off transfer rate 10 Mbit/s (or no connection) green transfer rate 100 Mbit/s yellow transfer rate 1000 Mbit/s 2 LAN-Link/activity green LAN connection no LAN connection flashing LAN transfer Technical Manual D2300 (RX200 S3)

  • Page 29: Settings With Jumpers

    Power-On-Control - jumper 1 (JP1) default (default setting: by South Bridge and BMC) via IPMI debug (by South Bridge only) Clear CMOS - jumper 2 (JP2) normal, not clear CMOS settings (default setting) Clear CMOS settings Technical Manual D2300 (RX200 S3)
  • Page 30 BIOS can only be read BIOS can both be read and written to SW1-4 CMOS clear Clear CMOS settings and restore system defaults Normal CMOS settings Switch status indicated in bold text is the default setting. Technical Manual D2300 (RX200 S3)

  • Page 31: Replacing The Lithium Battery

    Ê Press the locking spring into direction of of the arrow (1), so that the lithium- battery jumps out of its socket. Ê Remove the battery (2). Ê Insert a new lithium battery of the same type into the socket (3) and (4). Technical Manual D2300 (RX200 S3)

  • Page 33: Abbreviations

    Automatic Server Recovery and Restart Advanced Technology Attachment Battery Backup Unit BIOS Basic Input Output System Baseboard Management Controller CMOS Complementary Metal Oxide Semiconductor COMmunication port Central Processing Unit Double Data Rate DIMM Dual In-line Memory Module Technical Manual D2300 (RX200 S3)
  • Page 34 Erasable Programmable Read Only Memory EMRL Embedded RAID Logic EVRD Enterprise VRD Hot plug Controller In Circuit Emulation Integrated (intelligent) Drive Electronics Integrated Mirror Enhanced IOOP Intelligent Organisation Of PCI IPMB Intelligent Platform Management Bus Technical Manual D2300 (RX200 S3)
  • Page 35 Multi Processor Specification Non Maskable Interrupt Original Equipment Manufacturer OHCI Open Host Controller Interfache Operating System Peripheral Components Interconnect Prefailure Detection and Analyzing Programmed Input Output Programmable Logic Device PS(U) Power Supply (Unit) Puls Wide Modulation Technical Manual D2300 (RX200 S3)
  • Page 36 Small Computer Systems Interfache SDDC Single Device Data Correction SDRAM Synchronous Dynamic Random Access Memory SHDG Server Hardware Design Guide System Management Bus Server Management Mode Symmetrically Multi Processing UHCI Unified Host Controller Interface Universal Serial Bus Technical Manual D2300 (RX200 S3)
  • Page 37 Abbreviations Video Graphics Adapter Voltage Regulator Down Voltage Regulator Module Wired for Management Wake up On LAN Technical Manual D2300 (RX200 S3)
  • Page 39 Comments Suggestions Corrections Fax: 0 700 / 372 00000 Comments on D2300 Technical Manual D2300 (RX200 S3)
  • Page 41 Comments Suggestions Corrections Fax: 0 700 / 372 00000 Comments on D2300 Technical Manual D2300 (RX200 S3)
  • Page 42 Information on this document On April 1, 2009, Fujitsu became the sole owner of Fujitsu Siemens Compu- ters. This new subsidiary of Fujitsu has been renamed Fujitsu Technology So- lutions. This document from the document archive refers to a product version which was released a considerable time ago or which is no longer marketed.
