Manual set

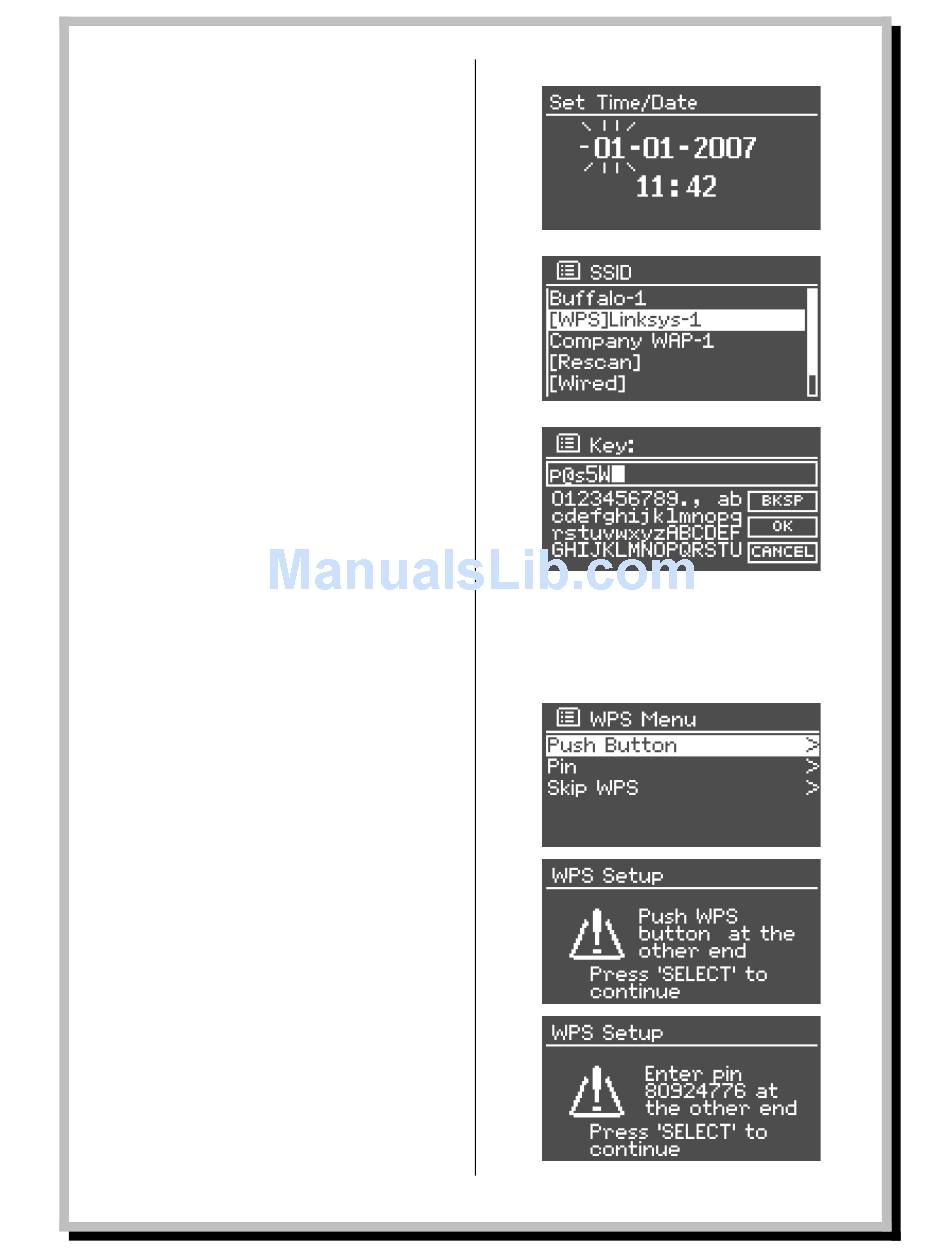

If you set No update, the wizard now prompts you to
set the time and date manually. The date and time
are displayed as dd-mm-yyyy and hh:mm AM/PM with
the first value, dd, active (flashing).
Adjust each value with the Select control. As each
value is set, the next value becomes active and
flashes.

Network

The WLD+ 201 is compatible with all common network
protocols and encryption methods, including Wi-Fi
Protected Setup (WPS).
To connect the WLD+ 201 to your network, you need
one of the following:
A wired router and an Ethernet (RJ45
-
network) cable
A Wi-Fi wireless router, together with
-
password key if set
Select WLAN region/country (for the UK choose Most
of Europe) > Wi-Fi network (SSID), and then select a
network from the list. To connect to a wired network,
select [Wired], after ensuring that the Ethernet cable
from the wired router is connected to the Ethernet
socket of the WLD+201. If the network is open (non-
encrypted), WLD+ 201 connects immediately (see
Completion below).
Standard encrypted network
To enter the network's key (password), use the Select
control to move the cursor through the characters
and press Select. As each character is selected, the
key is built up near the top of the display. There are
three options accessible by turning Select back
before the first characters (0123...) – Backspace, OK
and Cancel.
WPS encrypted network
WPS encrypted networks are identified by '[WPS]' at
the start of the network name, and have three
methods of connection. Select one and follow the
prompts:
- Push Button >
The WLD+ 201 prompts you to press the connect
button on the router. It then scans for a ready
Push Button Connect network and connects.
- Pin > (code number)
The WLD+ 201 generates an 8-digit code number
which you enter into the wireless router, access
point, or an external registrar (e.g. advanced
versions of Windows Vista).
Skip WPS >
-
Enter key as for a standard encrypted network,
above.
For more information on setting up a WPS encrypted
network, see your WPS router's instructions.
