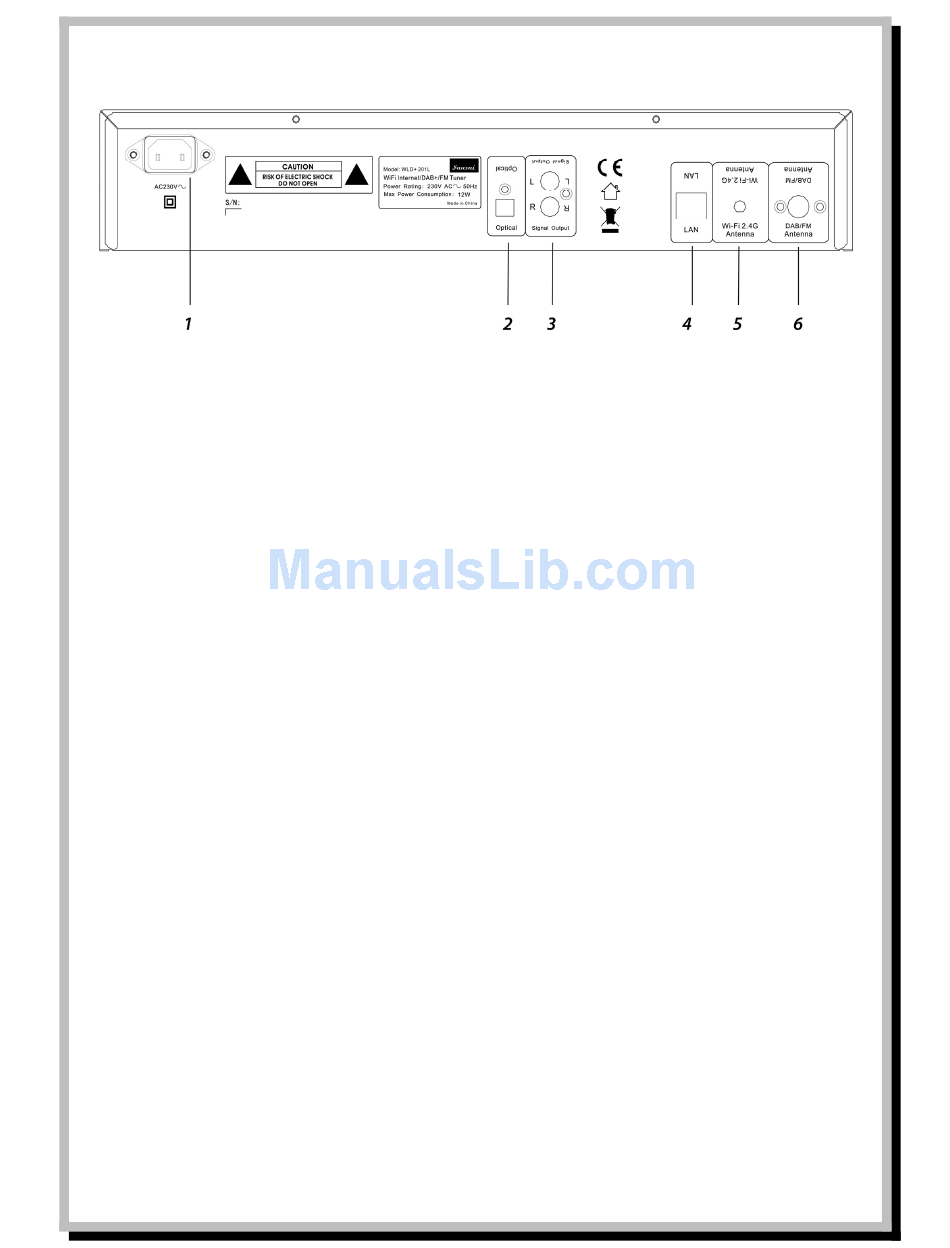

Rear Panel
1.
Power cord inlet: Plug in the supplied power cord here.
2.
Digital Optical output. Connect an optical cable (not supplied) to connect to a digital input such as the optical input on
the Sansui SAP201V or SAP601 amplifiers.
RCA /phono stereo output connections. Connect supplied RCA to RCA stereo pair cable ensuring the red connector on
3.
the cable is connected to the red connector on both the WLD+201 and your amplifier.
Ethernet cable connection for connecting an Ethernet network cable between the WLD+201 and a router.
4.
2.4 Ghz wi-fi antenna input jack (for internet radio) (supplied)
5.
75 ohm tuner antenna (supplied)
6.
Page | 10
© Sansui UK 2011 WLD+700L IB Ver 1.0 Rev 0.0
