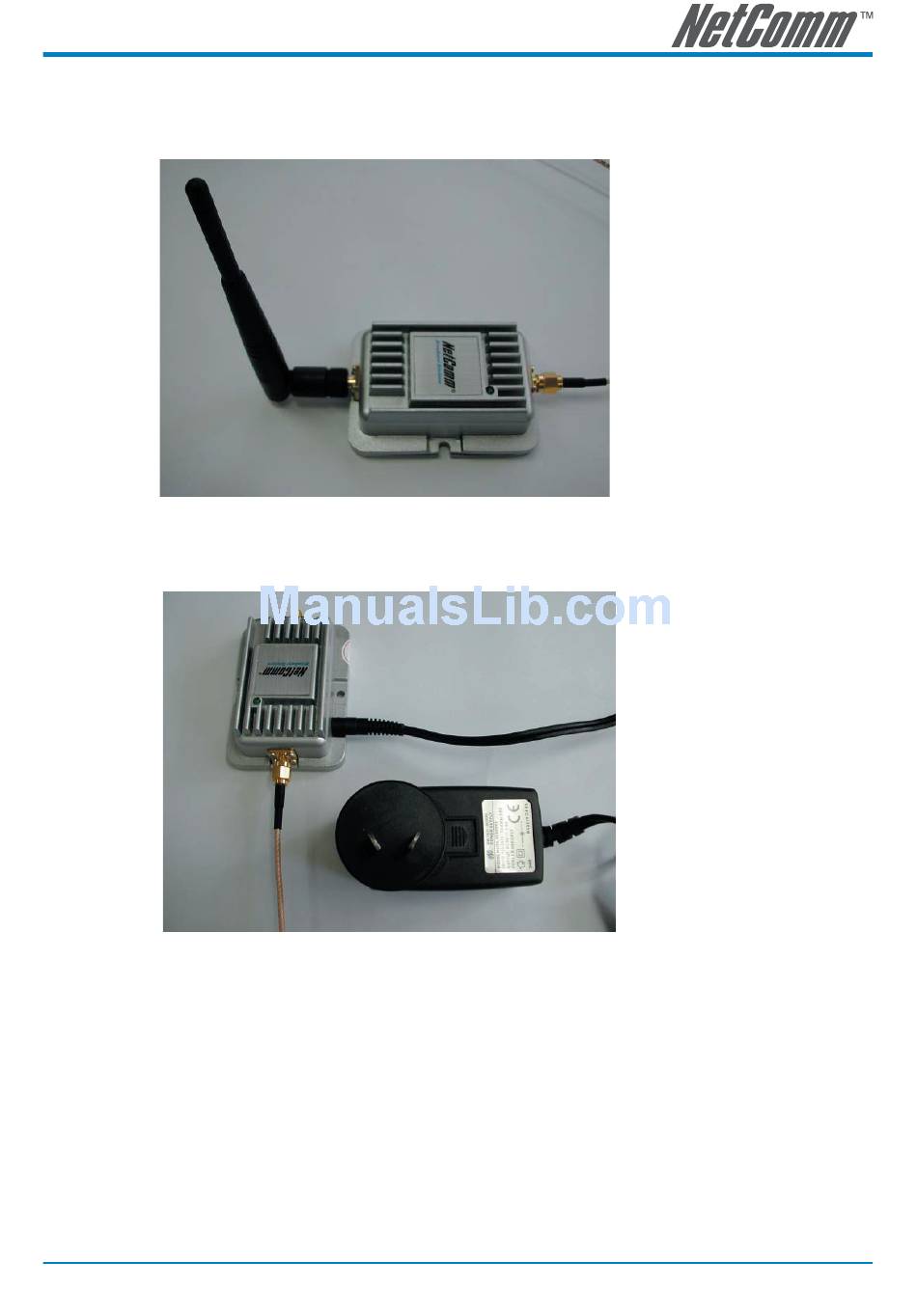

Step 3:
Screw the antenna from your Router/Access Point to the end of the Booster marked "To
Antenna"
Step 4:
Connect the power to the DC jack on the Booster.
IMPORTANT:
The NP560/NP562 is compatible with 802.11b/g equipment only.
Your router or access point must have a detachable SMA antenna in order to use a
Wireless Booster.
The connector cable uses SMA connectors (adaptors are available from NetComm for
other aerial connector types).
The installation procedure is the same for NP560 (200mW) and NP562 (500mW)
Boosters.
Longer connection cables are available to connect your Router/Access Point to the
Booster, however, these cables need to be made by a cable specialist and will reduce
your signal strength.
