Installing the NetComm Indoor Wireless Booster
Step1:

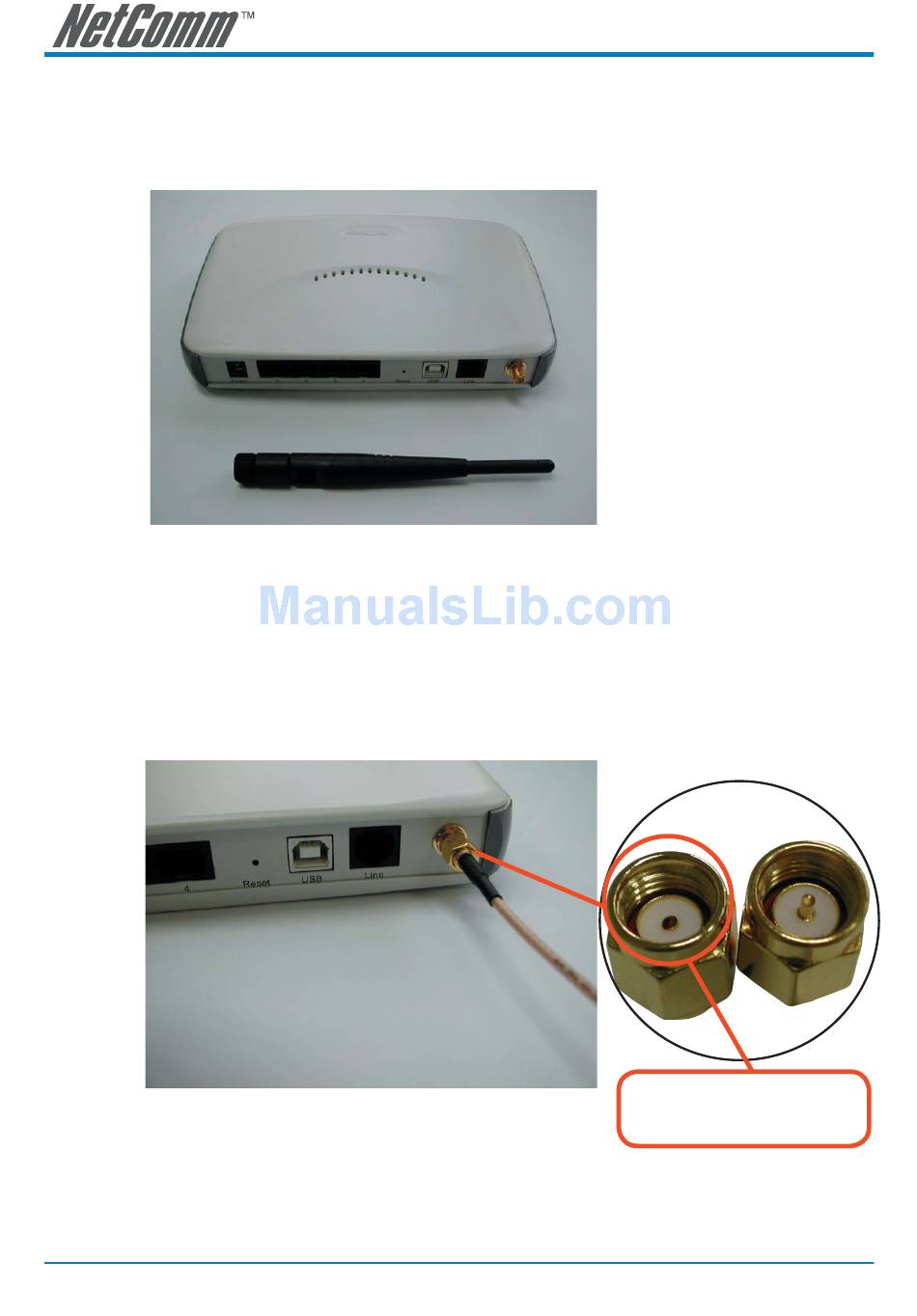

Unscrew and remove the existing antenna on your Wireless Router or Access Point.
Note: Your equipment must have a detachable SMA antenna in order to use the
NP560/NP562 NetComm Wireless Booster
Step 2:
The connector cable that comes with the Booster needs to be installed in a specific way.
On the bottom of the Booster you will see one end connects marked "To Radio". This end
connects to your Router/Access Point. The other end is marked "To Antenna" and this is
where you re-attach your antenna.
The supplied cable is fitted with two different connectors; one designed to attach to your
Router/Access Point and the other designed to attach to the booster. Please ensure you
connect the ends correctly or you may damage the Booster or your Router/Access Point.
6
(NP560/NP562)
The cable connector without
the pin connects to your
router or access point.
