Summary of Contents for Monster FLATSCREEN
-
Page 1: Installation Manual

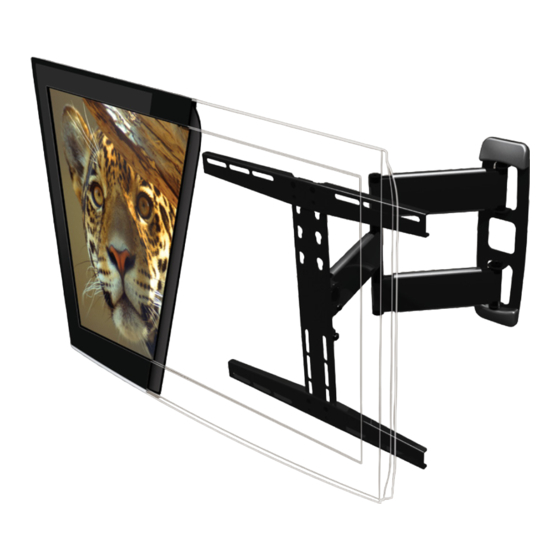

SUPERTHIN MEdIUM ARTIcUlATINg MOUNT ™ SECURE, EASY TO INSTALL, LOW-PROFILE MOUNT WITH EXTENDING SWING ARMS INSTAllATION MANUAl ANd wARRANTy " " lbs. (68-116cm) (36.28kg) -
Page 2: Safety Warning
MEdIUM ARTIcUlATINg MOUNT ™ This SuperThin mount is designed to mount 27"– 46" (68 – 116 cm) flatscreen televisions to vertical walls. Maximum weight capacity is 80 lbs. (36.28 kg). SAFETy wARNINg If you don’t understand these directions, or are Before installing, carefully review the instructions to ensure that no parts are missing or defective. - Page 3 4.92" to 15.75" (12.5cm to 40cm) 9.01" (22.9cm) 17.4" (44.2cm) 8.58" (214cm) 18.78" (47.4cm) Specifications and Notes VESA 200×200 / 300×300 / 400×200 / 400×400 Compliant ™ Monster is constantly striving to improve its products. Specifications are subject to change without notice.
-
Page 4: Package Contents
4 each M6×10 / M6×15 / M6×25 4 each M8×10 / M8×15 / M8×25 1 Electronic 2 Allen Keys 1 Hex Wrench Studfinder Package contents If any parts are missing, please call the appropriate Monster number for your location. See page 2 for phone numbers. -
Page 5: Read Before Installing
DO NOT drill holes in masonry mortar joints. (7) DO NOT install unit alone. Safe installation requires at least two people. (8) DO NOT route your flatscreen TV’s power cord in wall. Check local building/electrical codes for more information. (9) DO NOT over tighten screws or bolts. This can damage the wall plate or the surface of your wall. -
Page 6: Required Tools
Above tools from any source of heat or water. Replace ³ ∕ ₁₆ " drill bit with ½" masonry drill bit Hammer TIP: To hide your TV’s power cord and AV cables, install a Monster FlatScreen CleanView Cable ™ ™... - Page 7 Installing the wall Mounting Plate Remove all pieces of the wall mounting system to ensure you have all necessary parts. wood Stud Mounting An electronic studfinder is included. Remove plastic tab on the back of the studfinder to activate battery. To locate a wall stud, hold the studfinder against the wall where you want to mount your TV.
- Page 8 wood Stud Mounting (cont’d) With your electric drill and ³ ∕ ₁₆ " bit, pre-drill a 3" deep hole where indicated on template. After drilling holes, remove template from wall. Remove plastic covers on wall mounting plate. Position the wall mounting plate over the holes drilled in the wall studs.
- Page 9 wood Stud Mounting (cont’d) Make sure the wall plate is level by using the supplied bubble level. Place the provided level on the wall plate and confirm that the wall plate is vertically straight. Hold the plate firmly in place. With the help of another person, attach the wall plate to the wall using the lag bolts and round washers as shown to the right.
- Page 10 Masonry Mounting Masonry mounting requires specialized knowledge, skills and tools. Monster highly recommends that DO NOT drill holes in masonry you seek the help of a professional installer when mortar joints. mounting to masonry. Position the supplied cardboard template in the desired location and tape template to wall with masking tape.
- Page 11 Masonry Mounting (cont’d) Install the supplied plastic concrete anchors in each hole. Tap into hole with hammer until fully seated. Remove plastic covers on wall mounting plate. Position the wall mounting plate over the holes drilled in the wall.
- Page 12 Masonry Mounting (cont’d) Make sure the wall plate is level by using the supplied bubble level. Place the level on the wall plate and confirm that the wall plate is vertically straight. Hold the plate firmly in place. With the help of another person, attach the wall plate to the wall using the lag bolts and round washers as shown to the right.
- Page 13 Attaching your Flatscreen TV to the TV Mounting Brackets DO NOT lay your TV face down when attaching the TV mounting brackets. The television should be unplugged This can cause permanent damage before threading any bolt or screw into to your screen. Lean it against a wall the back panel.
- Page 14 Hanging your Flatscreen TV on the Articulating Arm With the help of another person, lift your TV up to mount level. Raise the TV just above the center plate on the end of articulating arm. Hang brackets from appropriate keyholes on center bar depending on bracket spacing and desired height.
- Page 15 Adjusting the Flexibility of the Tilt Mechanism Using the supplied Allen key and hex wrench, adjust the bolts on the side of the articulating arm where it connects to the center plate to desired feel of the tilt mechanism. To adjust tilt angle, gently pull top of TV while pushing the bottom to the desired position up to 12°.
- Page 16 Routing your TV’s Power cord and AV cable through the cable Management System With the mount completely installed on the wall and your TV properly secured to the mount, fully extend the mount’s articulating arm. Connect your TV’s power cord to the TV (if TV uses a detachable-type power cord).
- Page 17 NOTE: DO NOT run power and AV cables in the same channel, as this may cause electrical interference that can affect picture and sound quality. congratulations You’ve successfully installed your Monster SuperThin FlatScreen Mount. ™ Visit us at www.MonsterCable.com/FlatScreen for more innovative Monster FlatScreen products.
- Page 18 Ultra-soft for easy routing and installation. Exclusive Monster MicroFiber cloth won’t scratch delicate screen patented technologies deliver the advanced coatings. performance you need from your flatscreen TV. For more details on all our Monster FlatScreen products, visit us at MonsterCable.com/FlatScreen...
-
Page 19: Limited Warranty For Consumers
(including without transferred ownership of the Product, whichever occurs limitation building and/or electrical codes), (iv) in earlier. Also, You must call Monster and obtain a Return accordance with manufacturer recommendations and / Authorization Number (as described under “How to or instructions in the materials and documentation that Make a Claim”) within two (2) months after You discover... - Page 20 If a repair estimate is required, You will be English version shall prevail. instructed on how to properly submit the estimate and the resulting invoice to Monster for payment. Any fees for REGISTRATION. Please register Your Product at repairs may be negotiated by Monster.
