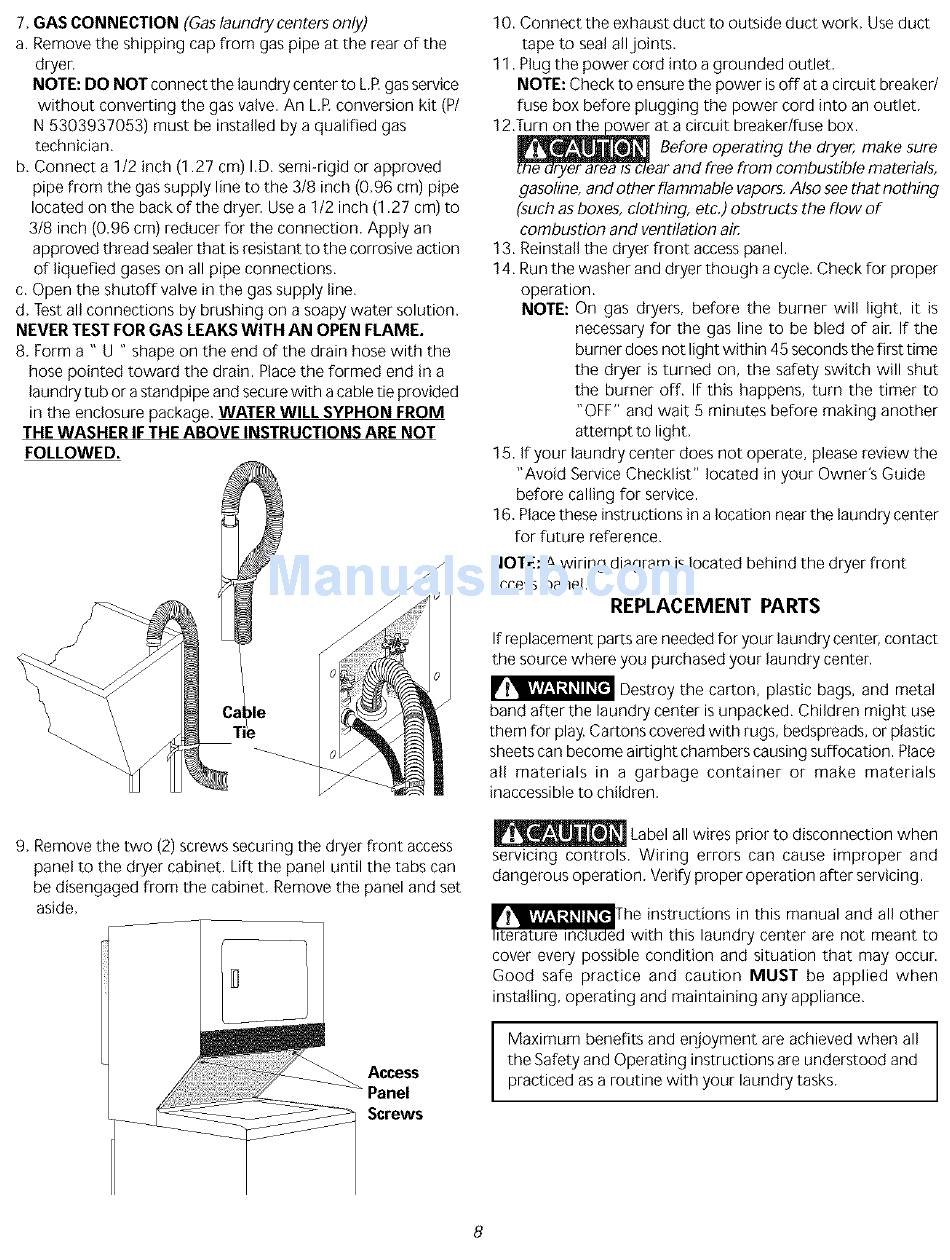

7,GAS CONNECTION
(Gas laundry centers only)
a. Remove the shipping cap from gas pipe at the rear of the
dryer,
NOTE: DO NOT connect the laundry center to LR gas service
without converting the gas valve. An LR conversion kit (P/
N 5303937053) must be installed by a qualified gas
technician.
b. Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or approved
pipe from the gas supply line to the 3/8 inch (0.96 cm) pipe
located on the back of the dryer, Use a 1/2 inch (1.27 cm) to
3/8 inch (0.96 cm) reducer for the connection. Apply an
approved thread sealerthat isresistant to the corrosive action
of liquefied gases on all pipe connections.
c. Open the shutoff valve in the gas supply line.
d. Test all connections by brushing on a soapy water solution.
NEVER TEST FOR GAS LEAKSWITH AN OPEN FLAME.
8. Form a " U " shape on the end of the drain hose with the
hose pointed toward the drain. Place the formed end in a
laundry tub or a standpipe and secure with a cable tie provided
in the enclosure package, WATER WILL SYPHON FROM
THE WASHER IF THE ABOVE INSTRUCTIONS ARE NOT
FOLLOWED,
9. Remove the two (2) screws securing the dryer front access
panel to the dryer cabinet. Lift the panel until the tabs can
be disengaged from the cabinet, Remove the panel and set
aside,
Access
anel
Screws
10. Connect the exhaust duct to outside duct work, Use duct
tape to seal all joints,
11. Plug the power cord into a grounded outlet,
NOTE: Check to ensure the power is off at a circuit breaker/
ruse box before plugging the power cord into an outlet,
12.T_
at a circuit breaker/fuse box.
Before operating the dryer, make sure
the dryer area _sclear and free from combustible materials,
gasoline, and other flammable vapors, Also see that nothing
(such as boxes, clothing, etc.) obstructs the flow of
combustion and ventilation air,
13. Reinstall the dryer front access panel.
14. Run the washer and dryer though a cycle, Check for proper
operation.
NOTE: On gas dryers, before the burner will light, it is
necessary for the gas line to be bled of air, If the
burner does not light within 45 seconds the first time
the dryer is turned on, the safety switch will shut
the burner off. If this happens, turn the timer to
"OFF" and wait 5 minutes before making another
attempt to light,
15. If your laundry center does not operate, please review the
"Avoid Service Checklist" located in your Owner's Guide
before calling for service.
16, Placethese instructions in a location near the laundry center
for future reference.
NOTE: A wiring diagram is located behind the dryer front
access panel.
REPLACEMENT
PARTS
If replacement parts are needed for your laundry center, contact
the source where you purchased your laundry center.
I!!_IKI_,!_I
Destroy the carton, plastic bags, and metal
band after the laundry center is unpacked. Children might use
them for play Cartons covered with rugs, bedspreads, or plastic
sheets can become airtight chambers causing suffocation. Place
all materials
in a garbage container
or make materials
inaccessible to children,
_
Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper and
dangerous operation, Verify proper operation after servicing.
[he instructions in this manual and all other
this laundry center are not meant to
cover every possible condition and situation that may occur.
Good safe practice and caution MUST be applied when
installing, operating and maintaining any appliance.
Maximum benefits and enjoyment are achieved when all
the Safety and Operating instructions are understood and
practiced as a routine with your laundry tasks,
8
