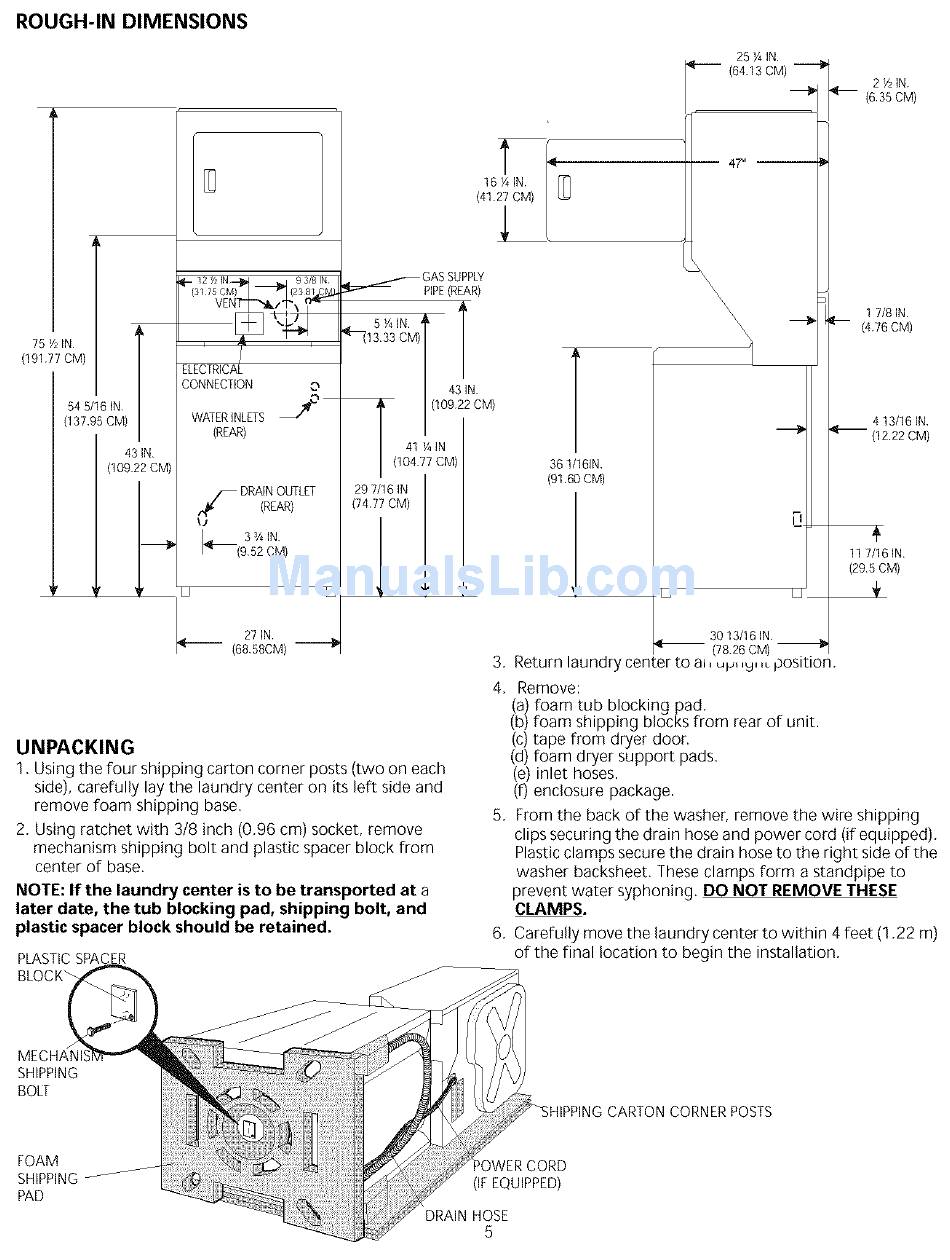

ROUGH-IN
DIMENSIONS
75 Y_ IN
(19177 CM)
54 5/16 IN
(13795 CM)
43 IN
(109 22 CM)
i,
J
ELECTRICAL
CONNECTION
O
WATER iNLETS
_fO
(REAR)
I_
DRAIN OUTLET
f
(REAR)
\__
3Y_IN
(9 52 CM)
hJ
hJ
27 IN
(68 58CM)
GASSUPPLY
PiPE (REAR)
5Y41N
l
_1333
CM)
43 IN
_(
(1O922 eM)
10441 7 _41
NM)
29 7/16 iN
(7477 CM)
361/16iN
(9160 CM)
1
,
u
u
I1_
30 13/16 IN
(7826 CM)
Return laundry
center
to al, up, ,N, ,L position,
2YzlN
4t_
(6 35 CM)
1 7/8 iN
It--
(476 CM)
4 13/16 iN
(12 22 CM)
11 7/16 IN
(295 CM)
UNPACKING
1, Using the four shipping carton corner posts (two on each
side), carefully lay the laundry center on its left side and
remove foam shipping base.
2, Using ratchet with 3/8 inch (0,96 cm) socket, remove
mechanism shipping bolt and plastic spacer block from
center of base.
NOTE: If the laundry
center is to be transported at a
later date, the tub blocking pad, shipping
bolt, and
plastic spacer block should be retained.
PLASTICSPA(
4, Remove:
(a) roam tub blocking pad,
(b) roam shipping blocks from rear of unit.
(c) tape from dryer door.
(d) foam dryer support pads.
(e) inlet hoses.
(f) enclosure package,
5, From the back of the washer, remove the wire shipping
clips securing the drain hose and power cord
(if
equipped).
Plastic clamps secure the drain hose to the right side of the
washer backsheet, These clamps form a standpipe to
prevent water syphoning. DO NOT REMOVE THESE
CLAMPS.
6, Carefully move the laundry center to within 4 feet (1,22 m)
of the final location to begin the installation,
MECHANI!
SHIPPING
BOLT
G CARTON CORNER POSTS
FOAM
SHIPPING
PAD
:)OWER CORD
(IF EQUIPPED)
DSE
5
