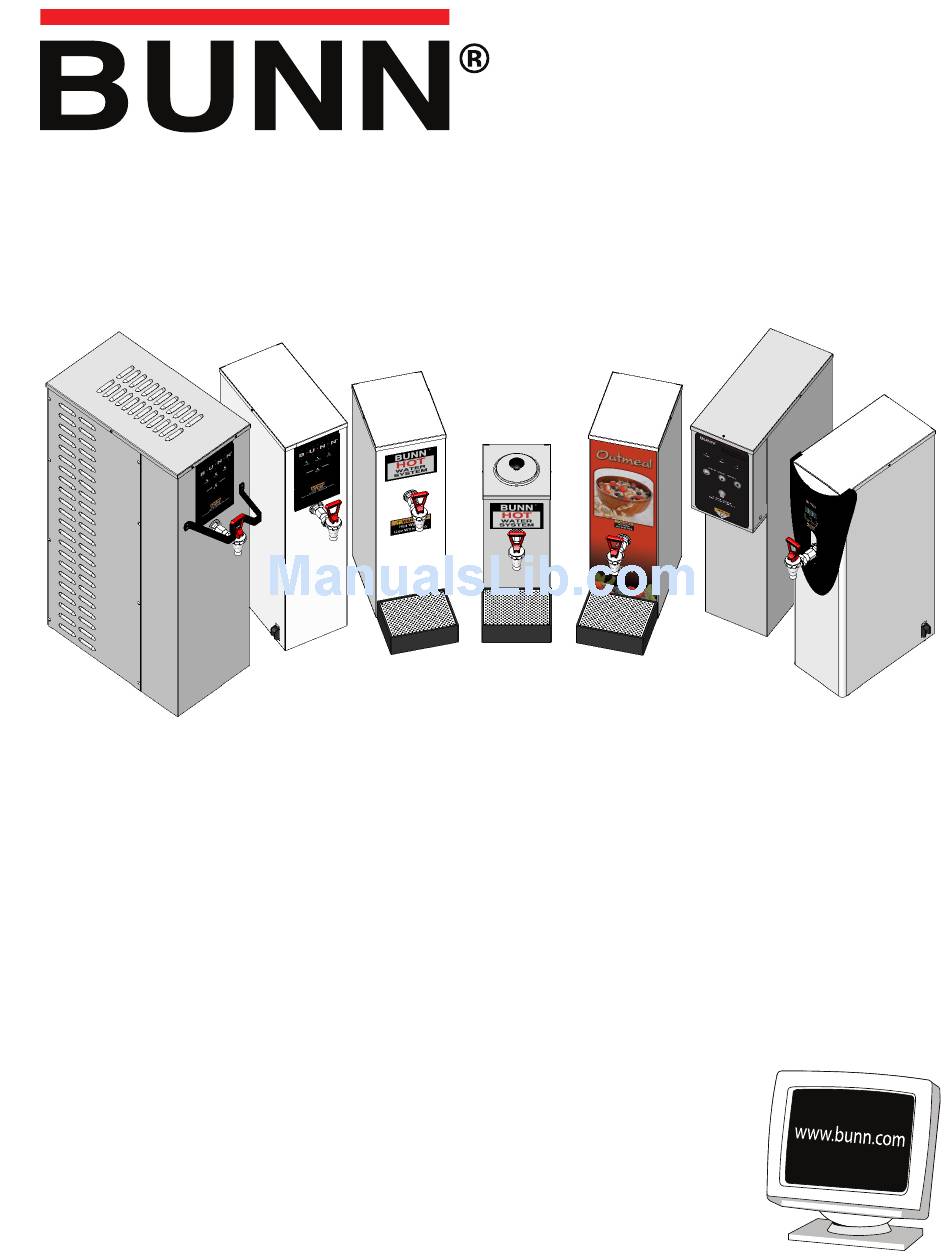

INSTALLATION & OPERATING GUIDE
To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit
the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain
the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain
a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
46819.0000A 06/12 © 2012 BUNN-O-MATIC CORPORATION
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
Hot Water
Dispensers
Supercedes
10052.0000; 10010.0000; 10267.0000
10420.0000; 10889.0000; 39338.0000
39338.0001; 44306.0000
FAX: (217) 529-6644
Advertisement
Table of Contents
Related Manuals for Bunn 10052.0000
Summary of Contents for Bunn 10052.0000
- Page 1 To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S.
-
Page 2: Warranty
AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages. -
Page 3: Table Of Contents
CONTENTS WARRANTY ......................2 INTRODUCTION ..................... 3 USER NOTICES ...................... 4 ELECTRICAL REQUIREMENTS ................5 PLUMBING REQUIREMENTS ................. 6 INITIAL SET-UP (H5E, H5X, H5-PC, H5 ELEMENT, H10X) ........6 INITIAL SET-UP H5M, HW2, OHW ................. 7 OPERATING CONTROLS (H5-PC ONLY) ..............8 ADJUST DISPENSE VOLUME (H5-PC ONLY) ............ -
Page 4: User Notices
THIS APPLIANCE IS HEATED WHENEVER To reduce the risk of electric shock, Authorized service personnel only. CONNECTED TO A POWER SOURCE Disconnect power before servicing. 00831.0000F 3/98 ©1998 BUNN-O-MATIC CORPORATION do not remove or open cover. No user-serviceable parts inside. 00831.0000 37881.0002... -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING - The dispenser must be disconnected from the power source until specified in Initial Set-Up. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements. POWER CORD POWER CORD POWER CORD NEUTRAL WHITE L2 RED NEUTRAL BLUE... -
Page 6: Plumbing Requirements
½˝ water supply line. At least 18 inches of an FDA approved flexible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the countertop. Bunn- O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the hole made in the supply line by this type of device may restrict water flow. -
Page 7: Initial Set-Up H5M, Hw2, Ohw
NOTE - Due to the tank capacity and heater size, this product should be used only for dispensing a few cups of hot water at a time. (Larger capacity Bunn-O- Matic hot water dispensers are available.) 46819 043012... -
Page 8: Operating Controls (H5-Pc Only)
NOTE: The dispenser should be at operating temperature before setting dispense volumes. 1. Press and hold the hidden programming button (c) located under the ® next to the BUNN logo on the front of the dispenser until the 3 LED's begin flashing from the left to the right. Release the button. -
Page 9: Programming (H5E, H5X, H5-Pc, H10X)
PROGRAMMING - H5-E, H5-PC, H5X, H10X When power is applied to the dispenser, the display located on the bottom of the main circuit board will show the software version for 5 seconds, and then it will show the model number (see chart below) it will then go to (-). - Page 10 PROGRAMMING - H5-E, H5-PC, H5X, H10X Continued LEVEL 2 PROGRAMMING H1 - DISPENSE TEMPERATURE LOCKOUT - PORTION CONTROL ONLY (WILL NOT DISPLAY ON OTHER MODELS) 1. To enter Level 2 Programming, press and hold the center button until H1 ap- pears on the display (approximately 6 seconds) then release button.
-
Page 11: Programming (H5 Element)
3. Use a small screwdriver to move switch to set position. 4. Install top cover, connect dispenser to power source. Step backward Programming the dispenser: 1. Press and hold upper hidden button (bottom center of “BUNN” logo) until “P1” is displayed. Continued 46819 061212... - Page 12 PROGRAMMING - H5-ELEMENT Continued 2. The display will now show the model number. (H5H) 5 Gallon High Voltage Unit (200-240V) (H5L) 5 Gallon Low Voltage Unit (100-120V) Now scroll with the (+/-) buttons through the models listed above until the display matches the model you are working with.
- Page 13 PROGRAMMING - H5-ELEMENT Continued LEVEL 2 PROGRAMMING H2 - F° OR C° SELECTION 1. To enter Level 2 Programming, press and hold the upper hidden button until H2 appears on the display. Release the upper hidden button. The display will show either FAH (Degrees in Fahrenheit) or CEn (Degrees in Centigrade).
-
Page 14: Draining The Dispenser
CLEANING The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. WALL MOUNTED INSTALLATION - 5 GALLON MODELS ONLY If the dispenser is wall mounted, the bottom of the dispenser should be at the same height as a counter or table top.
