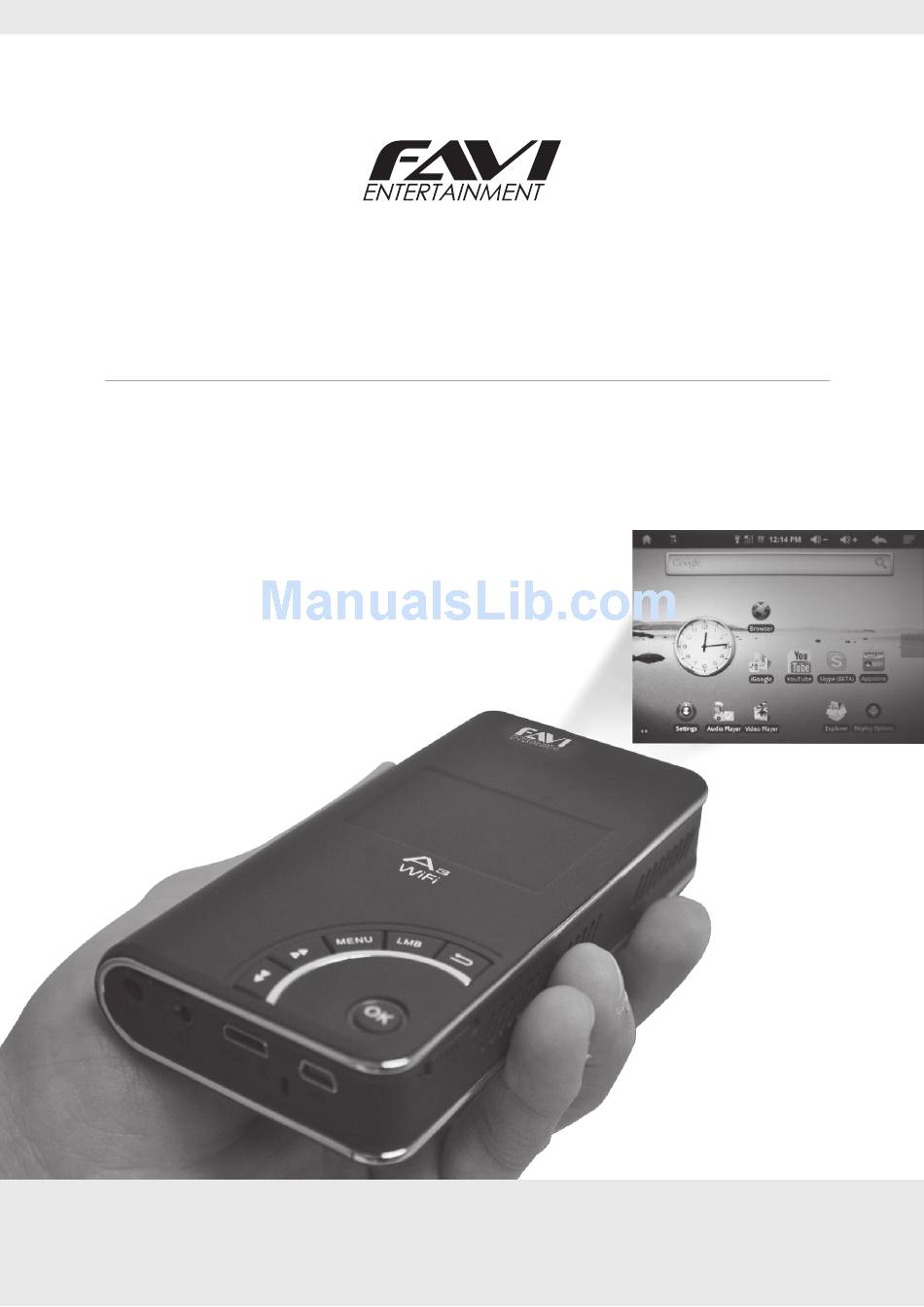

Page 1: User Guide
USER GUIDE A3-WiFi Pocket Projector with Android OS and Touchpad 2012 FAVI Entertainment www.favientertainment.com... - Page 2 Android operating system. NOTE: FAVI Entertrainment does not accept responsibility for any loss of personal data or damage caused by incorrect operation of this projector and any software that resides on its. While every e ort has been made to ensure this user guide has the most accurate and up to date informations, speci cations and software features.
-
Page 3: Table Of Contents
FAVI A3-WiFi User Guide CONTENTS Product Introduction Introduction Functions and Features Battery Charging Information Powering the Projector ON and OFF Appearance and Components Front View Top View Right Side View Rear View Button Functions and Features Front Back Explanation of the Function Icons... - Page 4 FAVI A3-WiFi User Guide CAUTION Please observe the following safety precautions while operating your projector. Keep the projector away from strong magnetic elds, such as unshielded stereo speakers. Strong magnetic elds may damage your projector’s software and render the device unusable.
-
Page 5: Introduction
FAVI A3-WiFi User Guide Introduction Package Includes: Components Qty . Projector Gift Box Charger 5V/3A VGA-Audio Cable Table-Top Tripod Projector Clip AV Cable USB Extended Line User Guide USB Cable Functions and Features Adopts the Rockchip 2818 as the main chip, hARM embedded dual CPU structure. Supports built-in WiFi. -
Page 6: Battery Charging Information
FAVI A3-WiFi User Guide Battery Charging Information Charge the battery for about 8-12 hours to make sure the battery is fully charged for the rst time. Insert the DC power jack into the DC slot on the back of the projector, then plug the power cord into an outlet. -
Page 7: Powering The Projector On And Off
FAVI A3-WiFi User Guide Powering the Projector ON and OFF Before rst use, connect the DC power adapter and allow the projector to fully charge. Powering ON the projector: Slide and hold the power switch for a few seconds. You will hear the projector’s cooling fan spin up and an image will start projecting as the projector loads the Android Operating System. -
Page 8: Appearance And Components

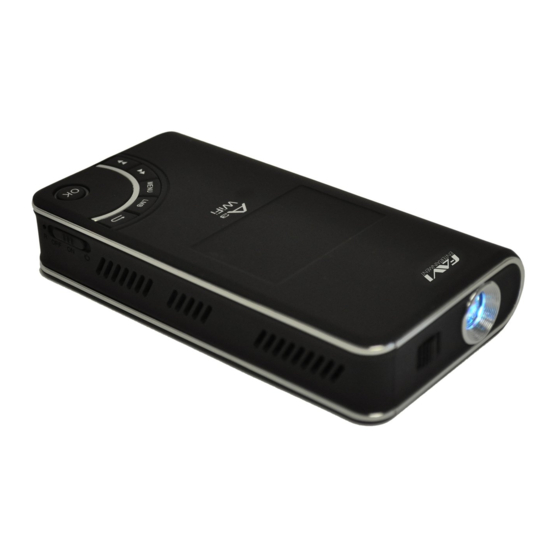

FAVI A3-WiFi User Guide Appearance and Components FRONT VIEW Touch Pad WiFi Left Mouse Button Return Button Menu Button Next Button Play/Pause/Enter Button Previous Button TOP VIEW Lens Focus Wheel FAVI Entertainment... -
Page 9: Right Side View
FAVI A3-WiFi User Guide RIGHT SIDE VIEW Heat Sink For power save mode when playing music: Push and hold the power button for three Speaker seconds then release the power button when the projector begins to project an image. Slide and hold the power button for three... -
Page 10: Front
FAVI A3-WiFi User Guide Features Overview Button Functions WiFi FRONT Touch pad mouse: When hovering over an icon, tap the touchpad to click on the icon. Double tap and slide your nger to change between di erent home screens, pull down the noti cation bar, and perform other operations that are normally done on an Android OS. -
Page 11: Top
FAVI A3-WiFi User Guide Projector Lens: The projector uses live matrix liquid crystal display technology, providing the same perfect visual e ect as monitor liquid crystal displays. When cleaning it, wipe the projector lens with soft cloth (if necessary) with clear water without chemical liquid. -
Page 12: Explanation Of The Function Icons
FAVI A3-WiFi User Guide Explanation of the Function Icons FAVI Entertainment... -
Page 13: Wifi Settings
FAVI A3-WiFi User Guide WIFI settings A . You can access the WiFi settings by moving the mouse arrow over the application menu icon clicking it. Scroll down to locate the settings icon . You can scroll by either using the scrolling arrow buttons on the projector or by holding down the “LMB”... - Page 14 FAVI A3-WiFi User Guide IP Address Settings By default most WiFi networks assign IP addresses automatically. Your projector is set to automatically obtain an IP address from any WiFi networks. On networks where IP addresses are assigned manually, you will need to obtain the necessary information to connect to that network and con gure your projector to use a static IP.
- Page 15 FAVI A3-WiFi User Guide Press the back icon once you have saved the information. This will take you back to the WiFi setting screen. You should now be able to connect to the wireless network. Network 1 Available Ne Available Ne...
-
Page 16: Transflash (Micro Sd) Card Storage
FAVI A3-WiFi User Guide External Storage To use an external USB disk, rst make sure “Host Mode” is enabled. Using the supplied adapter cable, plug in the USB disk then open the “Explorer” app by clicking the icon located on the desktop by default. - Page 17 FAVI A3-WiFi User Guide You should now see a directory screen that you can use to locate the APK le that you wish to install. Select either “Internal Memory” or “SD Card” depending on where the APK le resides. Enter folders by clicking on them.
-
Page 18: Operation Details
FAVI A3-WiFi User Guide Operation Details Desktop system Enter the Music Player: On the desktop press the music icon to enter into the main interface of the music player. Double-click a track in the list to play music as shown in the following photos. -
Page 19: Multimedia Music/Video/Picture/Recording
FAVi A3-WiFi User Guide Music player butttons description Button Function Button Function Artist Album Song Playing music list Random play Loop playback Play the last song Play the next song In the application menu or on the desktop, click the audio player icon to launch the audio player. - Page 20 FAVI A3-WiFi User Guide Audio player buttons description Button Function Button Function Browse the playlist Online music searching Artist Album Other audio View music les on disc New playlist Switch to audio playing EQ setting Quit (normal, rock, classical, pop)
- Page 21 FAVI A3-WiFi User Guide Click this button to delete bookmarks, play mode, TV-OUT etc. as shown below. Photo Broswer In the application menu or on the desktop, click the photo broswer icon to enter the photo browser. The photo browser will scan both the internal ash memory and any SD cards that are inserted into the projector.
-
Page 22: W Eb Browser
FAVI A3-WiFi User Guide Adding pictures This device supports the following picture formats: BMP, JPG, JPEG, PNG, GIF. If there are no les in the photo list, the system will automatically load the image les from the micro SD card after the photo browser has been launched. By tapping the setting button of the picture, it can be set as the wallpaper. -
Page 23: Email
FAVI A3-WiFi User Guide Email Your projector comes with an email app that can be set up once WiFi is connected. Locate the email application icon and click on it to launch the email app. You should see the automatic email setup... - Page 24 FAVI A3-WiFi User Guide Manual e-mail setup After clicking the “Manual Setup” screen, you will see a screen where you can choose the e-mail server type. You can choose between POP3, IMAP, or Exchange servers. this? After choosing the type of server your email service runs on, you can set up the information required to connect to that service.
- Page 25 FAVI A3-WiFi User Guide Email function buttons description Writing e-mail Click the taskbar icon then tap the pop up toolbar icon and enter the compose e-mail. Tap the attach icon to add an email attachment. Tap the edit subject icon and you can edit the subject of your email.
-
Page 26: Video Settings
FAVI A3-WiFi User Guide Mailbox setting Tap the taskbar icon . Tap the toolbar icon again to set icon . Enter the following settings screen. Signature Append text to messages you send. Con rm delete Show a dialog whenever you delete a conversation. - Page 27 FAVI A3-WiFi User Guide VGA settings Change the computers resolution to 800 x 600 or 640 x 480. To do this, click the right mouse button then select the "Properties" tab to enter the next window. Note: This may also be called "Graphics Properties."...
- Page 28 FAVI A3-WiFi User Guide When connecting the projector to a desktop computer set the resolution before connecting the VGA cable to the computer. Once you have set the resolution you can connect the projector to the computer using the VGA cable. Connect one end to the computers VGA port and connect the other end of the cable to the projectors mini VGA port.
-
Page 29: Technical Speci Cations
FAVI A3-WiFi User Guide AV settings First adjust the projector to AV mode and select one of the “CVBS” options in the resolution menu. We o er two national standard formats, NTSC and PAL. Use the AV cable to connect the projector to your DVD player, cable box, or psp. - Page 30 FAVI A3-WiF User Guide LED lamp live 20,000 hours Resolution 800 x 600 Lamp Info Continue 1000 : 1 Contrast Ratio Aspect Ratio 4:3 ; 16:9 Image Size 7”-100” (Diagonal) Project Distance 17.8cm to 300cm Operation Touch pad, Remote control, Wireless mouse and keyboard USB 2.0 input, VGA Port, DC port, Micro TF slot, earphone port...
-
Page 31: Troubleshooting
Check that the USB cable is broken. Micro o ce software The Favi A3-Pico's o ce software consists of the following: Word Pad, Word, Excel, Powerpoint. The projector has been installed with the relevant o ce software. The o ce software can be directly copied to the projectors internal memory through the USB cable.
