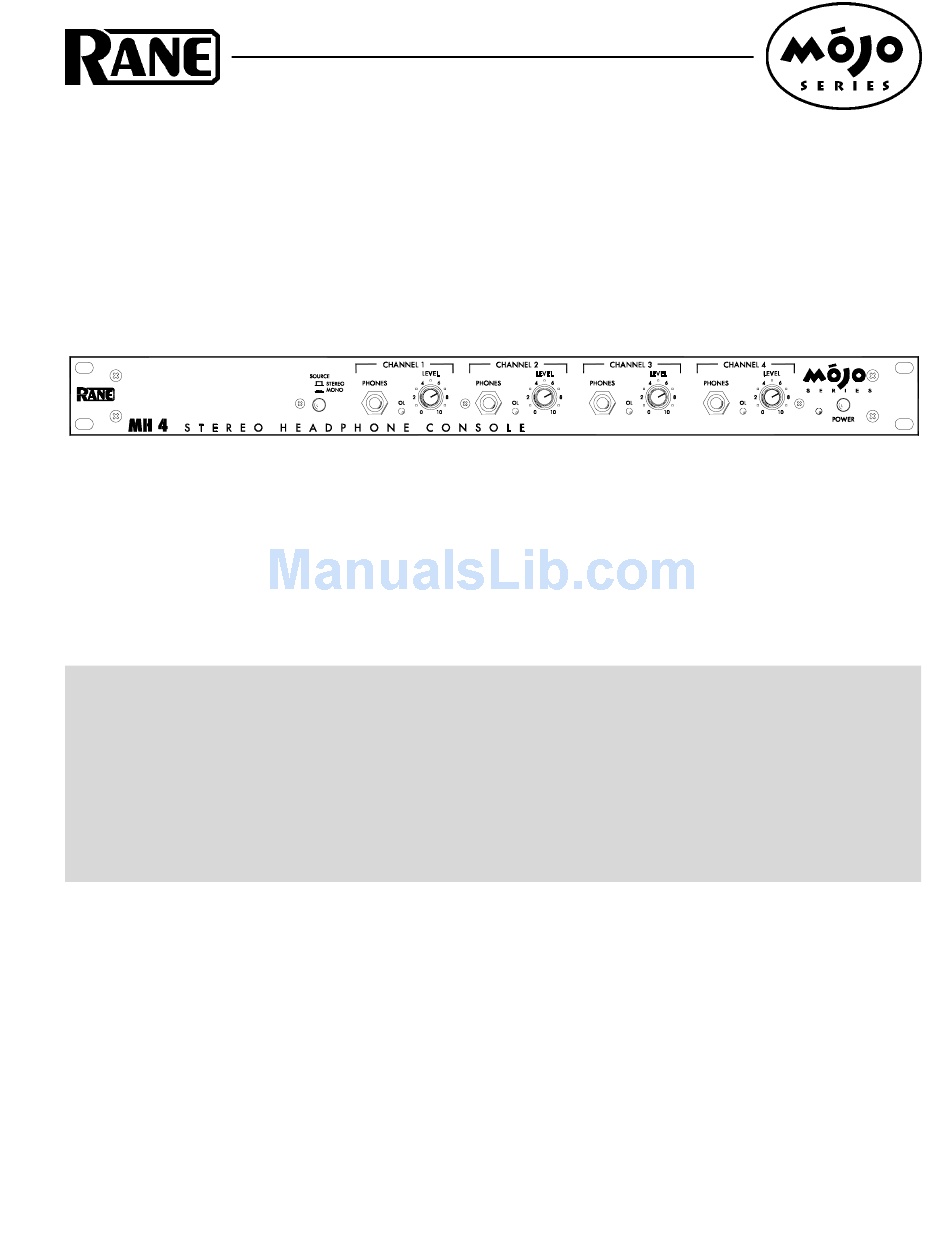

OPERATORS MANUAL

QUICK START

Conect the output from any stereo source such as a mixer or tape deck, and plug the left and right inputs into the
respective INPUT jacks. The Inputs accept balanced or unbalanced sources. Just plug them in. This source is now routed to
each of the four Outputs.
For a single mono source feeding all headphones, connect it to either one of the INPUT jacks and engage the STEREO/
MONO switch. Set the CHANNEL LEVEL controls for individual headphone levels.
Never connect anything except a Rane power supply to the thing that looks like a telephone jack on the rear of the
unit. This is an AC input and requires special attention if you do not have a power supply exactly like the one originally
packed with your unit. See the full explanation of the power supply requirements elsewhere in this manual.
WEAR PARTS: This product contains no wear parts.

HEADPHONE AMPLIFIER

MH 4
Manual-1
