Quick Start

Basic MA 4 operation is straightforward:
1. The universal switching power supply works with 100 to 240 VAC, 50/60 Hz.
2. Make sure the front panel power switch is off (the unit consumes 5 watts in standby mode).
3. Connect balanced inputs (rear panel).
4. Set SENSITIVITY controls to +22 (see why on page Manual-2) (rear panel).
5. Turn the Downward EXPander ON (rear panel).
6. Set COMPressor to 10 dB (rear panel).
7. Select the appropriate HIGH PASS filter frequency (20, 40, 60 or 80 Hz on rear panel).
8. Connect speaker loads (rear panel).
9. Make sure you have adequate ventilation around the unit – see Safety Instructions.
10. Turn ON the front panel power switch. You're good to go!
Metering shows the status of the amplifier at a glance (see page Manual-3). Headroom (with any load), dynamics control, Fault status
and Load status are indicated for each channel.
Extra Credit
For remote turn-on, fault reporting and back-up amplifier operations, and remote level control wiring, see page Manual-4.
For FAULT FLAG operation (applications and reported faults), see page Manual-3.

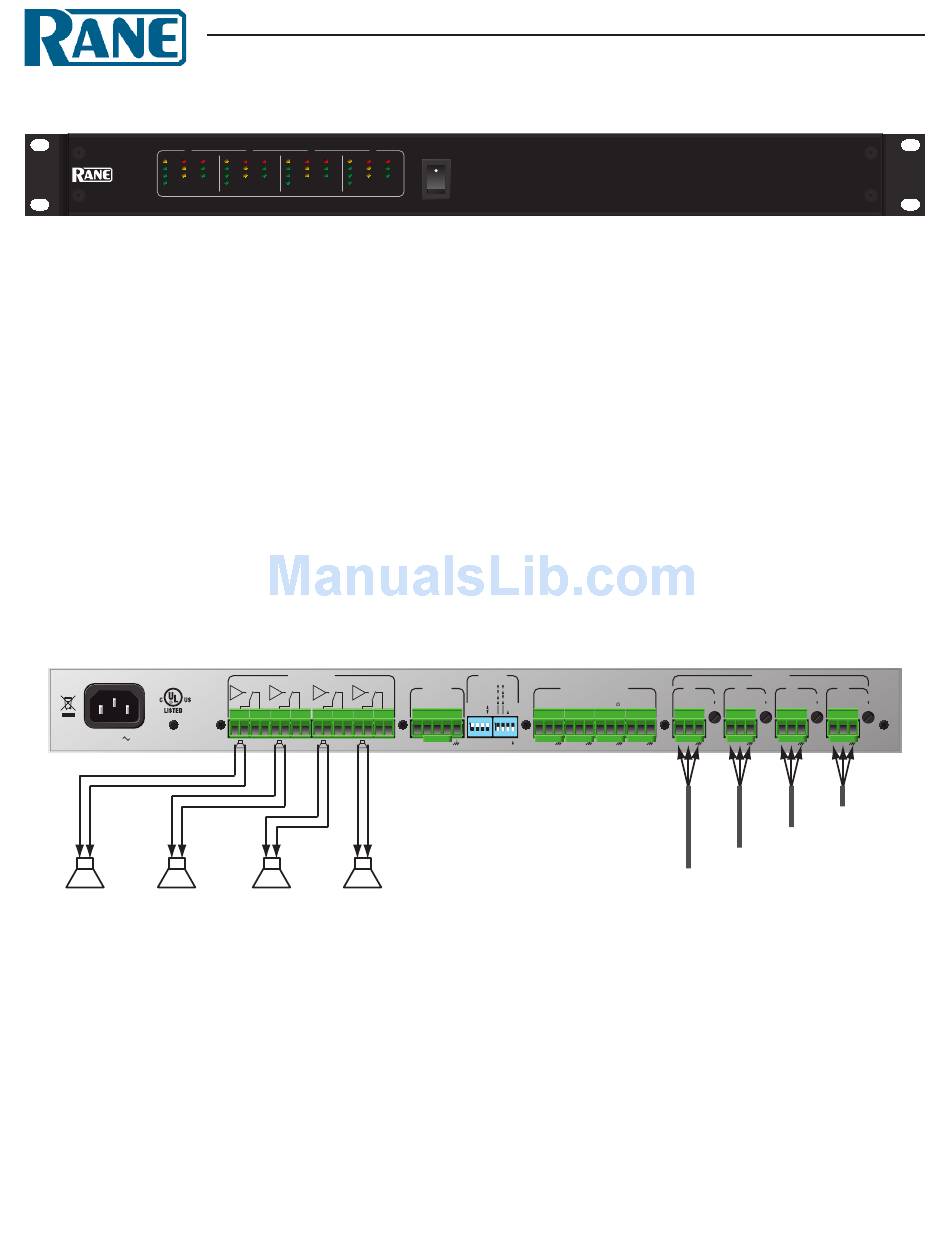

MA 4
MADE IN U.S.A.
COMMERCIAL AUDIO
RANE CORP.
EQUIPMENT 24TJ
R
100-240V
50/60 Hz 500 WATTS
+
+
Installation
• No rear mounting hardware required.
• Allow adequate ventilation to keep ambient temperature around the amplifier below 104˚F (40˚C).
• Fan cooled with inset intake on left side and inset exhaust on right side (no filter)
• Amplifier heat load in Btu/hr at 100/240 VAC
º 10.2 / 13.3 Btu/hr All amplifiers in standby
º 112.3 / 95.5 Btu/hr All amplifiers on, no signal
º 167 / 139
Btu/hr All amplifiers driven, pink noise, 12 watts avg. 4:1 crest
º Note: 1 watt x 3.413 = 1 Btu/hr.
WEAR PARTS: This product contains no wear parts.
