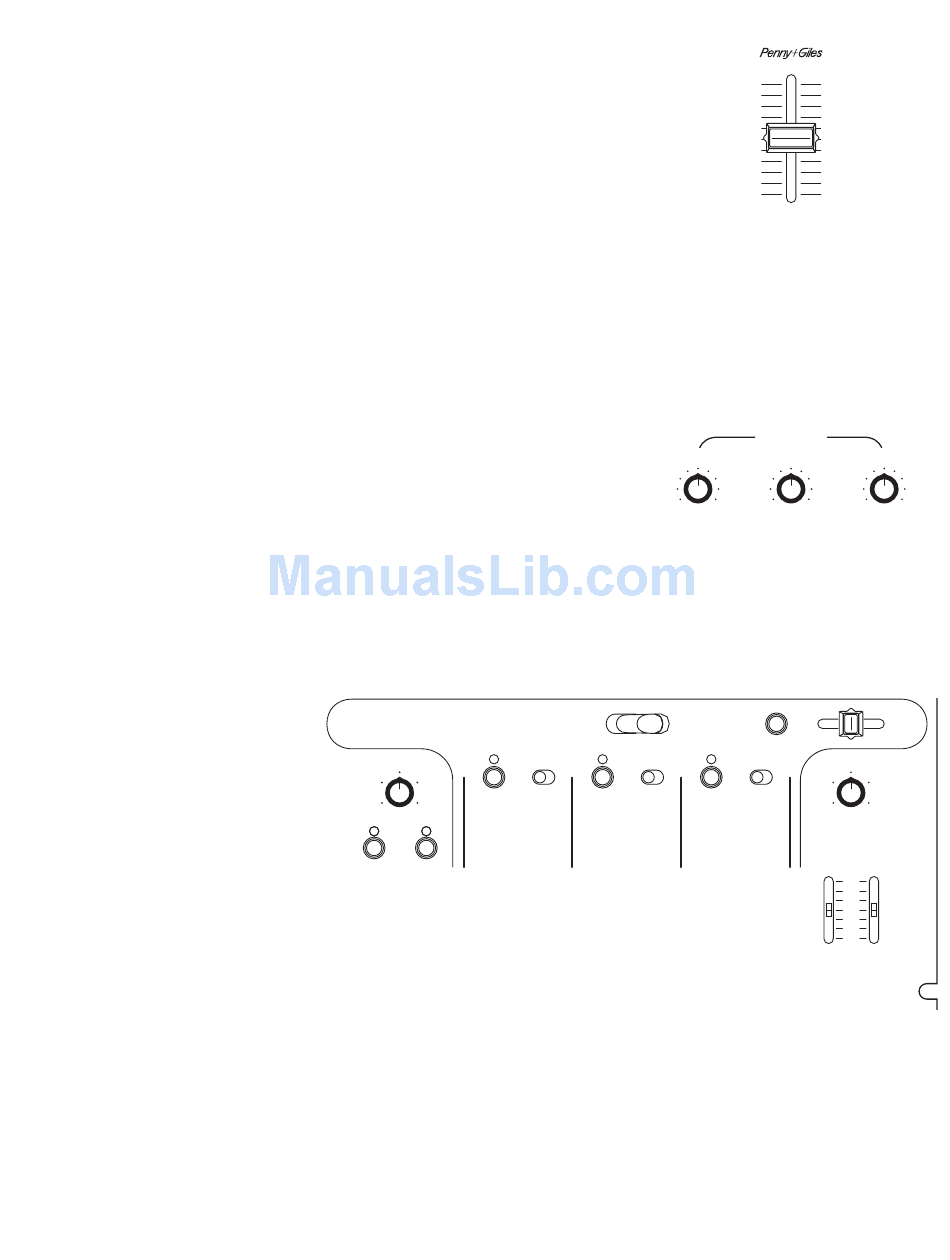

Penny & Giles Faders
• Most respected, highest quality analog faders available:
° Very high performance, long life and low maintenance.
° Excellent Feel.
° Rated for 2 million cycles.
° Two kinds of fader caps are provided with each mixer for different preferences:
° soft rubber caps for smooth mixing.
° hard plastic caps for fast mixing.
• These faders meet the requirements of the most demanding turntablist.
• Caution!
° Do not disrespect your Penny & Giles faders.
° Precision parts deserve proper care.
° Read and follow care instructions:
° Do not spray any lubricant or cleaner in the fader;
The resistive element is cleaned with warm water and lint free cloth.
° Do not spray lubricant on the slide mechanism —
Apply a drop of silicone lubricant directly on rod.
° When in doubt, give Rane a call: 425-355-6000.
° Failure to follow these simple instructions may affect the performance of the pot and will void the warranty.
° See the service and replacement instructions on page Manual-7.
• CONTOUR controls are provided for Input-1 and Input-3 faders.
° Allows any fader response from SLOW smooth fade to FAST cut.
• CONTOUR control provided for the Crossfader.
° Allows any response from SLOW smooth blend to FAST cut.
Advanced Cue selection
• Three position switch allows automatic "Flash-Cue" or individual Cue selection:
° Set switch to "A" to Cue all channels assigned to the A-side of the Crossfader.
° Set switch to "B" to Cue all channels assigned to the B-side of the Crossfader.
° Set switch to center position for manual Cue selection using individual Cue switches.
• Individual Cue switches with green indicators are provided for:
° Input channel-1
° Input channel-2
° Input channel-3
° AUX Input
° FlexFX RETURN

Headphone Monitor

• Headphone monitor source is decided by two controls:
SPLIT CUE switch
CUE / MASTER pan control.
• SPLIT CUE switch "OUT":
CUE / MASTER control pans between stereo Cue selection and stereo Master mix.
• SPLIT CUE switch "IN":
CUE / MASTER control pans between:
mono-Cue in the left channel
and mono-Master in the right channel.
• Headphone LEVEL control determines the loudness.
• Two-band Headphone EQ:
Maximum boost: 12 dB
Maximum cut: -12 dB
Center frequency: 1 kHz.
• 1
/ " (3.5 mm) and ¼" jacks provided.
8
4 6
A
2 8
CUE POST
0 10
AUX IN
CUE
AUX RETURN
1
SLOW FAST
A B SPLIT CUE
CUE
B A B
CUE POST CUE
10 10
8 8
6 6
4 4
2 2
0 0
CONTOUR
3
CROSSFADER
SLOW FAST SLOW FAST
CUE MASTER
4 6
A B
2 8
POST
0 10
LEVEL
PHONES
EQ
+12
8
4
0
-4
-8
-12
LOW HIGH
Manual-3
