Summary of Contents for Konftel 100
- Page 1 User guide Conference phone Konftel 100 English I Español I Français Conference phones for every situation...
- Page 2 This package includes the following items: 1 pc User Guide 1 pc Conference Phone 1 pc Power supply 1 pc Power supply and network cable Please check that the package contains all items listed. If any items are mis8ctus6TE945 your dealer.
-
Page 3: Table Of Contents
Connection, Accessories, Spare Parts Calling Incoming Calls Outgoing Calls Three-way Calls Programming the Flash key Redial Conference Key Volume control, Mute, Tuning, Ring volume Troubleshooting and Maintenance Technical Data Warranty Service FCC Information CSA Information Konftel 100 • User Guide... -
Page 4: Description

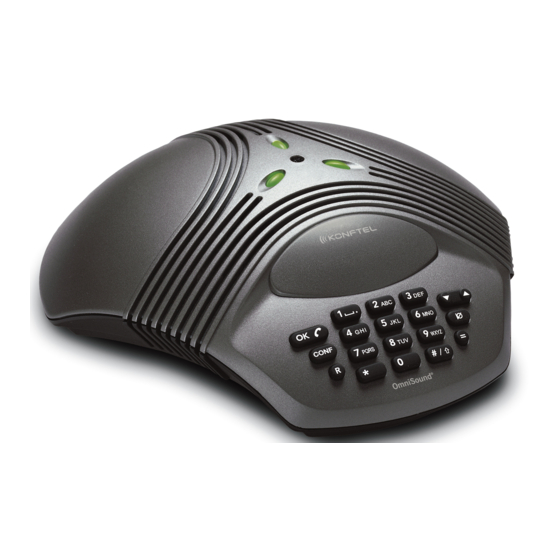

Description Green (on)/red (off) mic indicators Microphone Speakers Keypad Bottom Telephone line input (POTS) Power supply input Keyset OK key Up/Down key Mute/Pause key Conference key Flash key Redial key Konftel 100 • User Guide... -
Page 5: Connection, Accessories, Spare Parts
25 ft 900103340 Extension cable, (7.5 m). analog network, 32 ft (10 m). 840102057 Power supply 120V AC/12 V DC 900103341 Extension cable, power for USA and Canada. and analog network 25 ft (7.5 m). Konftel 100 • User Guide... -
Page 6: Calling
Three-way Calls Note: The availability and function of the Three-way feature can vary from country to country but also depend on the PBX to which the Konftel 100 is connected. We recommend you use a telephone conferencing service to connect more than three locations. If you have questions regarding availability, please contact your dealer. -
Page 7: Programming The Flash Key
If the Flash key does not work The requirements for the operation of the Flash key vary between PBXs and from country to country. Konftel 100 therefore lets you program the F-pulse time so that it works with most PBXs on the market. -
Page 8: Conference Key
Enter your phone conference number with the 0-9... keypad (max 20 digits). If Konftel 100 must wait for a second dial tone, you should insert a pause with the Mute/ Pause key. Press the OK to end and save the number. -
Page 9: Volume Control, Mute, Tuning, Ring Volume
Press again to switch on the microphone. The mic indicators change back to green. Tuning When the Konftel 100 is switched on, the sound automatically adjusts for room size. The Konftel 100 senses the acoustics of the room and adapts continously during the call. For manual tuning, press the Up/Down key at the same time. -
Page 10: Troubleshooting And Maintenance
3. Bypass any extension cables and check whether the system is functioning correctly. If not, contact your dealer. 4. If Konftel 100 must wait for a second dialtone, you should enter a pause with the help of the Mute/Pause button when you programme the number for your phone conference. -
Page 11: Technical Data
Dimensions: Diameter 9 inch (232mm). Weight: 1.5 lbs (700 g). Temperature range: 41–104°F (5–40°C) in operation. Humidity: 20 %–80 % non-condensing. Approvals: FCC Part 68 FCC Part 15 ICES-003 UL60950 CAN/CSA C22.2 Keyboard: 19 keys. Konftel 100 • User Guide... -
Page 12: Warranty
Limited Warranty Konftel warrants to the end user (”Customer”) that this product will be free from defects in workmanship and materials, under normal use and service, for... -
Page 13: Service
Service Service Agreements For information on KONFTEL service agreements, call or email KONFTELs helpdesk: USA and Canada +1-(866)-606-4728 Monday through Friday 8:00 AM to 17:00 PM (GMT:-1) email: konftel.usa@konftel.com International +46-90706489 Monday through Friday 8:00 AM to 17:00 PM (GMT:-1) email: info@konftel.com... -
Page 14: Fcc Information
REN is separately shown on the label.] NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this Konftel 100 does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. -
Page 15: The Fcc Wants You To Know
Lightning damage is not common. Nevertheless, if you live in an area that has severe electrical storms, we suggest that you unplug your phone when storms approach to reduce the possibility of damage. Konftel 100 • User Guide... -
Page 16: Csa Information
The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five. Konftel 100 • User Guide... - Page 17 Konftel is a leading company within loudspeaker communication and audio technology. We develop and sell products and technology for telephone conferences based on cutting-edge expertise within acoustics and digital signal processing. Characteristic of our products is that all conference telephones contain the same high quality audio technology – OmniSound® providing crystal clear sound.
