Fujitsu Port Replicator User Manual

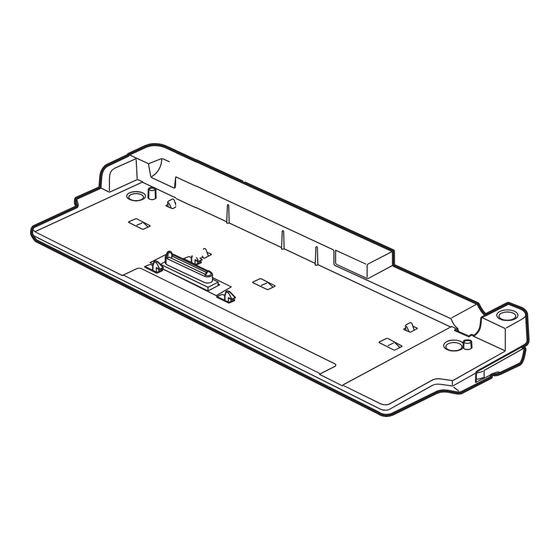

Port replicator for lifebook tablet pc.
Hide thumbs


Advertisement

F u j i t s u A m e r i c a , I n c .
Port Replicator
User's Guide
I N S T R U C T I O N S
The port replicator extends the functionality
of your LIFEBOOK® Tablet PC by
providing ports to connect an external VGA
monitor, a LAN (RJ-45) cable, four USB
2.0 devices, a DVI device, a DisplayPort
device, headphones, and DC power.
The port replicator connects to the bottom
of your LIFEBOOK Tablet PC.
PORT REPLICATOR COMPONENTS
The following is a brief description of the
port replicator's back panel components.
(Figure 1)
Power Button
The power button allows you to power the
port replicator on and off.

Advertisement

   Related Manuals for Fujitsu Port Replicator

   Summary of Contents for Fujitsu Port Replicator

  • Page 1

    LAN (RJ-45) cable, four USB 2.0 devices, a DVI device, a DisplayPort device, headphones, and DC power. The port replicator connects to the bottom of your LIFEBOOK Tablet PC. PORT REPLICATOR COMPONENTS The following is a brief description of the port replicator’s back panel components.

  • Page 2

    Docking Connector Power Button DVI-D Port USB 2.0 Ports (x 4) DisplayPort External VGA Port Headphone Jack LAN (RJ-45) Security Lock Slot DC Power Jack Figure 1. Port replicator back panel...

  • Page 3

    Docking Connector The docking connector allows you to connect the Port Replicator to your LIFE- BOOK Tablet PC. CAUTION HE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY (ESD). T ELECTROSTATIC DISCHARGE O MINIMIZE RISK TO THE COMPONENTS OBSERVE THE FOLLOWING PRECAUTIONS •...

  • Page 4

    • A DVI-D LTHOUGH ISPLAY ORT AND DEVICES ARE SUPPORTED BY THE PORT REPLICATOR ONLY ONE CAN BE USED AT ANY TIME INTERNAL SWITCH RECOGNIZES WHICH TYPE OF DEVICE IS CONNECTED F BOTH ARE CONNECTED AT THE SAME TIME ISPLAY HAS THE HIGHER PRIORITY •...

  • Page 5

    External VGA Port The external VGA port lets you connect an external monitor or projector. Note that if a Port Replicator is attached, you must use the external VGA port on the Port Replicator, not the one on your system.

  • Page 6

    ATTACHING PORT REPLICATOR To attach the Port Replicator, align the Port Replicator connector on the bottom of your Tablet PC with the connector on the Port Replicator and push the corners down simul- (Figure 2) taneously. Docking Connector Figure 2. Attaching Port Replicator...

  • Page 7

    Release Latch Figure 3. Unlatching Figure 4. Removing...

  • Page 8

    Web site at: http://us.fujitsu.com/computers For technical support call:1-800-8fujitsu (1-800-838-5487) Fujitsu, the Fujitsu logo, and LIFEBOOK are regis- tered trademarks of Fujitsu, Ltd. All other trade- marks mentioned herein are the property of their respective owners. Fujitsu America, Inc. n has made every effort to ensure the accuracy and completeness of this document.
