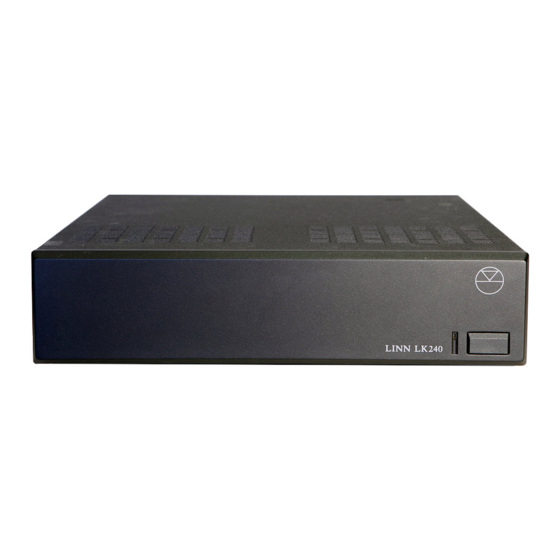

- Page 1 LINN LK240 S I N G L E S P E A K E R P O W E R A M P L I F I E R O W N E R S M A N U A L...
-
Page 2: Important Safety Information
Important safety information Explanation of symbols used in this manual and on the product: This symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the enclosure of sufficient magnitude to cause electric shock. This symbol is intended to alert the user to the presence of important maintenance and servicing information in the instruction and service manuals. - Page 3 GENERAL SAFETY INSTRUCTIONS Read instructions. Read the safety and operating instructions before operating the appliance. Retain instructions. Retain the safety and operating instructions for future reference. Heed warnings. Observe all warnings on the appliance and in the operating instructions. Follow instructions. Follow all operating and use instructions. Water and moisture.
- Page 4 18. Objects and liquid entry. Take care not to let objects or liquids fall into the product. 19. Damage requiring service. The product should be serviced by qualified personnel if: a) The power cord or plug has been damaged. b) Objects or liquid have fallen into the product. c) The product has been exposed to rain.
- Page 5 Copyright and acknowledgements Copyright © Linn Products Limited. Linn Products Limited, Floors Road, Waterfoot, Glasgow, G76 0EP, Scotland, United Kingdom. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of the publisher.
-
Page 6: Table Of Contents
Contents Introduction........1 The LK240 and music........2 Setting up the LK240........5 Unpacking........5 Positioning ........7 Connecting........8 Operation........9 Protection........10 Guarantee and service........11 Technical information........12 Specifications........12 Index........13... -
Page 8: Introduction
To do that, you need to know exactly how to get the best out of your LK240 and that is what this manual is all about. In the next few pages you will find out everything you need to know about how to set up the LK240, and how to use it to get the best possible results. -
Page 9: The Lk240 And Music
This enables it to be left on with minimum power consumption. An indicator light on the front panel remains red when the LK240 is in standby and green when it is powered up, telling you at a glance the operational status of the LK240. - Page 10 The LK240 provides two input sockets to make it easy to daisy chain multi-amplifier systems, allowing you to boost the output power of your system, or take advantage or bi-amping and tri-amping. Loudspeakers can be bi-wired, or tri-wired to the LK240 by the use of the four loudspeaker sockets to obtain even higher sound quality.
- Page 11 To further enhance performance, you can use two or three LK240s to bi-amp or tri-amp to the loudspeakers, each LK240 driving the bass, midrange, and treble signals separately. When bi-amping or tri-amping the highest possible performance can be obtained by removing the passive crossover units from the loudspeaker and fitting active crossover modules to the LK240 to accurately divide the signal into the appropriate frequency bands.
-
Page 12: Setting Up The Lk240
Setting up the LK240 This chapter explains how to unpack your Linn LK240 Single Speaker Power Amplifier, and how to install it with your other hi-fi components. Unpacking Before connecting the LK240 to the mains supply, you should check the following: •... - Page 13 Selecting the correct voltage The LK240 is factory-set for a 230 volts mains supply and must not be connected to a mains supply before it is adjusted for your local voltage. To do this, slide the red voltage switch at the back of the unit until the appropriate voltage is displayed.
-
Page 14: Positioning
As the colours of the wires in the mains lead of the LK240 may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: Connect this wire To the terminal Green and yellow Marked with the letter E, or by the earth symbol, or coloured green or green and yellow. -
Page 15: Connecting
SPARE SENSITIVITY Connecting the mains supply Connect the LK240 to a mains supply using the mains cord supplied. Note that the LK240 should be switched off before connecting or disconnecting the plug on the rear panel, or you may generate surges which could damage other components in your hi-fi system. -
Page 16: Operation
If American, the socket will be suitable for banana type connectors. Operation To turn on the LK240 amplifier, press the power switch on the front panel. Signal detector sensitivity The LK240 uses signal sense circuitry to detect the presence of an audio input signal. -
Page 17: Protection
Refer to the section Positioning , page 7. If the LK240 is overloaded it will power down, and the indicator light on the front panel will flash green and red. Turn the LK240 off and check the loads you are applying to it. -
Page 18: Guarantee And Service
Guarantee and service This product is guaranteed under the conditions which apply in the country of purchase. In addition to any statutory rights the customer may have, we undertake to replace any parts which have failed due to faulty manufacture. To help us, please ask your Linn retailer about the Linn warranty scheme in operation in your country. -
Page 19: Technical Information
Technical information Specifications Power supplies Fully regulated dual design Output power 125W per channel into 8 (230 Vac mains) 240W per channel into 4 Input signal for 1.15V rms maximum output Maximum output 31V rms voltage Gain x27 (28.6dB) Input impedance 4700 Frequency response (-3dB) 2Hz–50kHz... -
Page 20: Index
Index acknowledgements iv LK240 and music 2 active crossover modules 4 active playback 4 audio input, connecting 8 mains lead wiring 6 mains plugs i mains supply, connecting 8 bi-amping 4 bi-wiring 3, 9 operation 9 overheating 7, 10 connections 8... - Page 21 specifications 12 standby mode 2, 9 unpacking 5 technical information 12 voltage selection 6 temperature, maximum 10 tri-amping 4 tri-wiring 3, 9...
