PRODUCT DESCRIPTION
PACKAGE CONTENT
 1* 802.11n SOHO Router (ESR-9250)
 1* 12V/1A Power Adapter
 1*QIG
 1*CD (User's Manual)
> HARDWARE SPECIFICATIONS
MCU
Memory
Flash
PCB dimension
Physical Interface
LEDs Status
Power Requirements
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput may vary.
Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice.
ERB9250
802.11b/g/n Range Extender
2.4 GHz
ERB9250 is a 2.4GHz 802.11b/g/n 300Mbps Repeater & Client Bridge (Range Booster / Extender).
Range Extender solves the signal attenuation (limited coverage) problem by literally repeating /
extending AP radio signal to dead-spots. While repeater clones AP and serves as a subsidiary
entity to its clients, client bride offers an extension of wired network to the AP.
Technical Specifications
RT3052, 384MHz embedded RF/MAC/BBP
32MB SDRAM
4MB
100mm * 90mm
Ethernet: One 10/100 Fast Ethernet RJ-45
Rest button
Power Jack
Power Status
LAN (Internet connection)
WLAN(Wireless connection)
Power Supply: 200 to 240 VDC ± 10％ (ETSI) 100 to 120 VDC ± 10％ (FCC)
Device: 12V/1A
300Mbps
11N Repeater/Client Bridge
10/8/2009

Advertisement

loading

Related Manuals for EnGenius ERB9250

Summary of Contents for EnGenius ERB9250

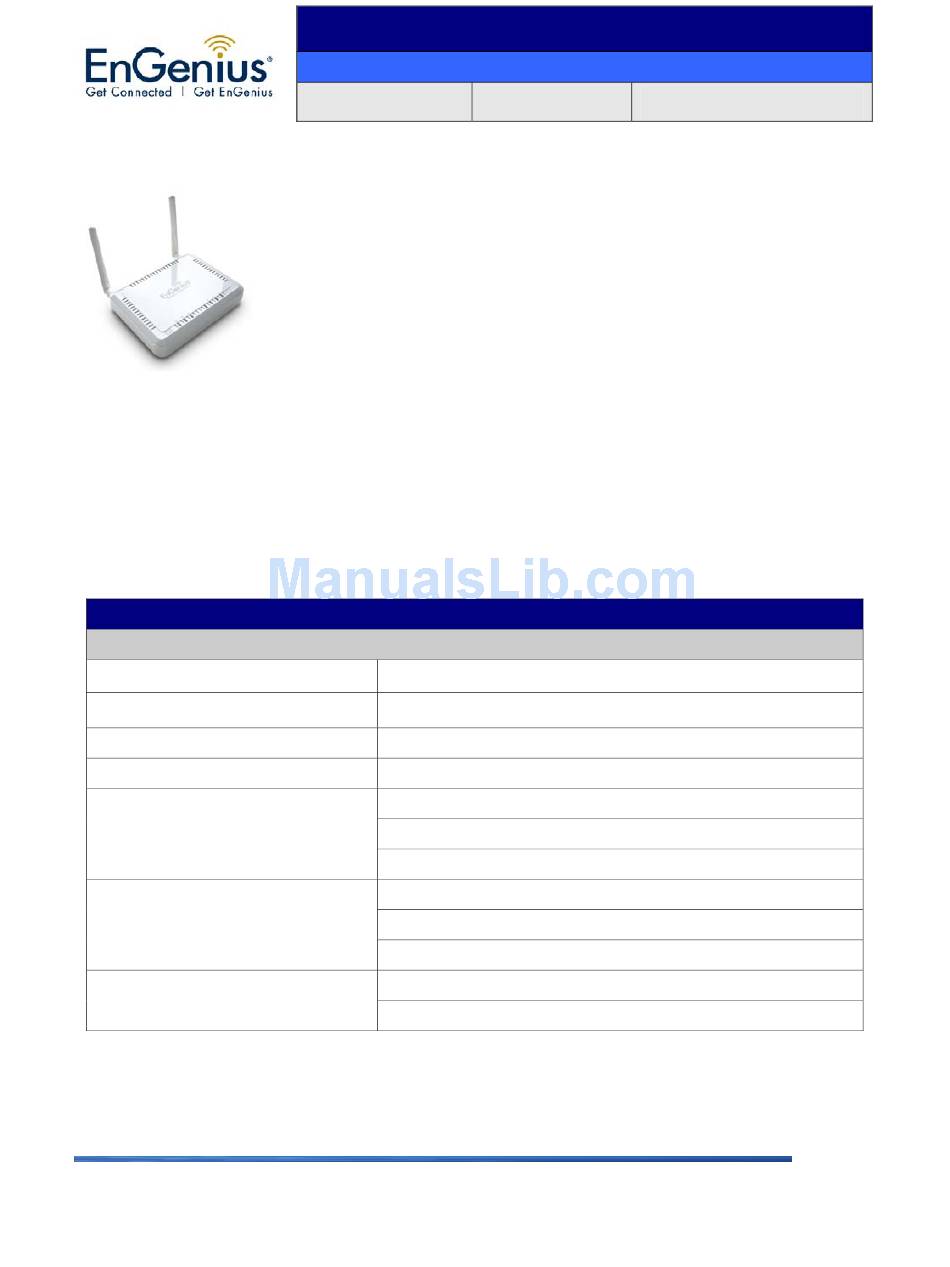

  • Page 1 11N Repeater/Client Bridge PRODUCT DESCRIPTION ERB9250 is a 2.4GHz 802.11b/g/n 300Mbps Repeater & Client Bridge (Range Booster / Extender). Range Extender solves the signal attenuation (limited coverage) problem by literally repeating / extending AP radio signal to dead-spots. While repeater clones AP and serves as a subsidiary entity to its clients, client bride offers an extension of wired network to the AP.
